Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the nearest outer tail lamp. Refer to TAIL LAMP REPLACEMENT .

    Access the sidemarker lamp through the tail lamp opening.

  2. Remove the sidemarker lamp socket from the sidemarker lamp assembly by rotating the socket counterclockwise.
  3. Remove the bulb from the socket.

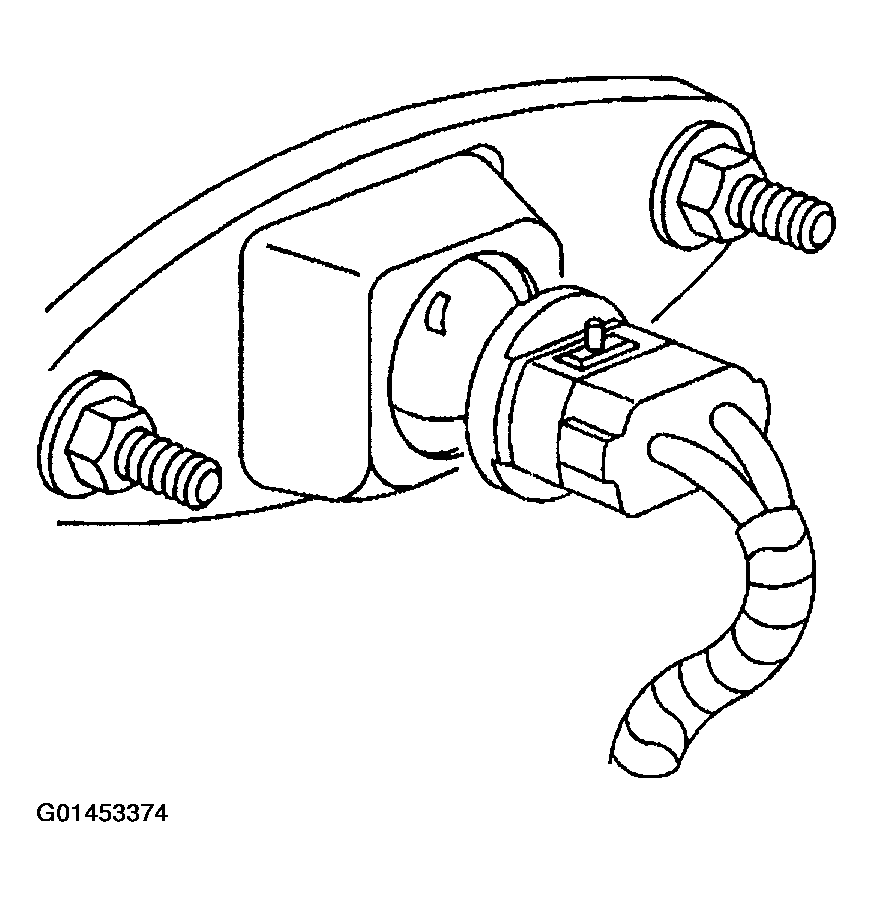

    Fig 1: Sidemarker Lamp Socket
    G01453374Courtesy of GENERAL MOTORS CORP.
