Headlamp Opening Door Adjustment
WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the headlamp opening door. Refer to HEADLAMP OPENING DOOR REPLACEMENT .
- For horizontal adjustment:

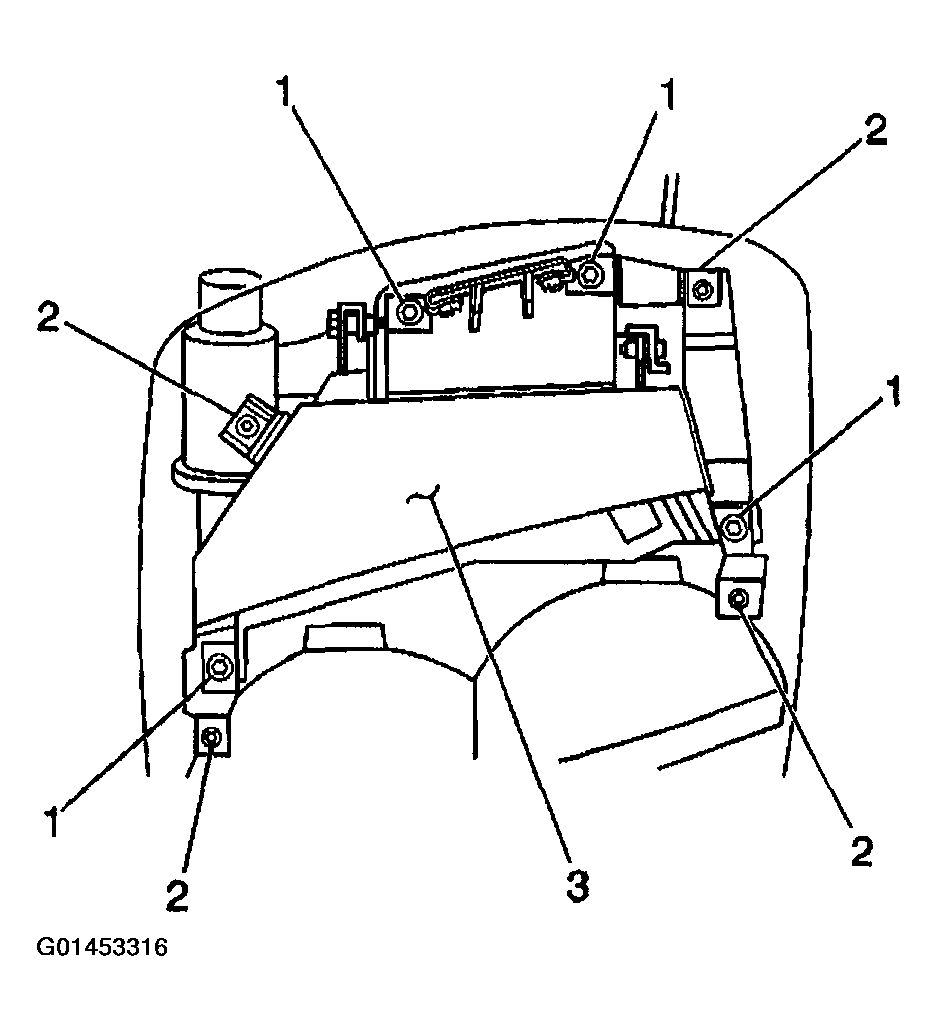

- Loosen the headlamp intermediate bracket to headlamp assembly screws (1).
- Adjust the position of the headlamp intermediate bracket (3) as required and retighten the retaining screws (1).
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.Tighten
Tighten the headlamp intermediate bracket screws to 2 N.m (18 lb in).
- For vertical adjustment:
Tighten (to lower) or loosen (to raise) the vertical adjusting screws (2) as needed.
- For headlamp opening door stop position adjustment, if necessary:
Tighten or loosen the door stop adjustment screw as needed.
- Install the headlamp opening door. Refer to HEADLAMP OPENING DOOR REPLACEMENT .
- Inspect the fit of the headlamp opening door to the hood, the fender and the front fascia.
- If the fit of the headlamp opening door is unsatisfactory, repeat steps 2 through 7 .
