Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the appropriate headlamp assembly from the vehicle. Refer to HEADLAMP REPLACEMENT .
  2. Disconnect the headlamp wiring harness electrical connectors from the headlamp bulb/sockets.

    Important:  Note the linkage-to-motor relationship for reassembly.

  3. Remove the headlamp assembly pivot arm to the headlamp motor/actuator nut.
  4. Remove the bolts from headlamp motor/actuator.
  5. Remove the headlamp motor/actuator from the headlamp.

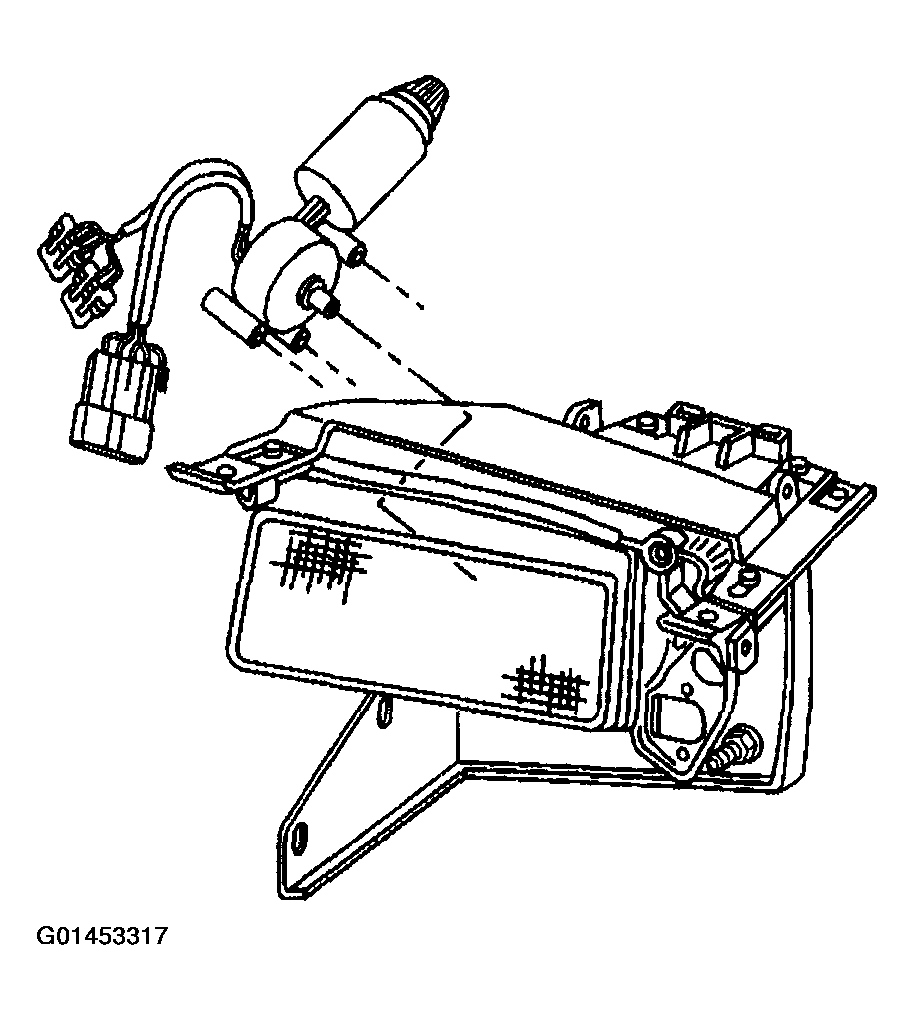

    Fig 1: Removing Headlamp Motor/Actuator From Headlamp
    G01453317Courtesy of GENERAL MOTORS CORP.
