Symptom List

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Refer to a symptom diagnostic procedure from the following list in order to diagnose the symptom:

See Fig 1
See Fig 2
See Fig 4
See Fig 5
See Fig 6
See Fig 7
See Fig 8
See Fig 10
See Fig 11
See Fig 12
See Fig 17
See Fig 15
See Fig 19
See Fig 20
See Fig 21
See Fig 23
See Fig 24
See Fig 26
See Fig 27
See Fig 28
See Fig 30
See Fig 31
See Fig 32

Fig 1: Backup Lamps Always On
Courtesy of GENERAL MOTORS CORP.

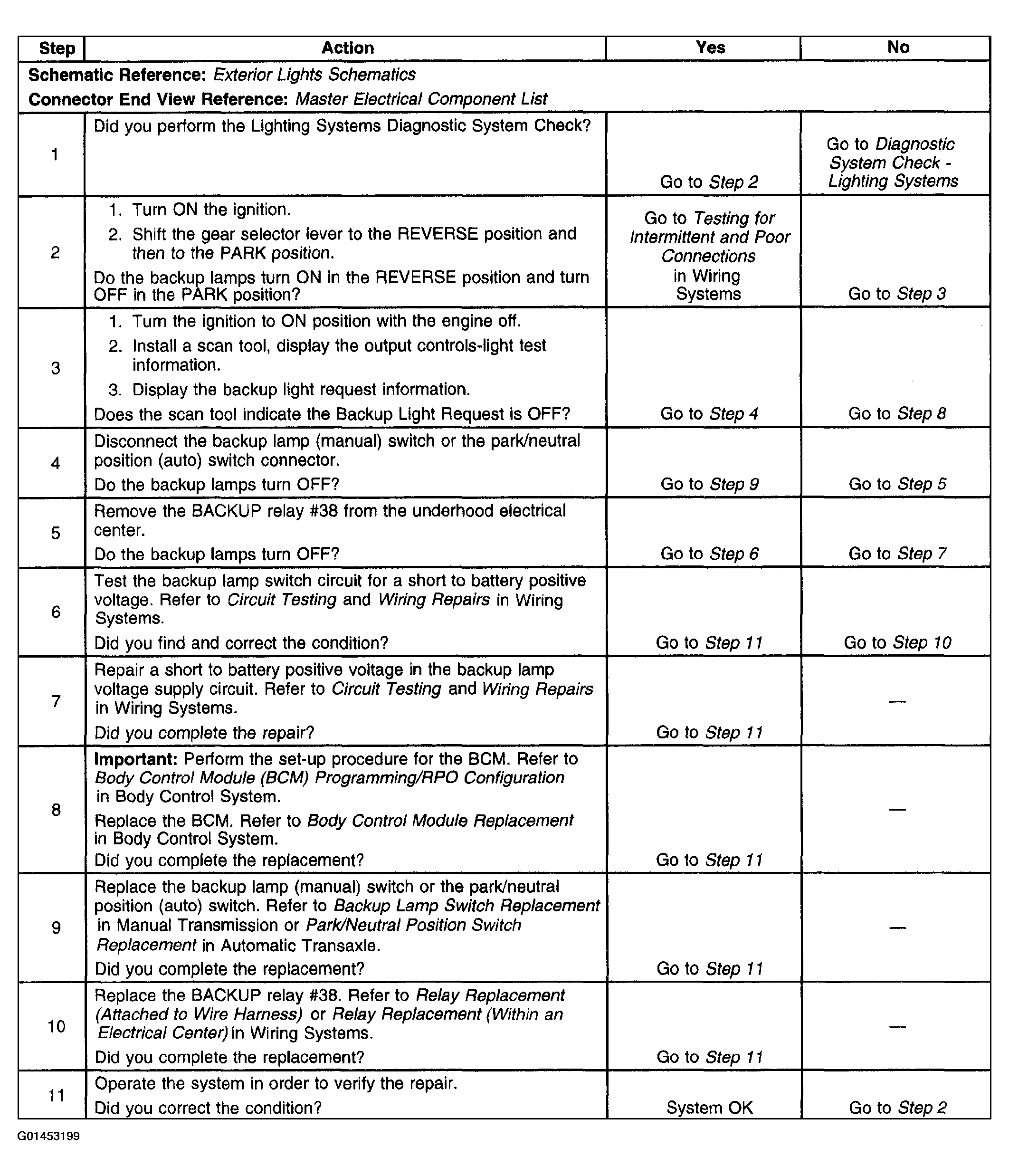

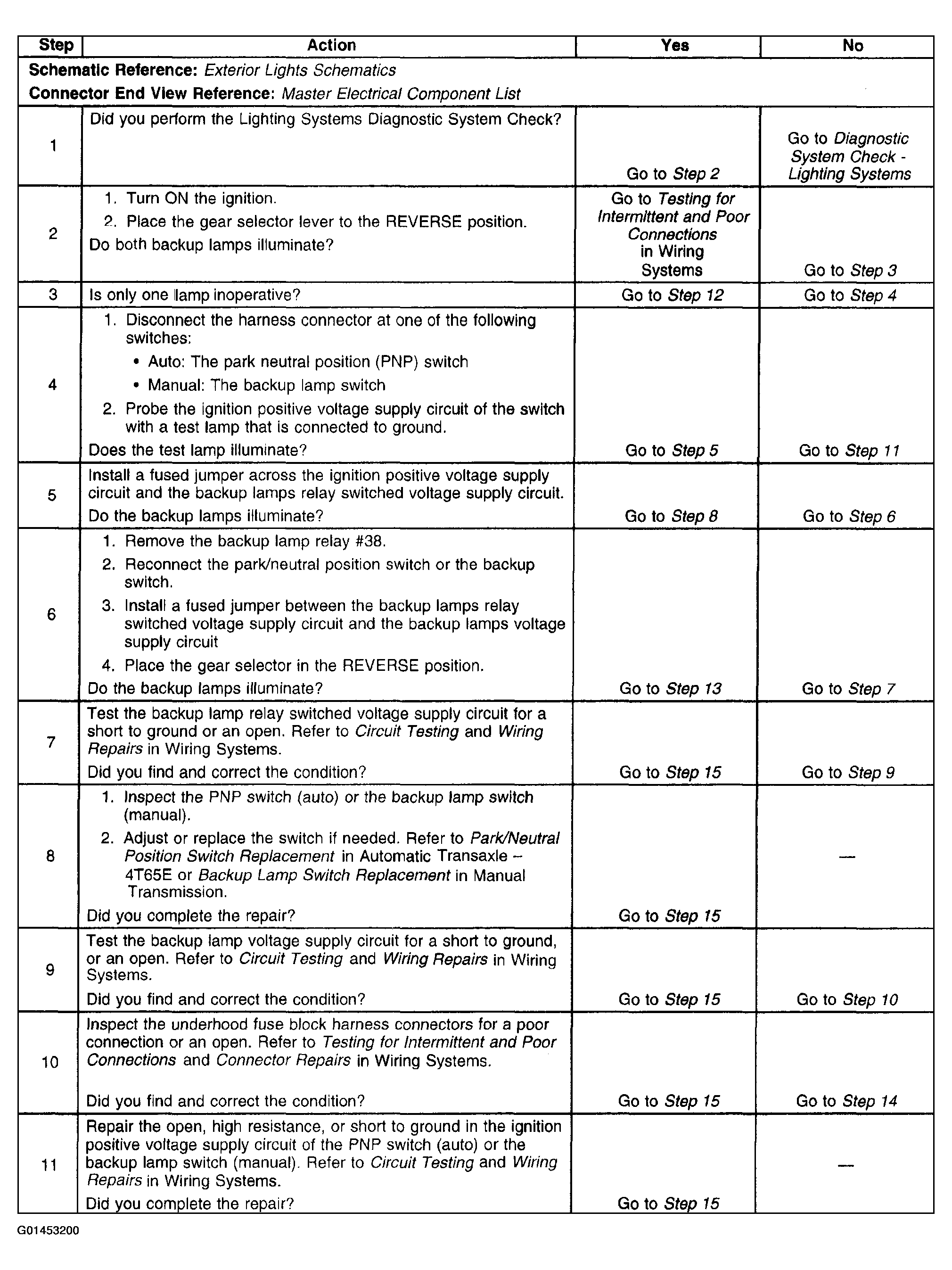

Fig 2: Backup Lamps Inoperative (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

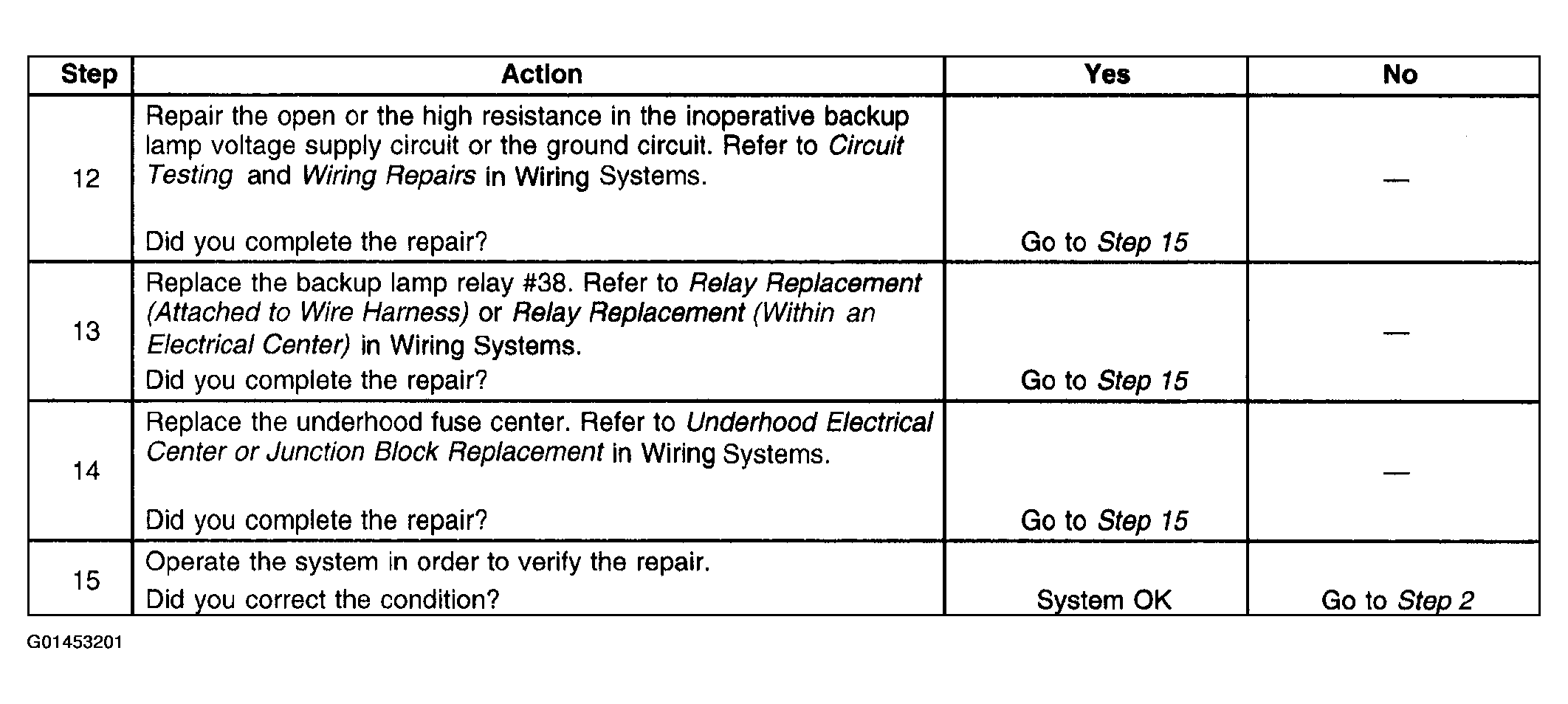

Fig 3: Backup Lamps Inoperative (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

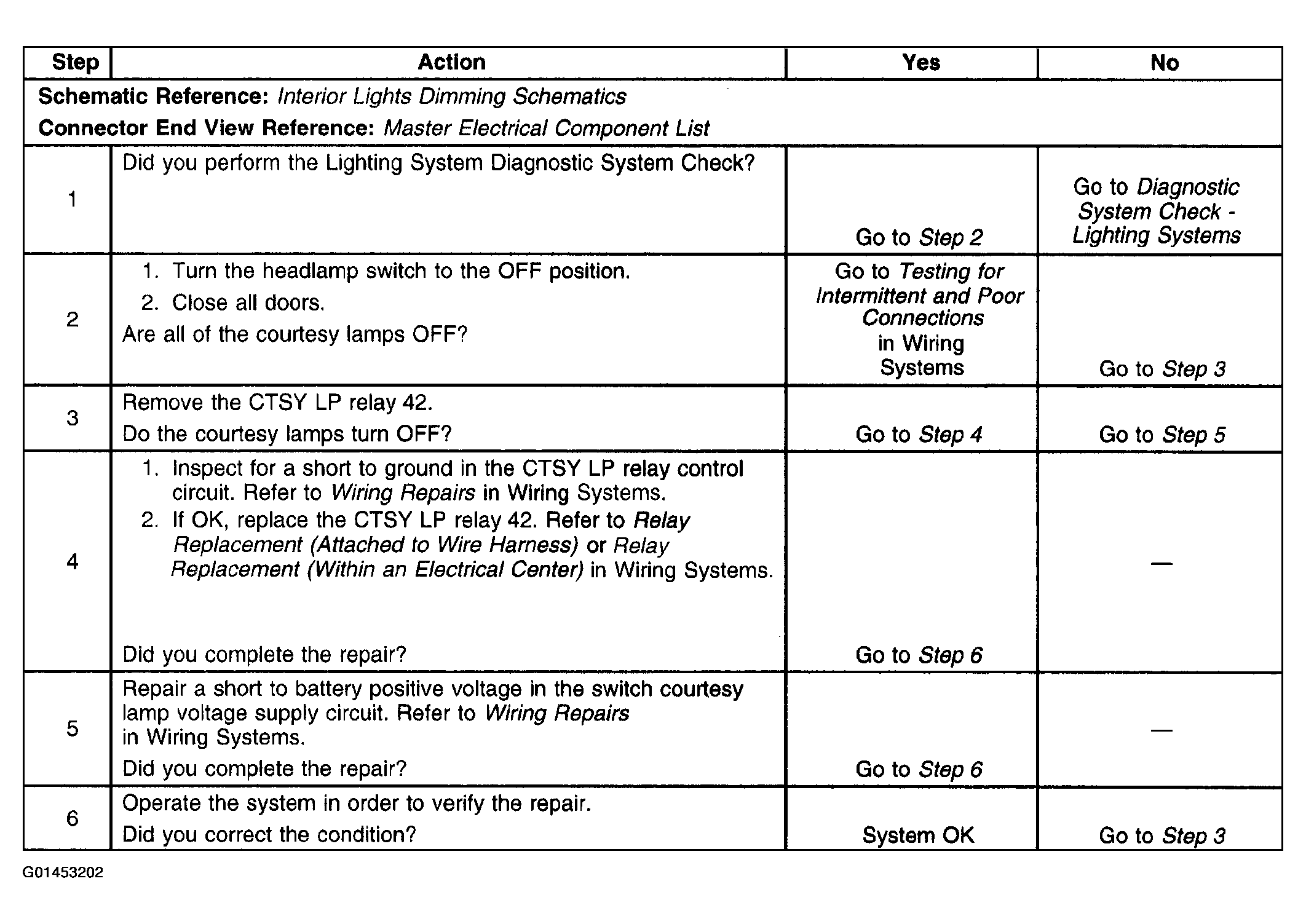

Fig 4: Courtesy Lamps Always On
Courtesy of GENERAL MOTORS CORP.

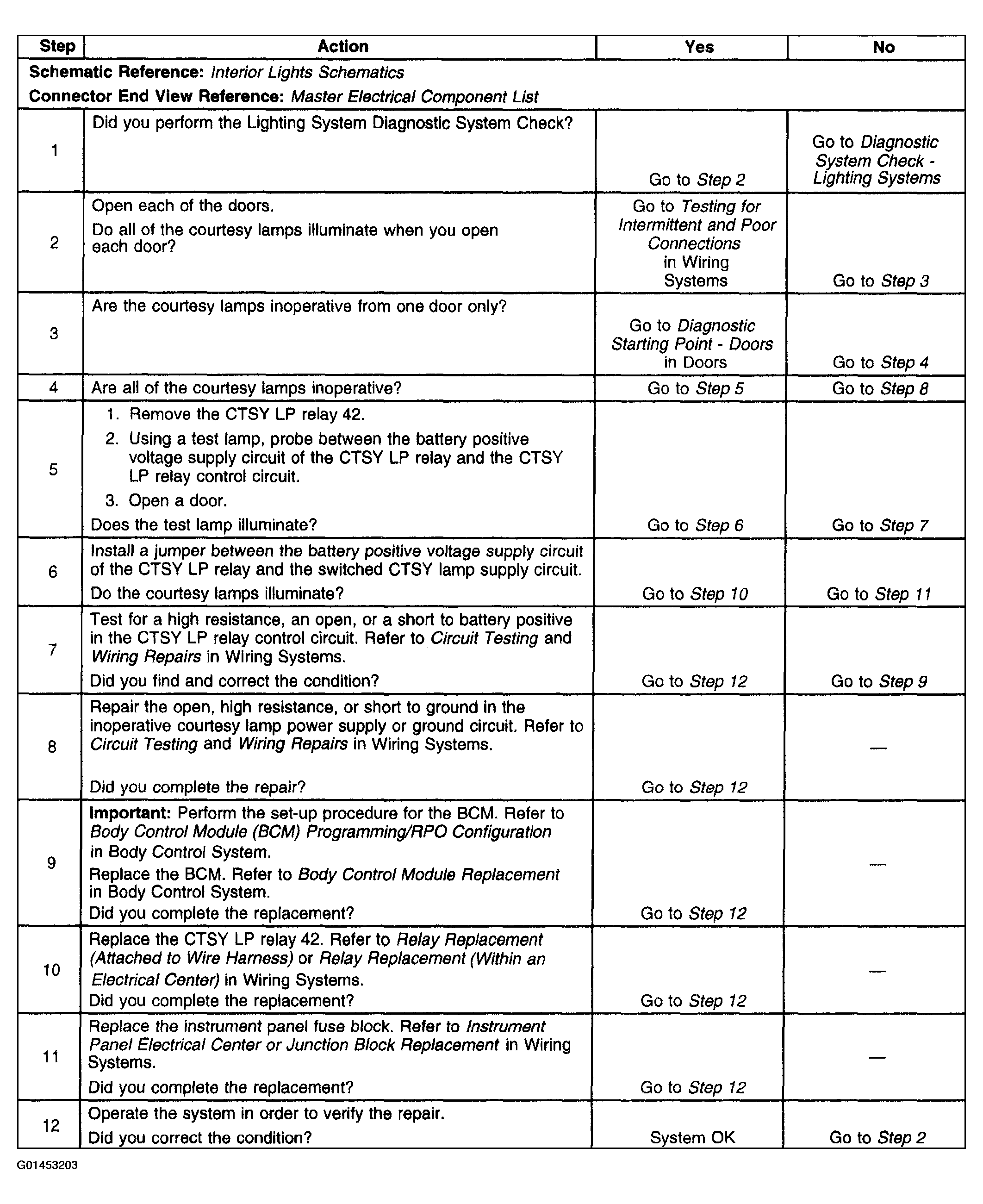

Fig 5: Courtesy Lamps Inoperative
Courtesy of GENERAL MOTORS CORP.

Fig 6: Fog Lamp Indicator Inoperative
Courtesy of GENERAL MOTORS CORP.

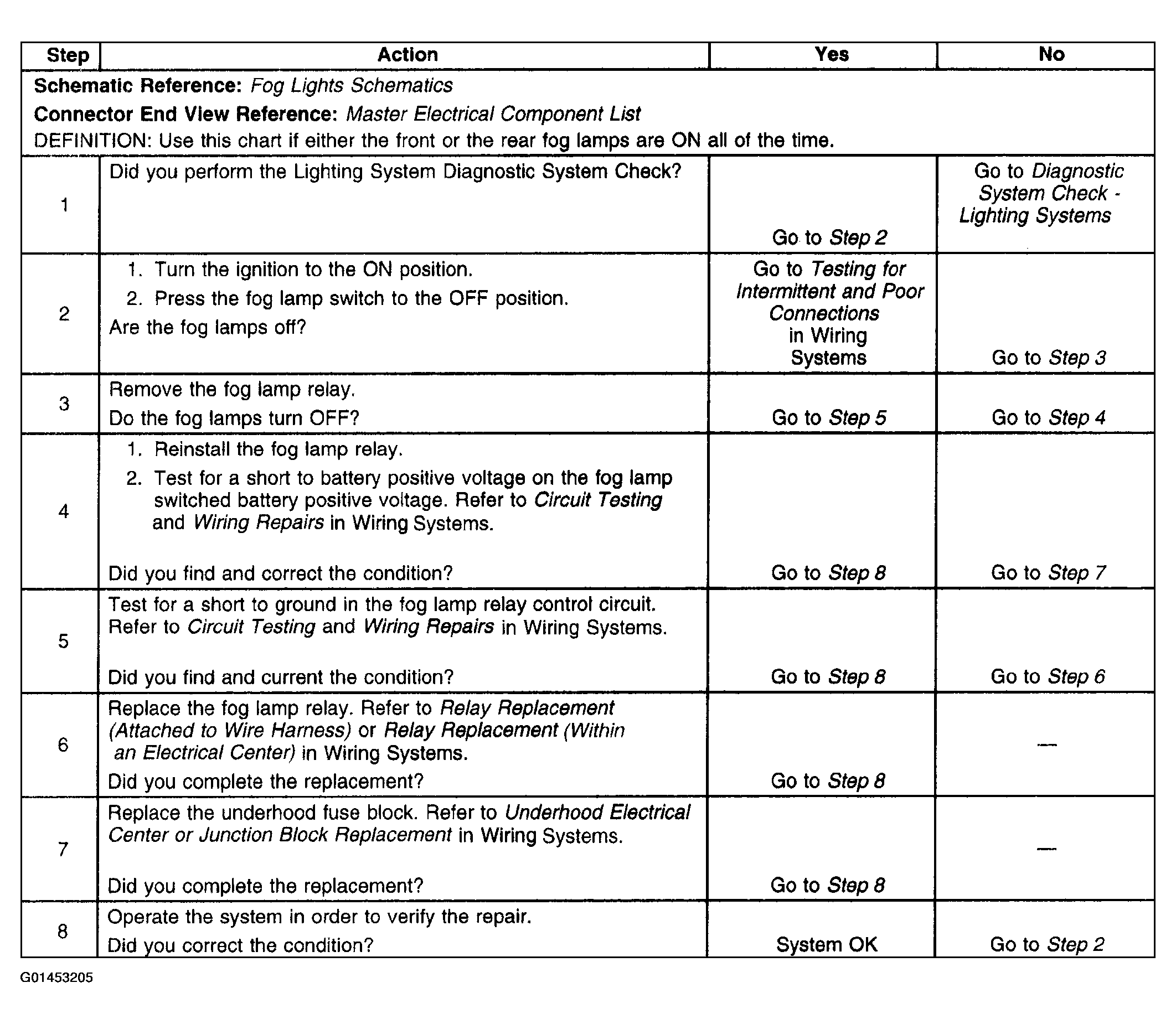

Fig 7: Fog Lamps Always On
Courtesy of GENERAL MOTORS CORP.

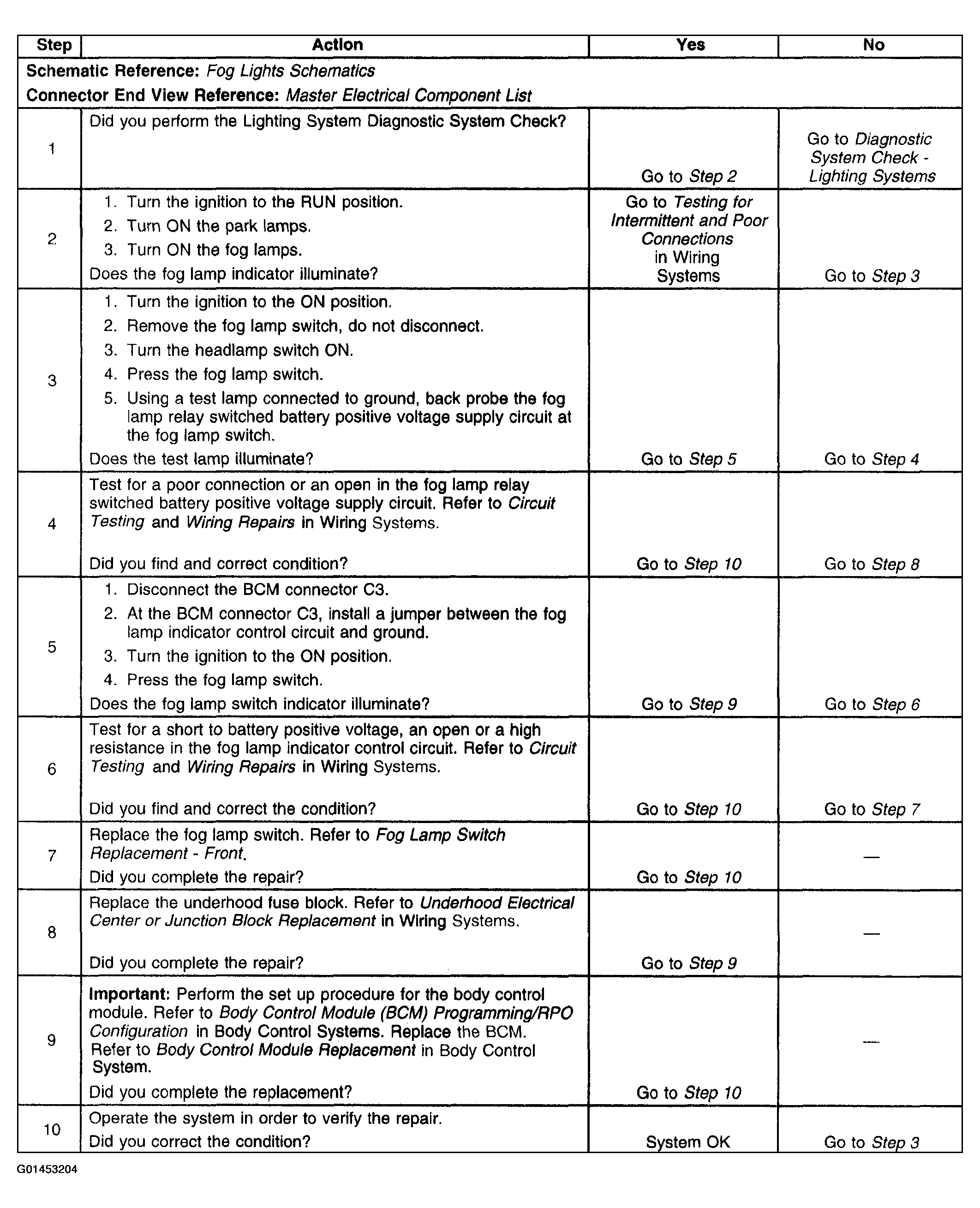

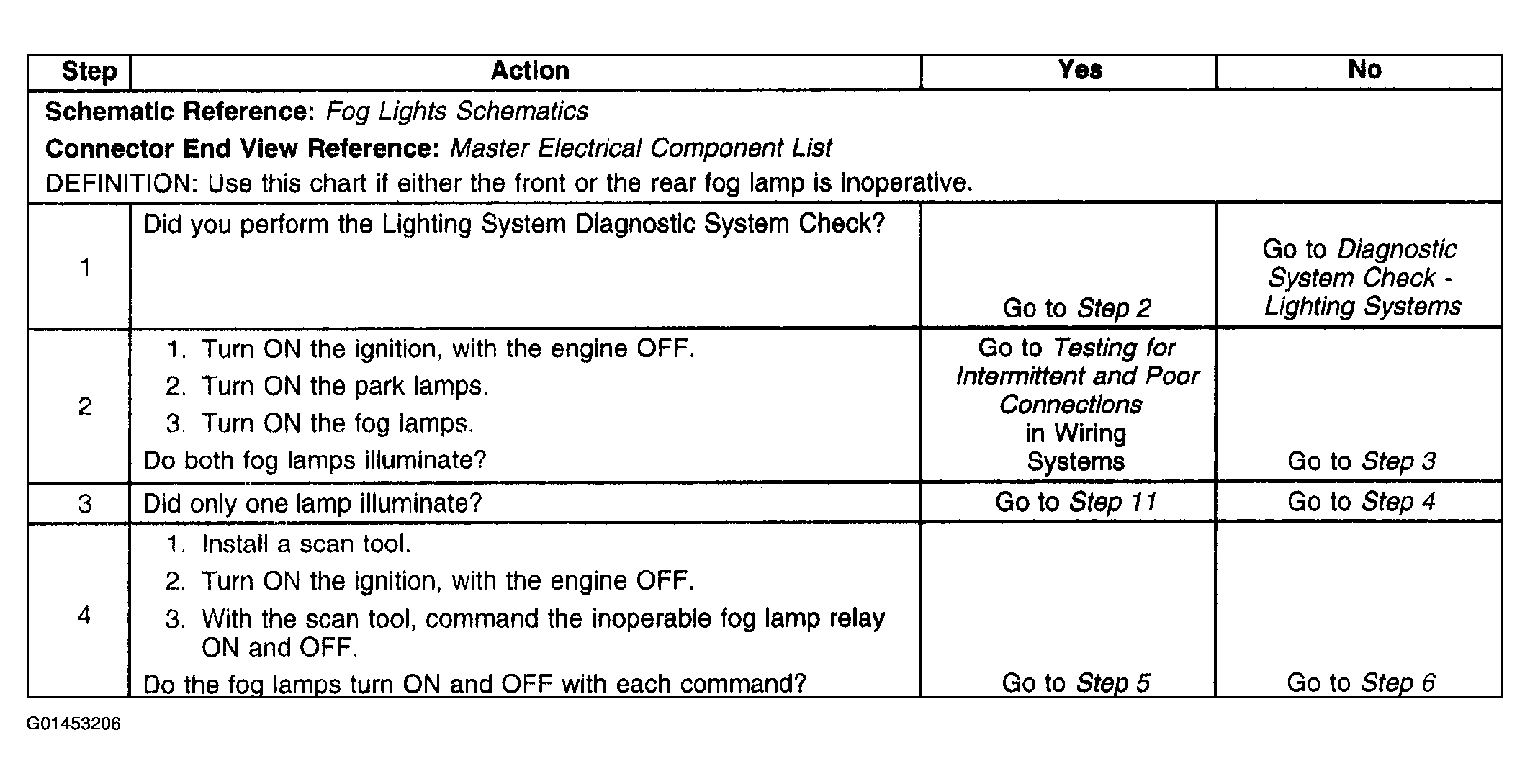

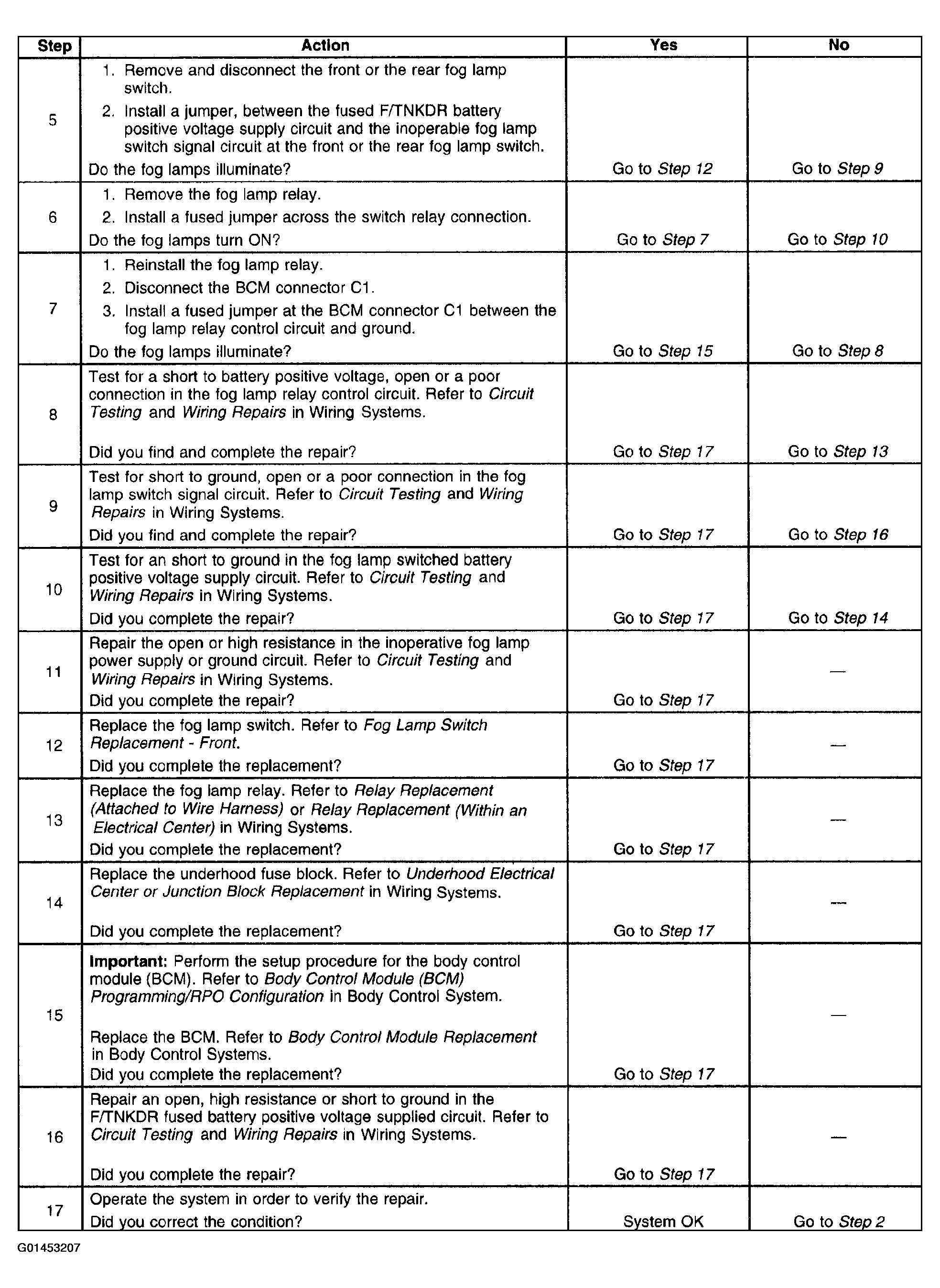

Fig 8: Fog Lamps Inoperative (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

Fig 9: Fog Lamps Inoperative (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

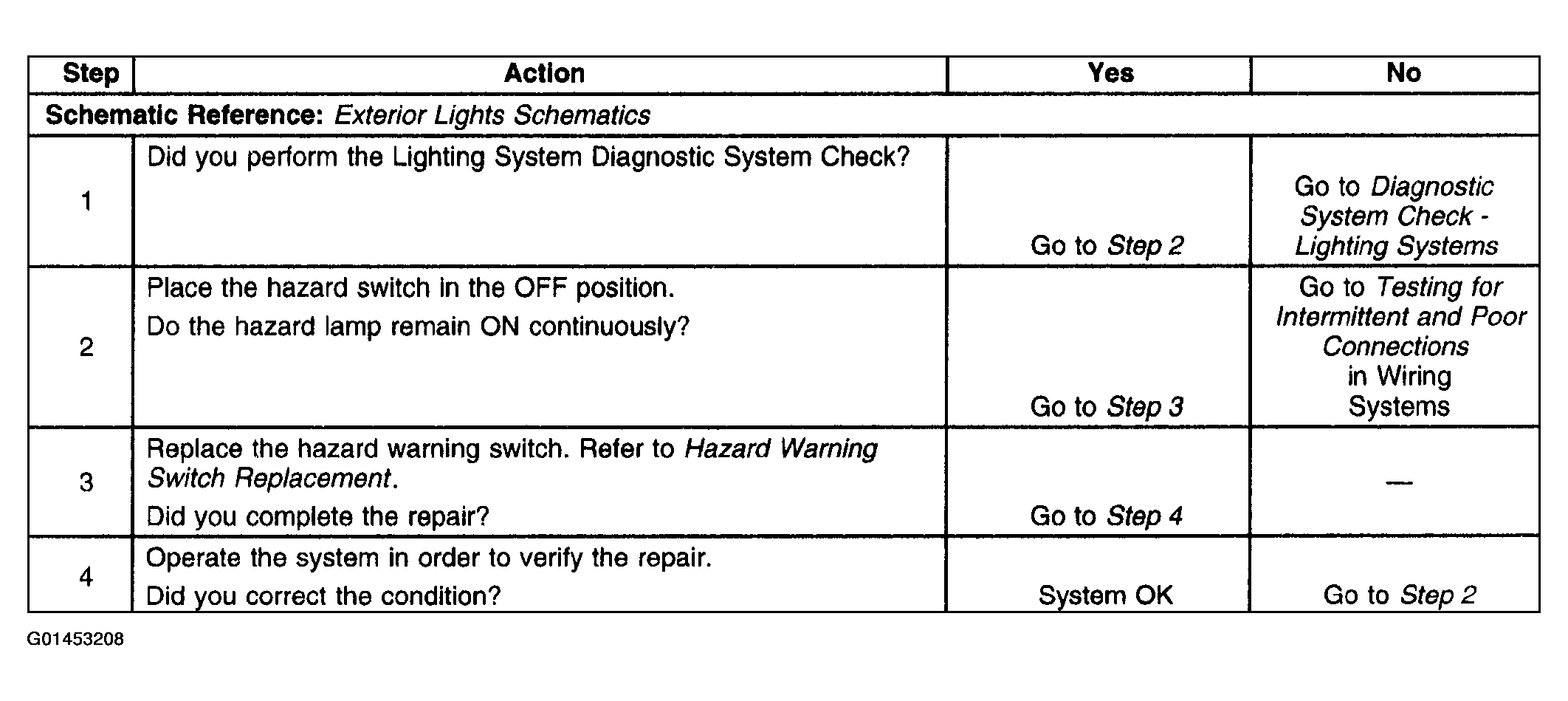

Fig 10: Hazard Lamps Always On
Courtesy of GENERAL MOTORS CORP.

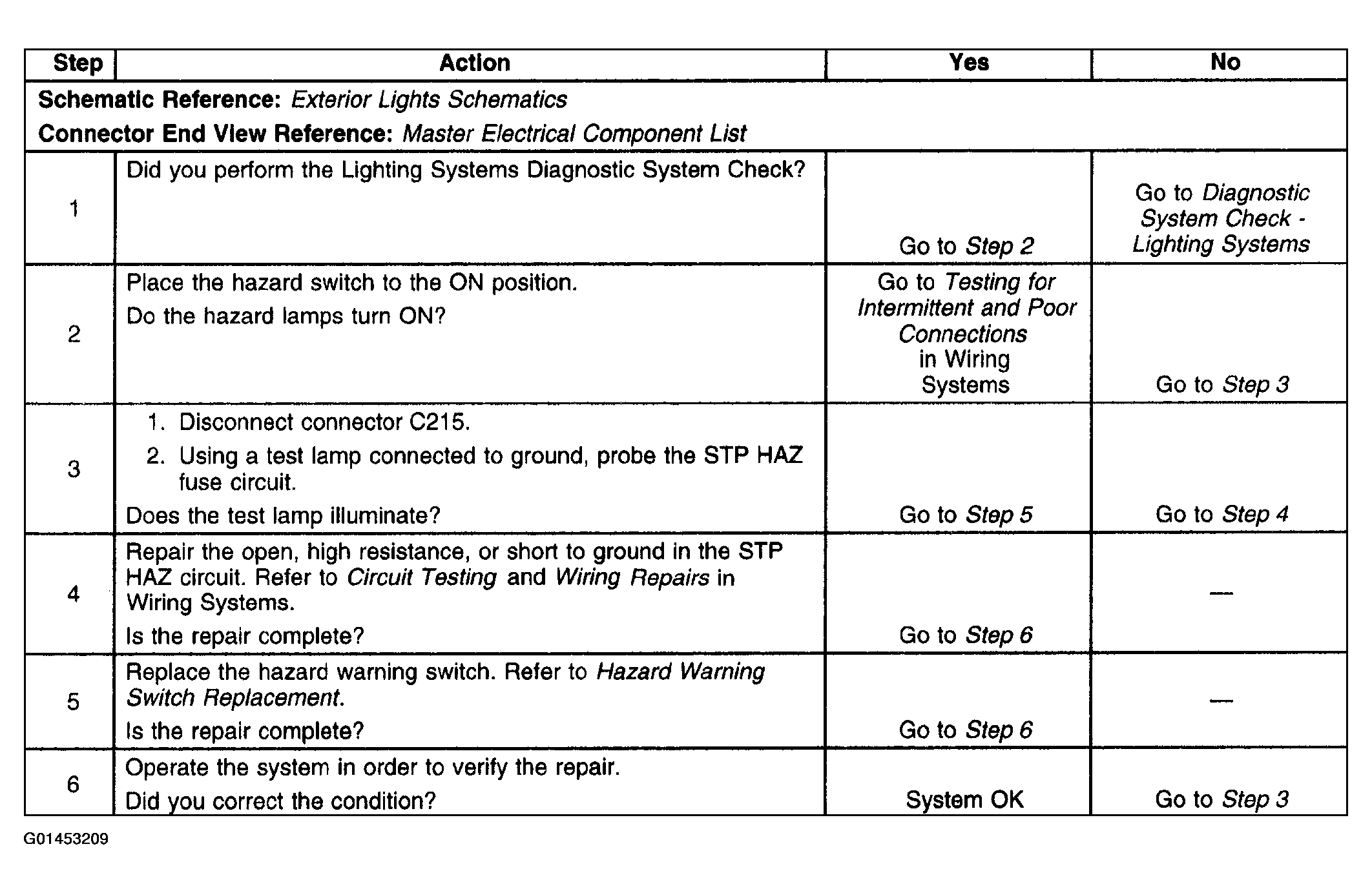

Fig 11: Hazard Lamps Inoperative
Courtesy of GENERAL MOTORS CORP.

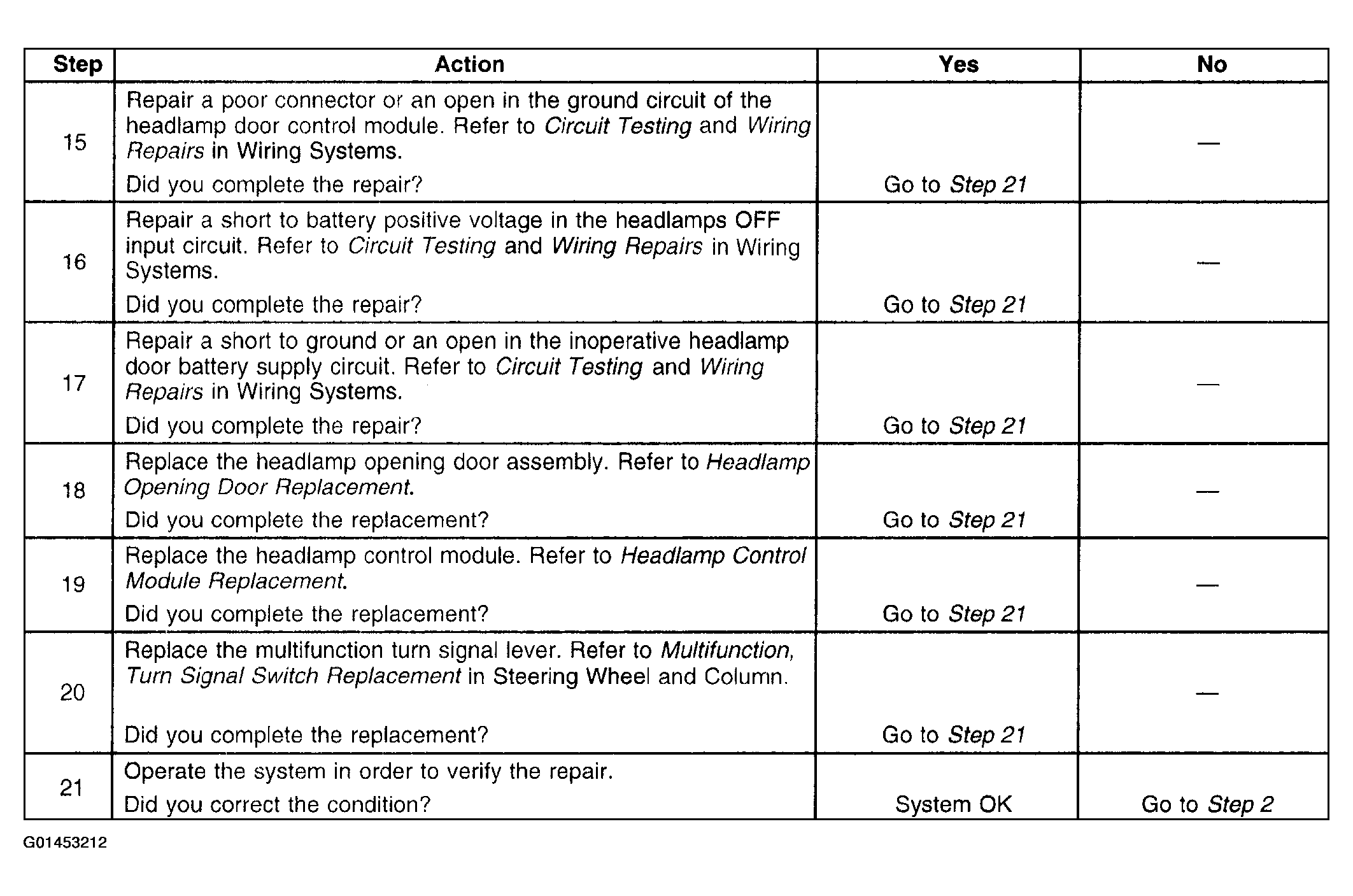

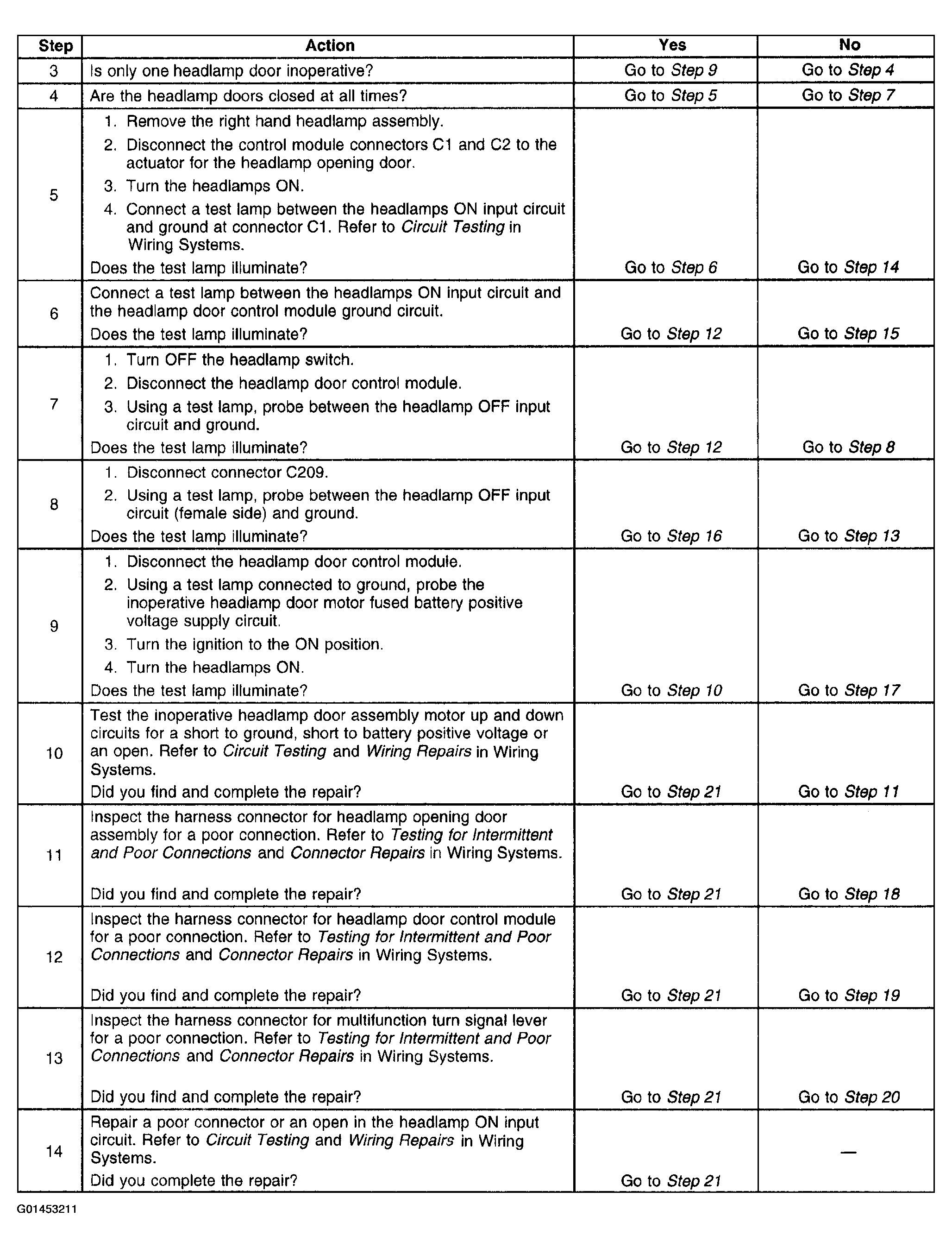

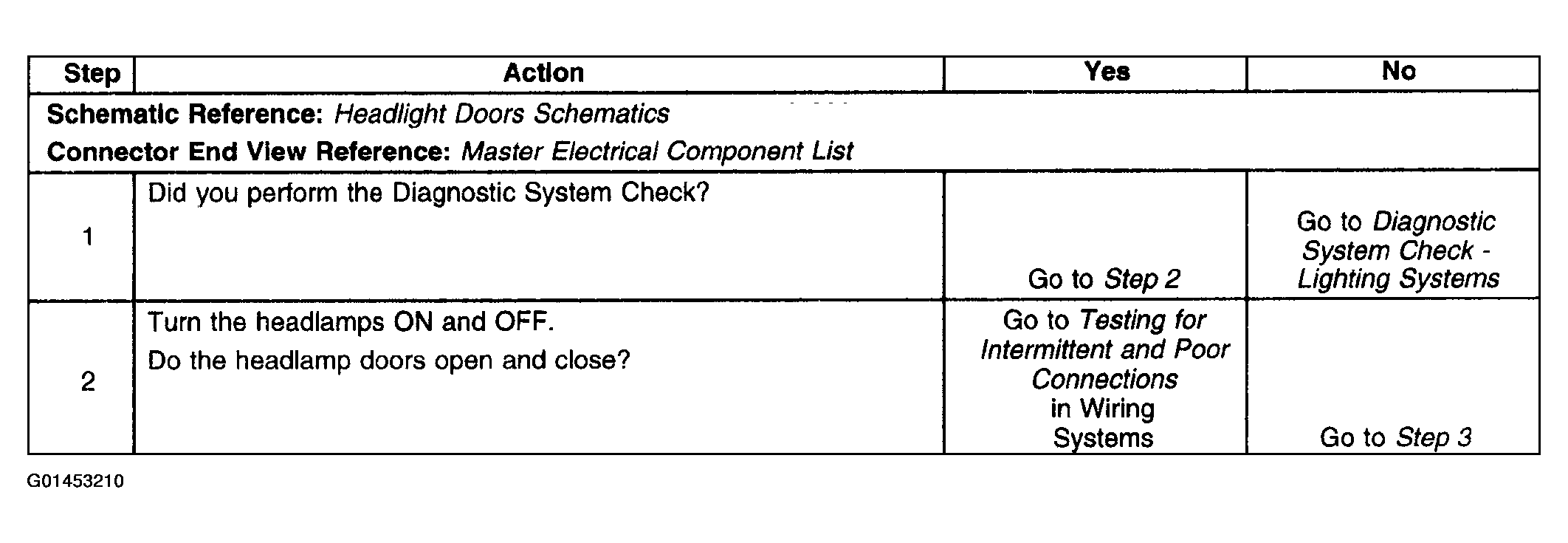

Fig 12: Headlamp Door(s) Inoperative (1 Of 3)
Courtesy of GENERAL MOTORS CORP.

Fig 13: Headlamp Door(s) Inoperative (2 Of 3)
Courtesy of GENERAL MOTORS CORP.

Fig 14: Headlamp Door(s) Inoperative (3 Of 3)
Courtesy of GENERAL MOTORS CORP.

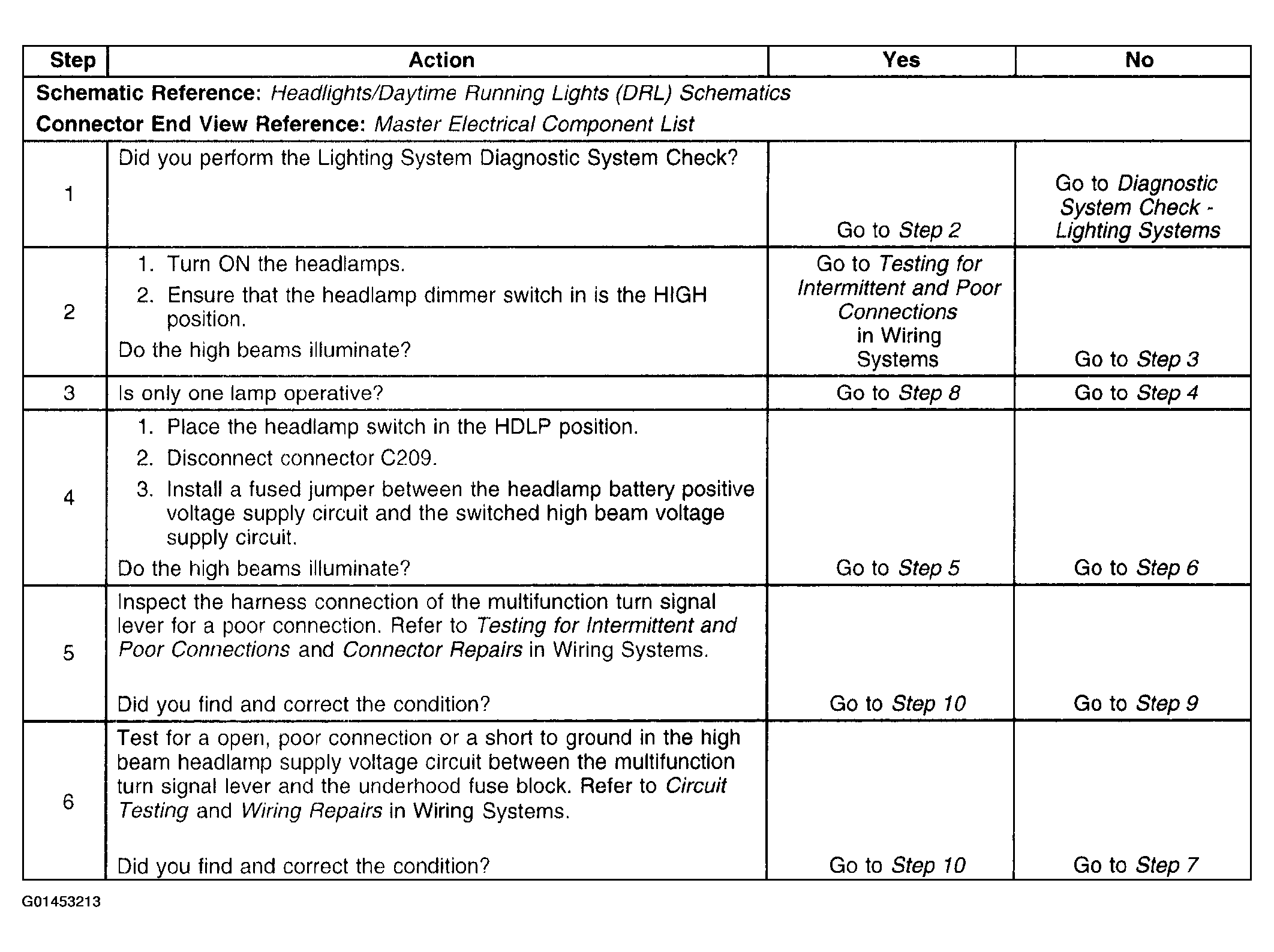

Fig 15: Headlamps Inoperative - High Beams (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

Fig 16: Headlamps Inoperative - High Beams (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

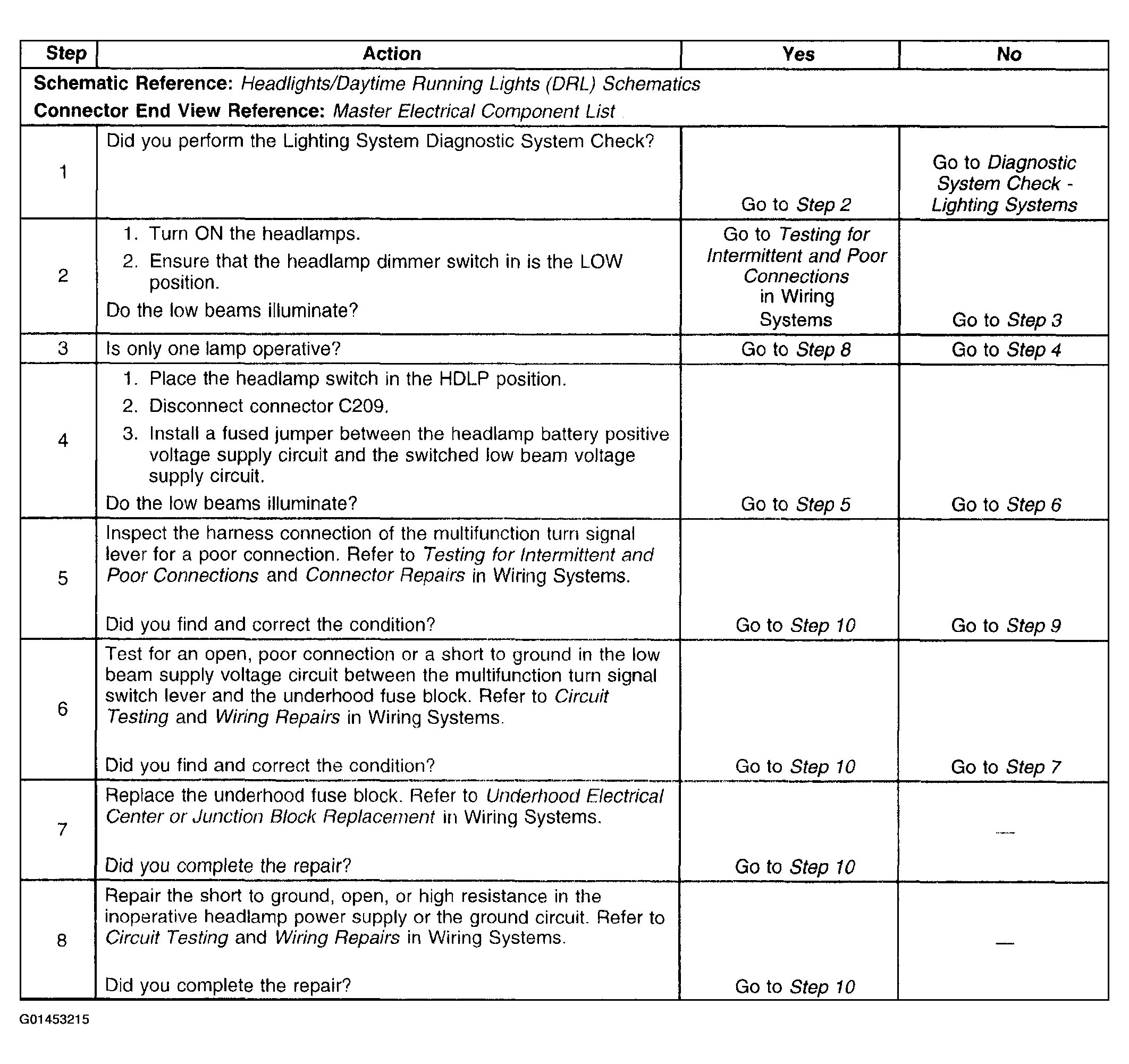

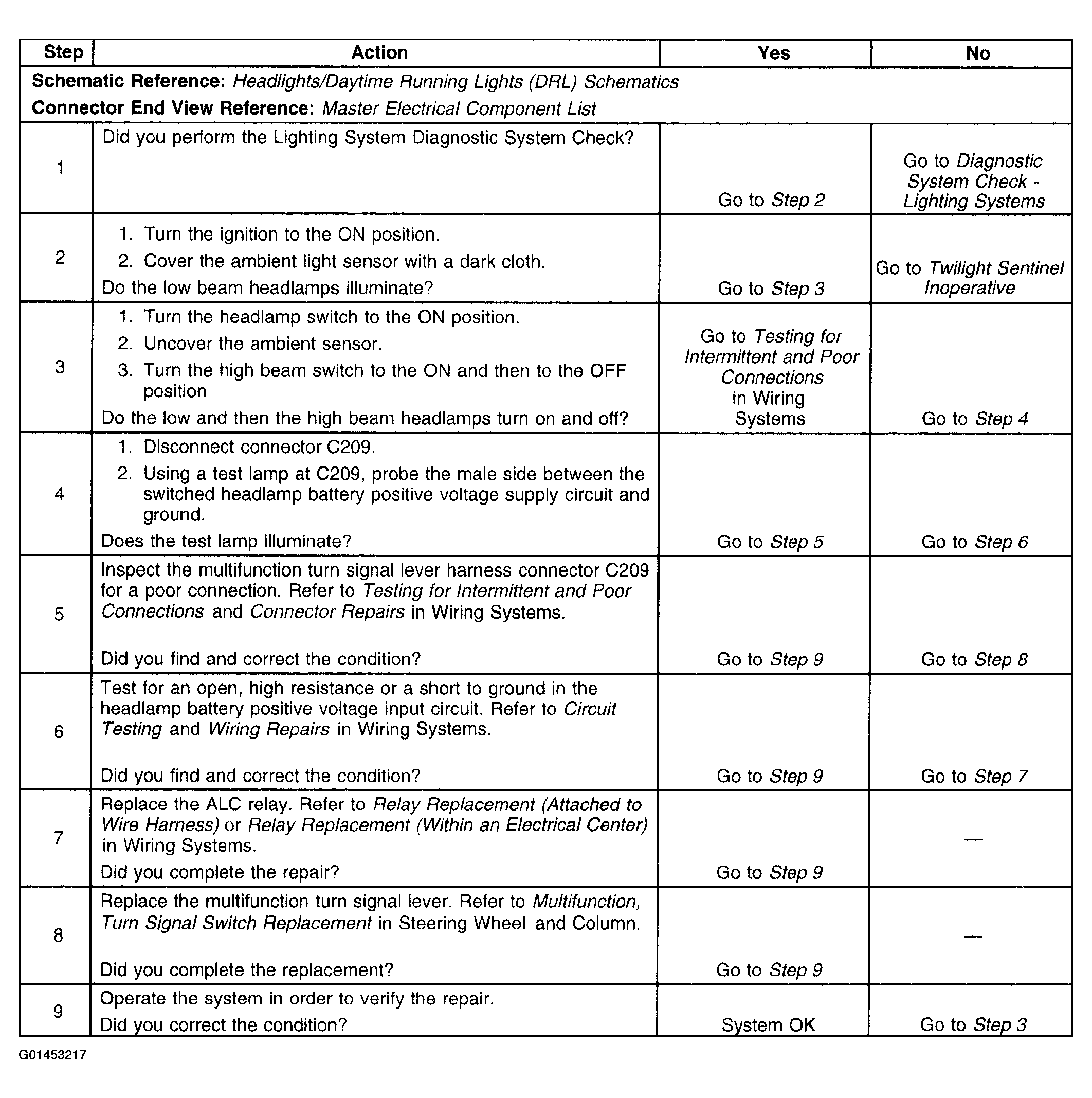

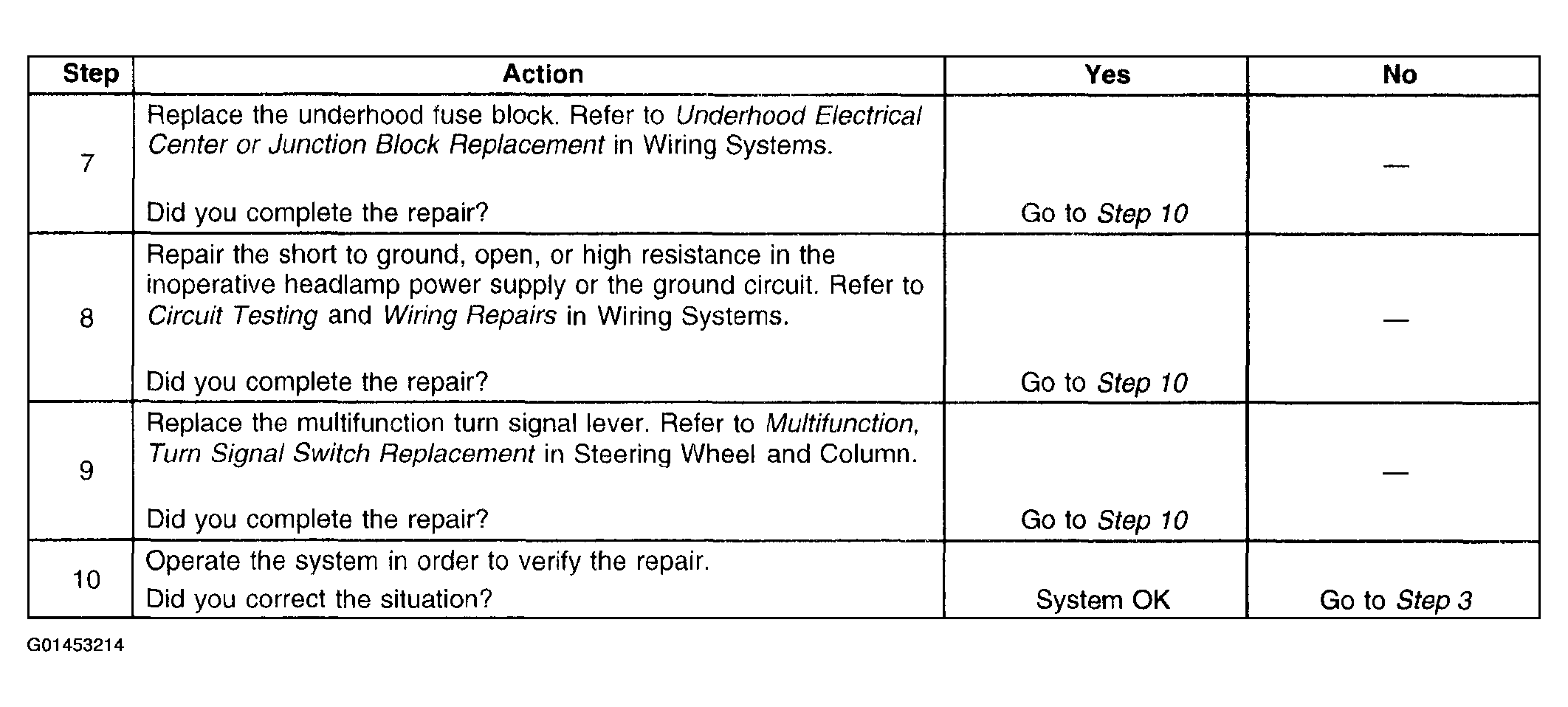

Fig 17: Headlamps Inoperative - Low Beams (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

Fig 18: Headlamps Inoperative - Low Beams (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

Fig 19: Headlamps Inoperative - Low & High Beams
Courtesy of GENERAL MOTORS CORP.

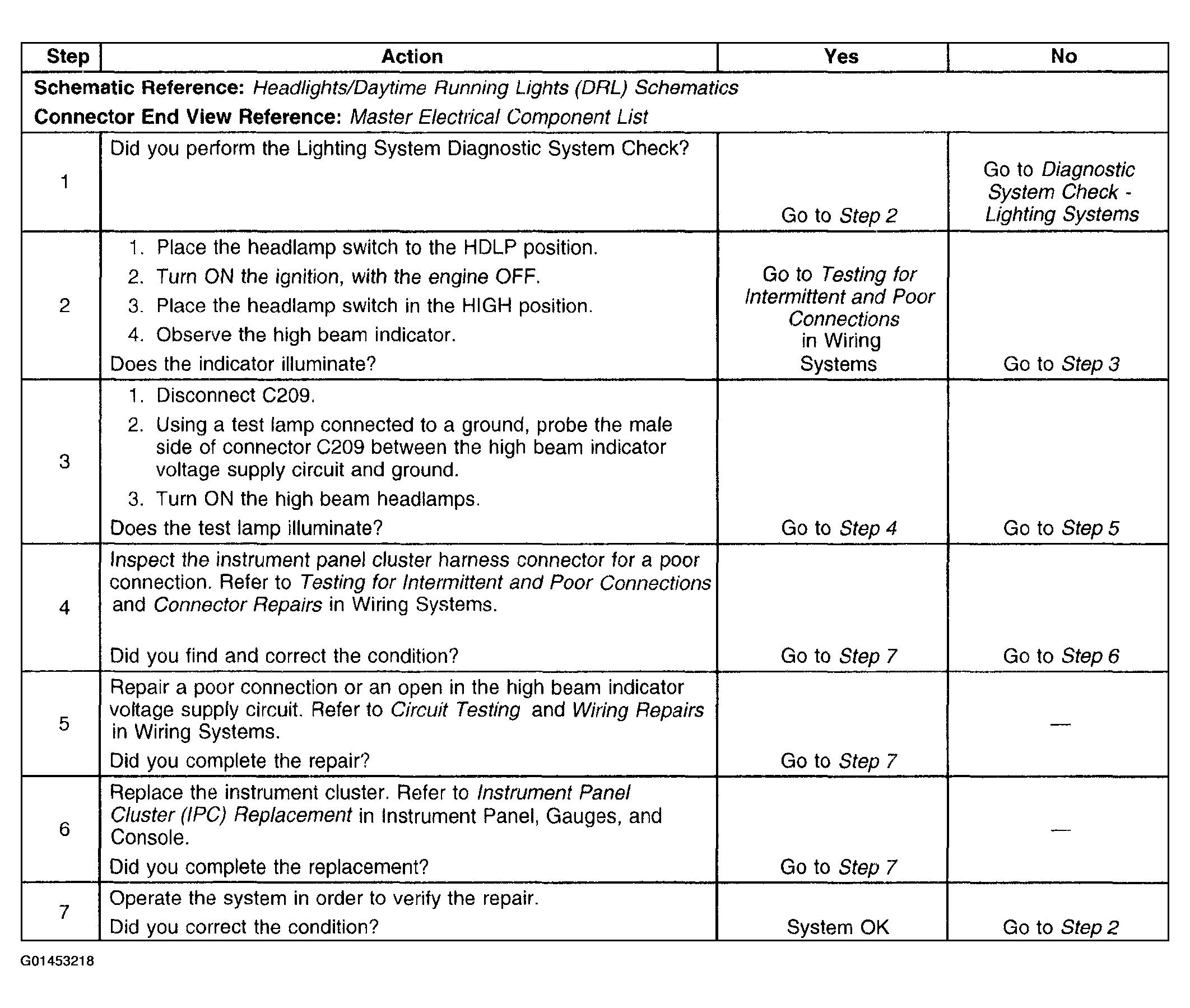

Fig 20: High Beam Indicator Inoperative
Courtesy of GENERAL MOTORS CORP.

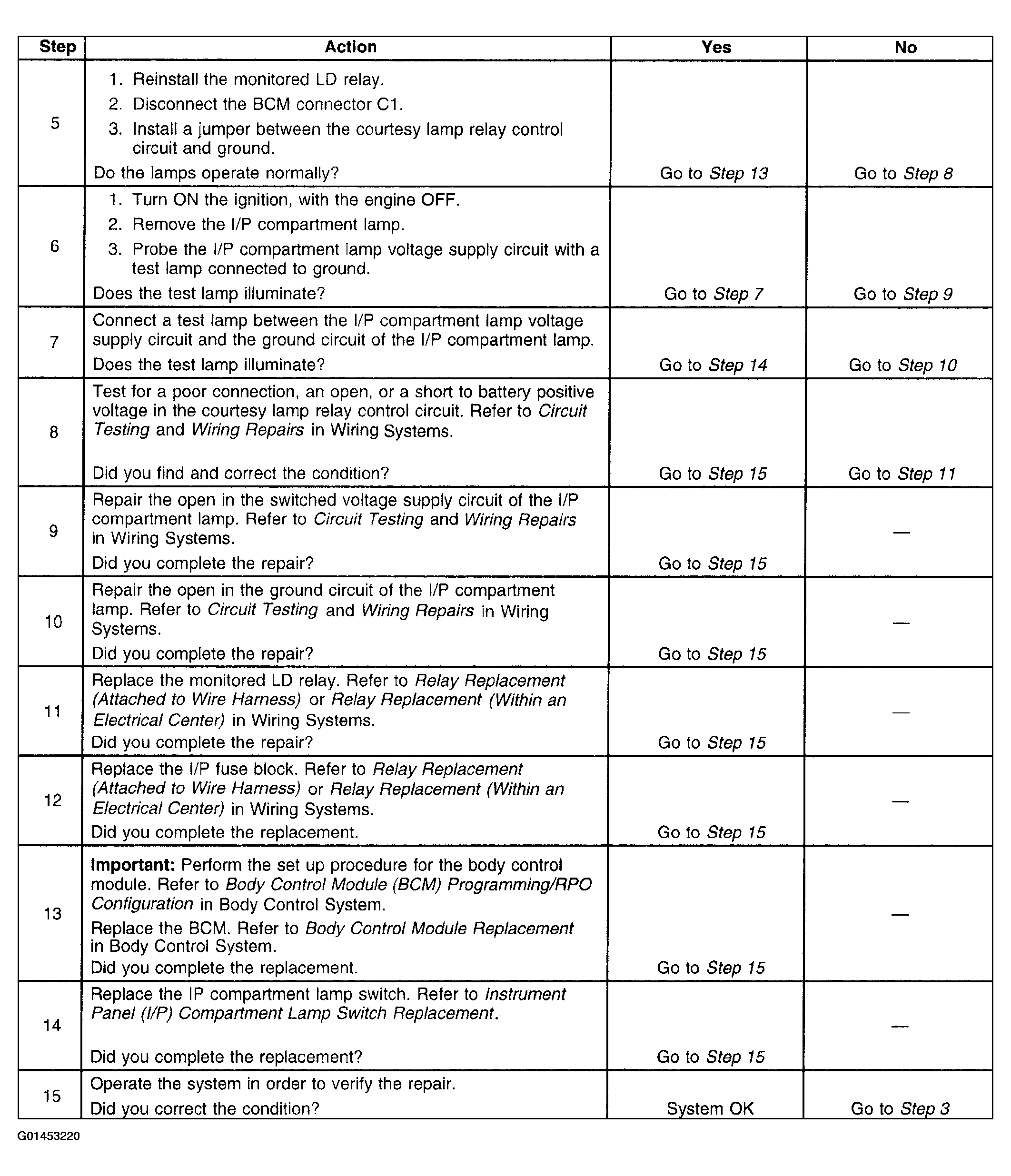

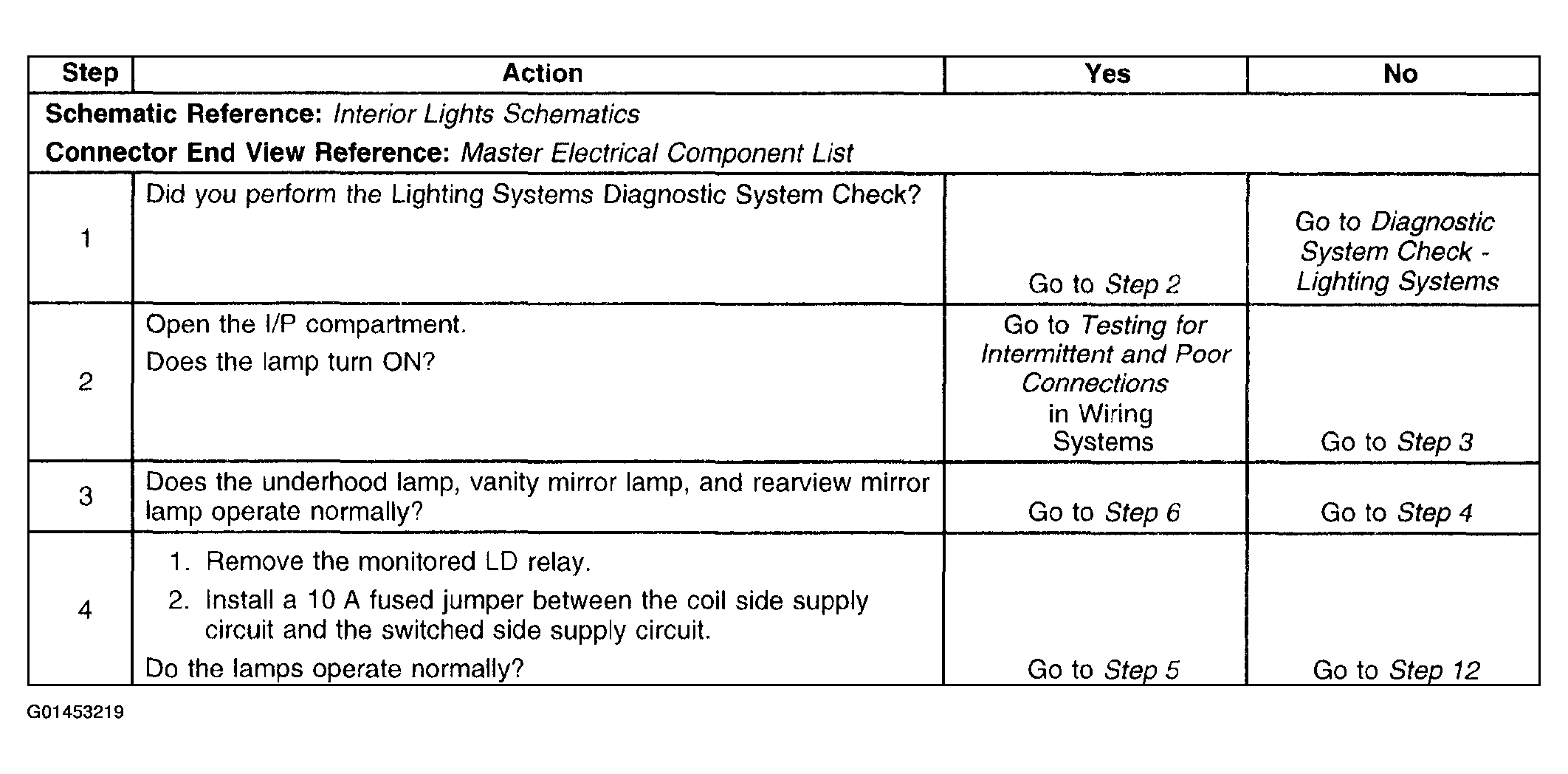

Fig 21: Instrument Panel (I/P) Compartment Lamp Inoperative (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

Fig 22: Instrument Panel (I/P) Compartment Lamp Inoperative (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

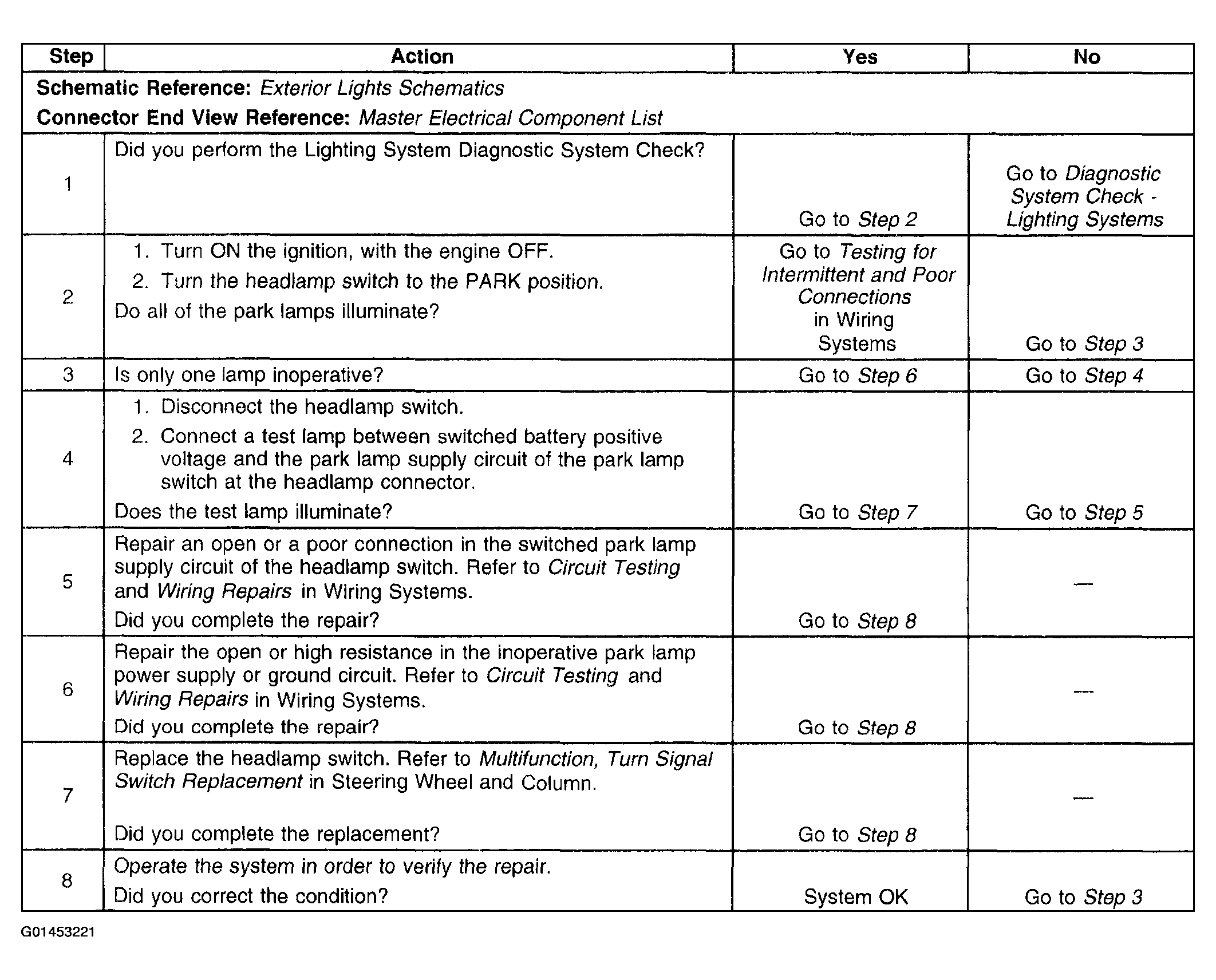

Fig 23: Park Lamps Inoperative
Courtesy of GENERAL MOTORS CORP.

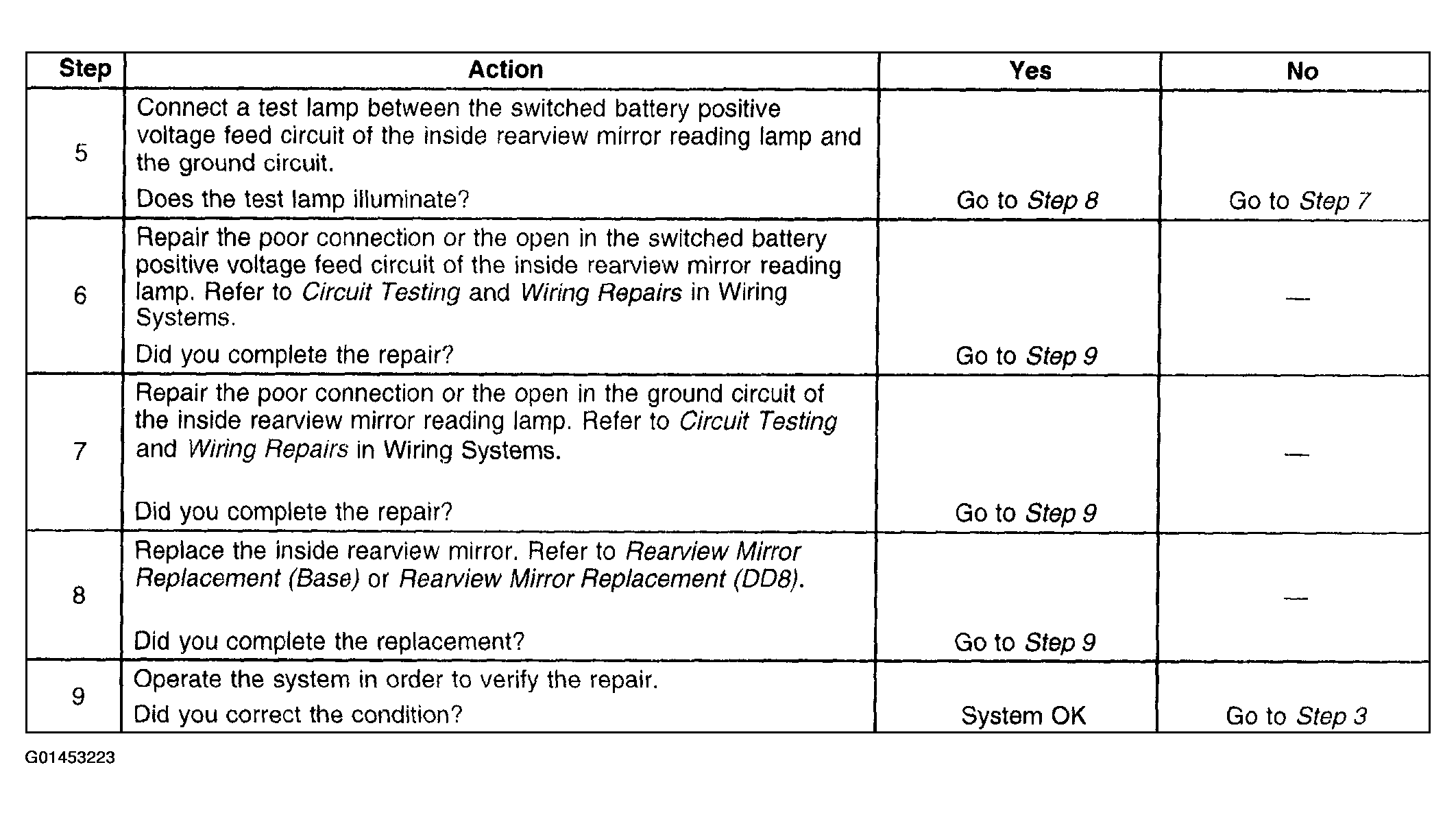

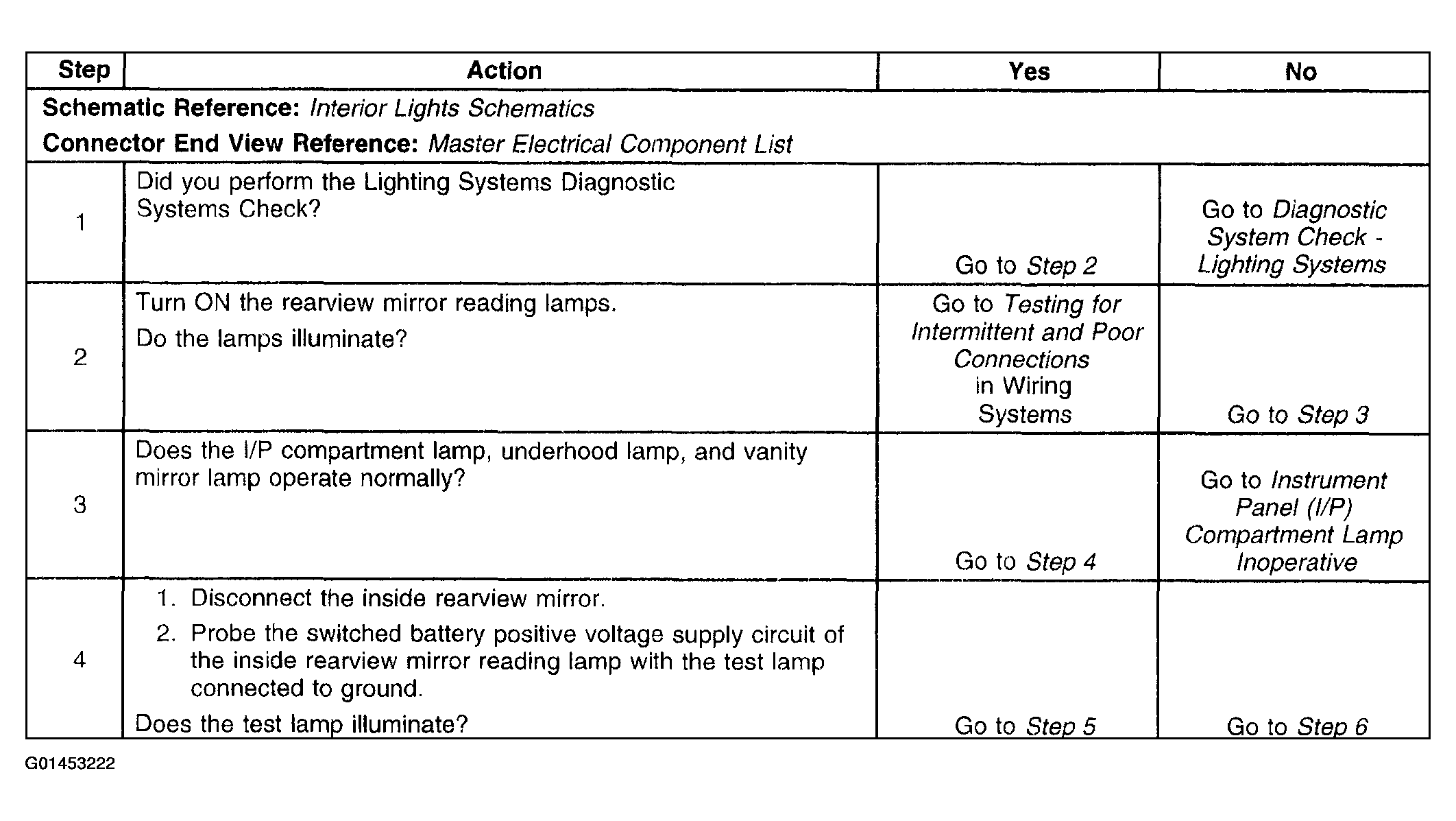

Fig 24: Rearview Mirror Lamp(s) Inoperative - Inside (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

Fig 25: Rearview Mirror Lamp(s) Inoperative - Inside (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

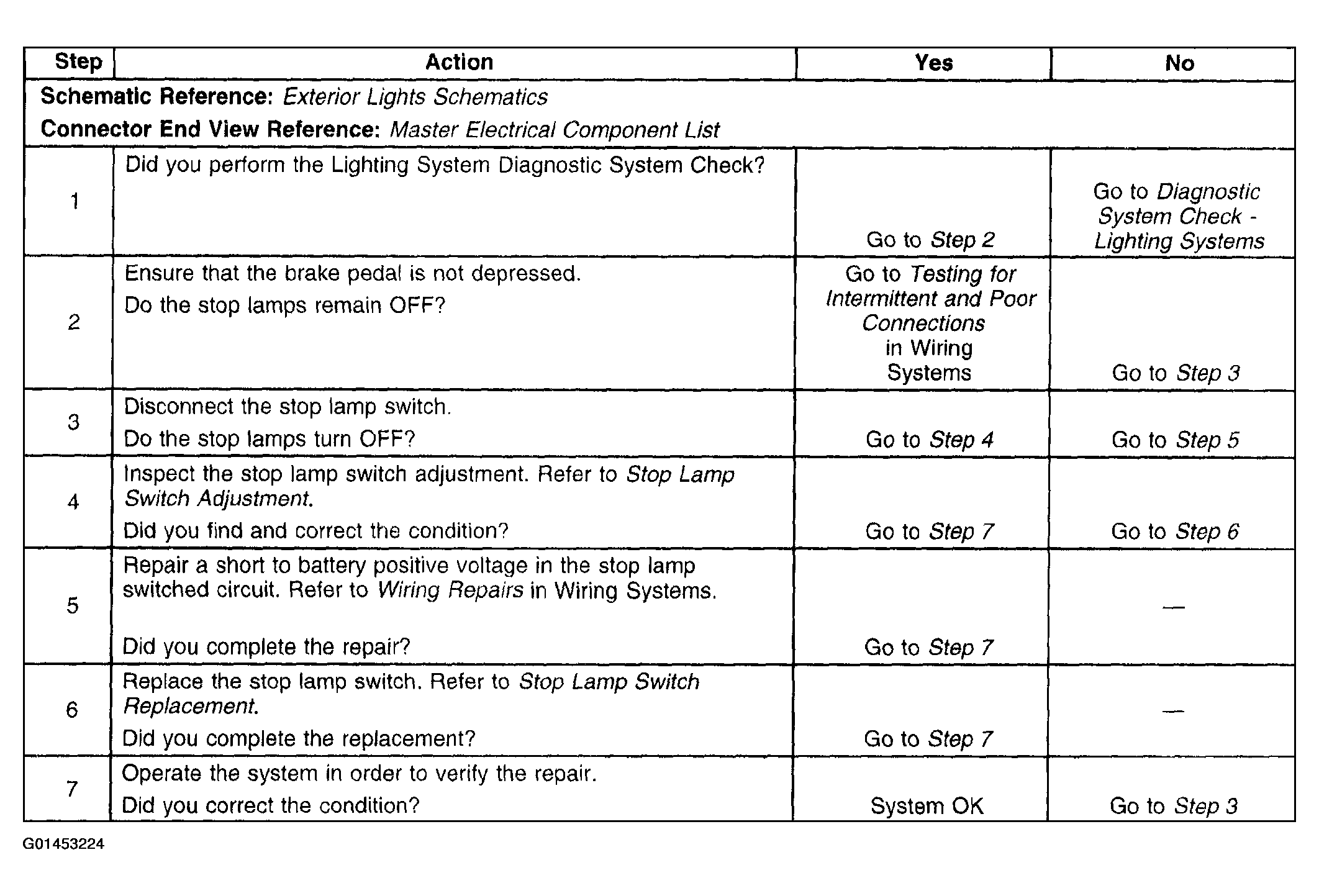

Fig 26: Stop Lamps Always On
Courtesy of GENERAL MOTORS CORP.

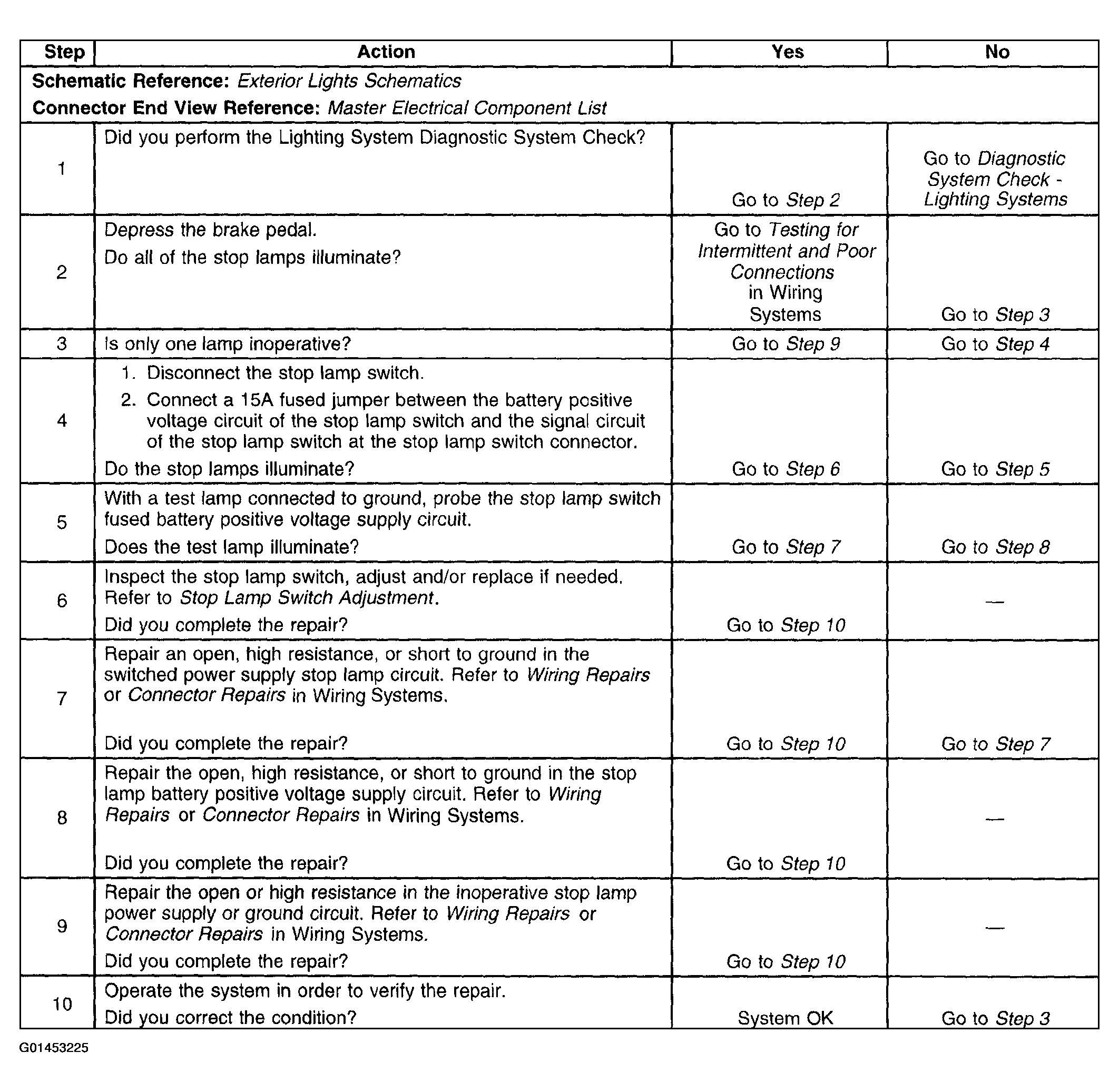

Fig 27: Stop Lamps Inoperative
Courtesy of GENERAL MOTORS CORP.

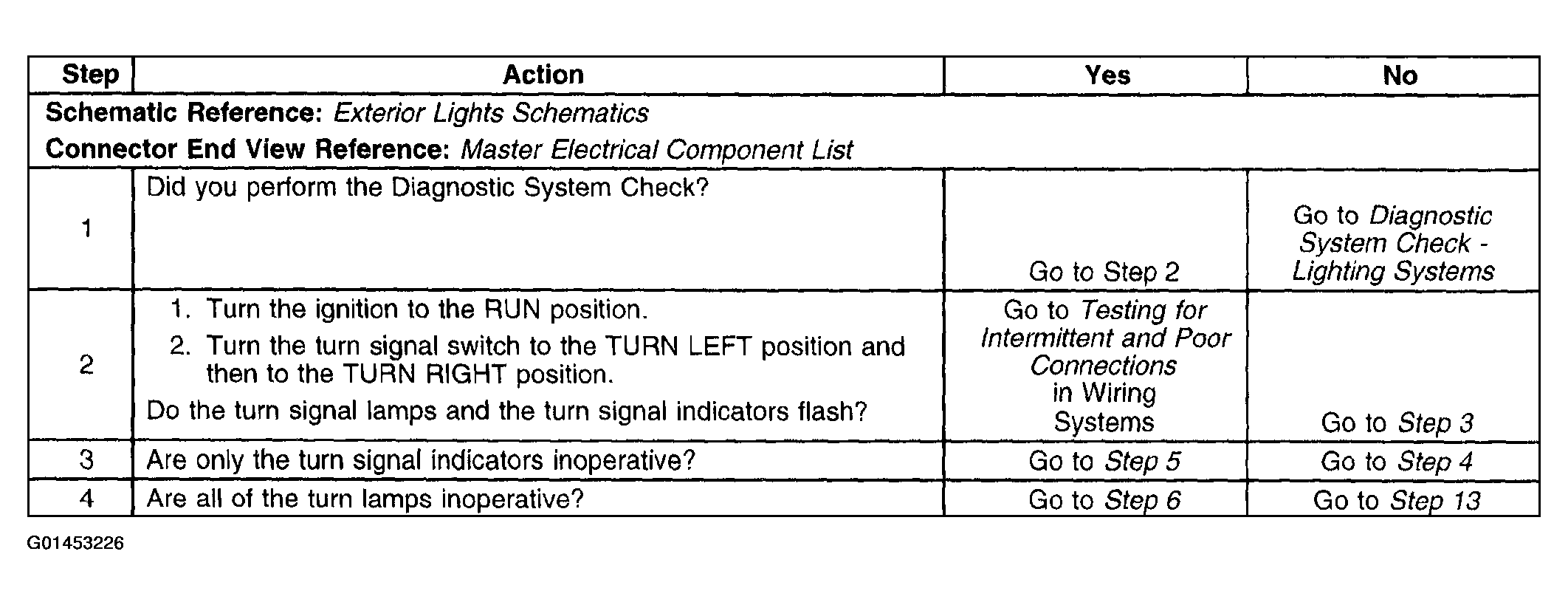

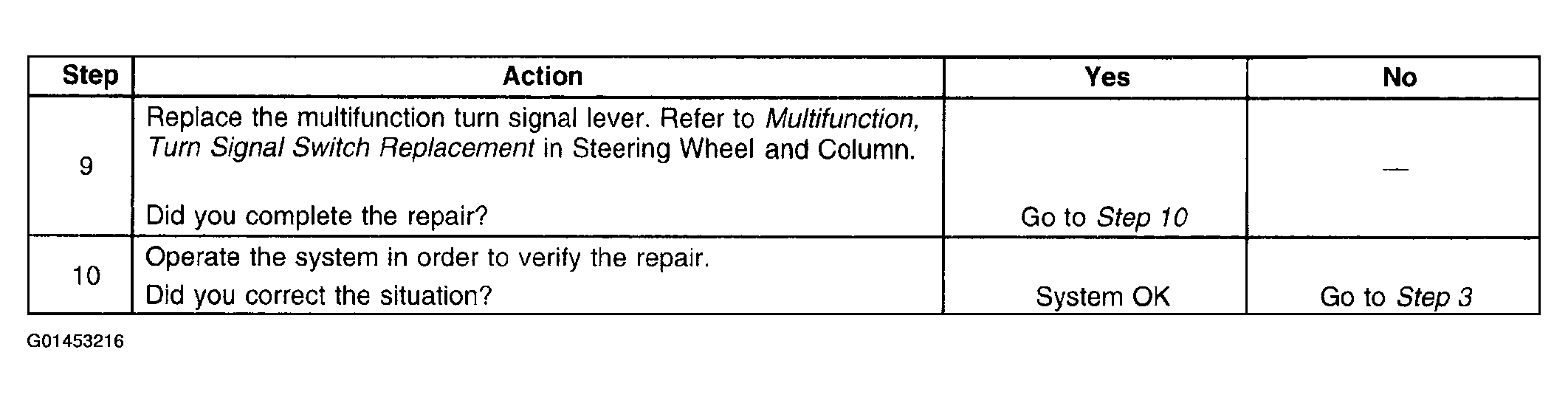

Fig 28: Turn Signal Lamps And/Or Indicators Inoperative (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

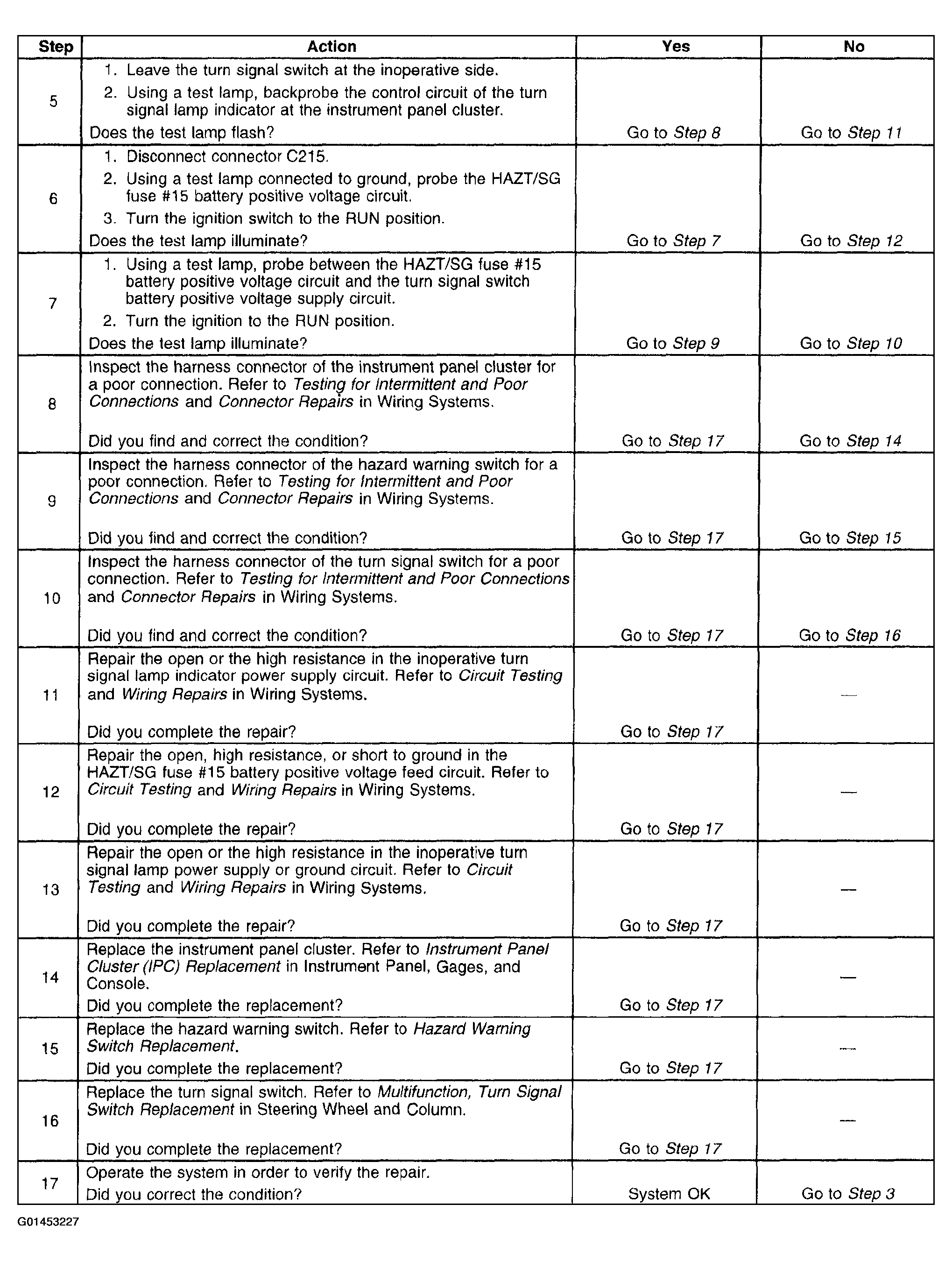

Fig 29: Turn Signal Lamps And/Or Indicators Inoperative (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

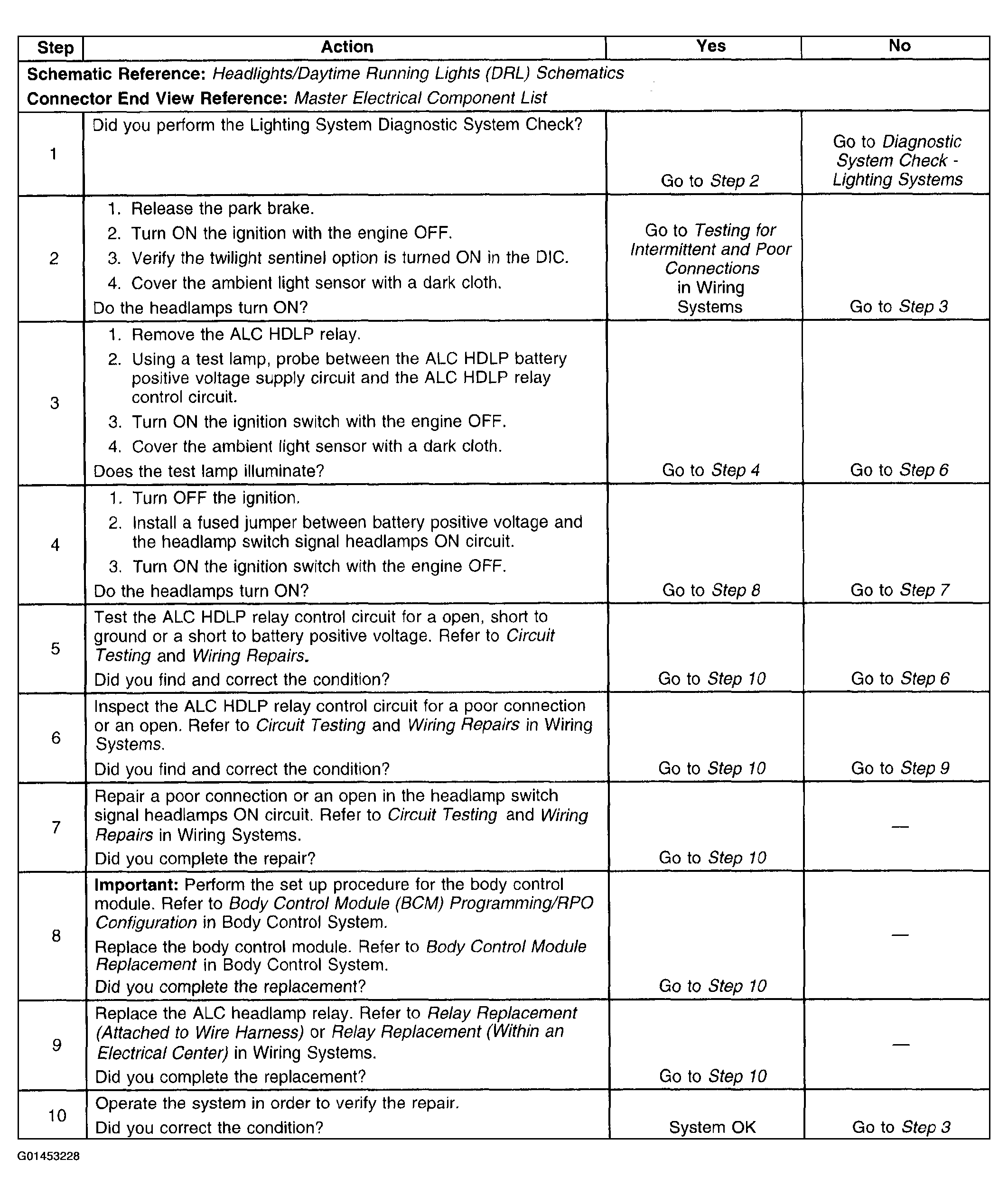

Fig 30: Twilight Sentinel Inoperative
Courtesy of GENERAL MOTORS CORP.

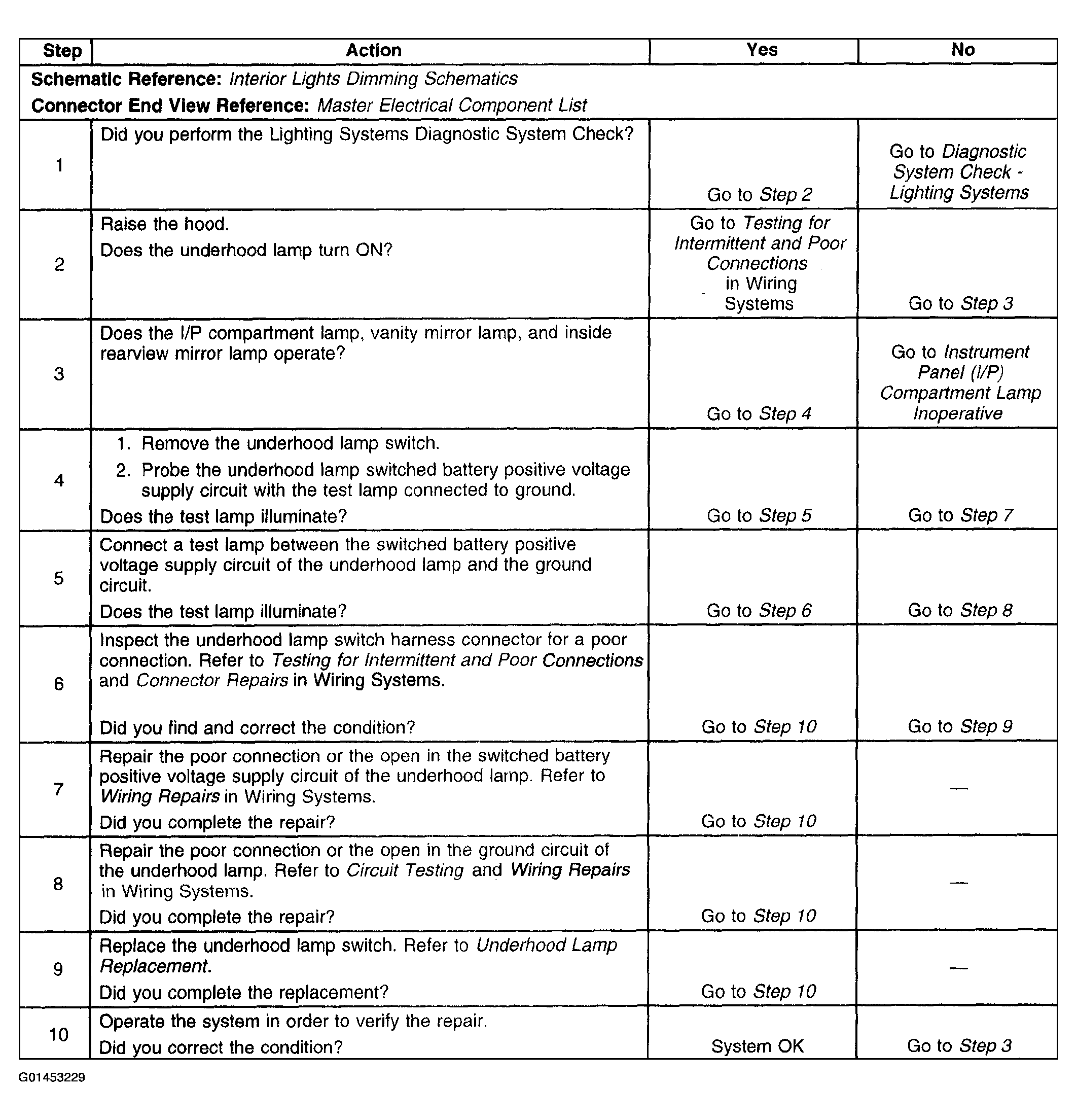

Fig 31: Underhood Lamp Inoperative
Courtesy of GENERAL MOTORS CORP.

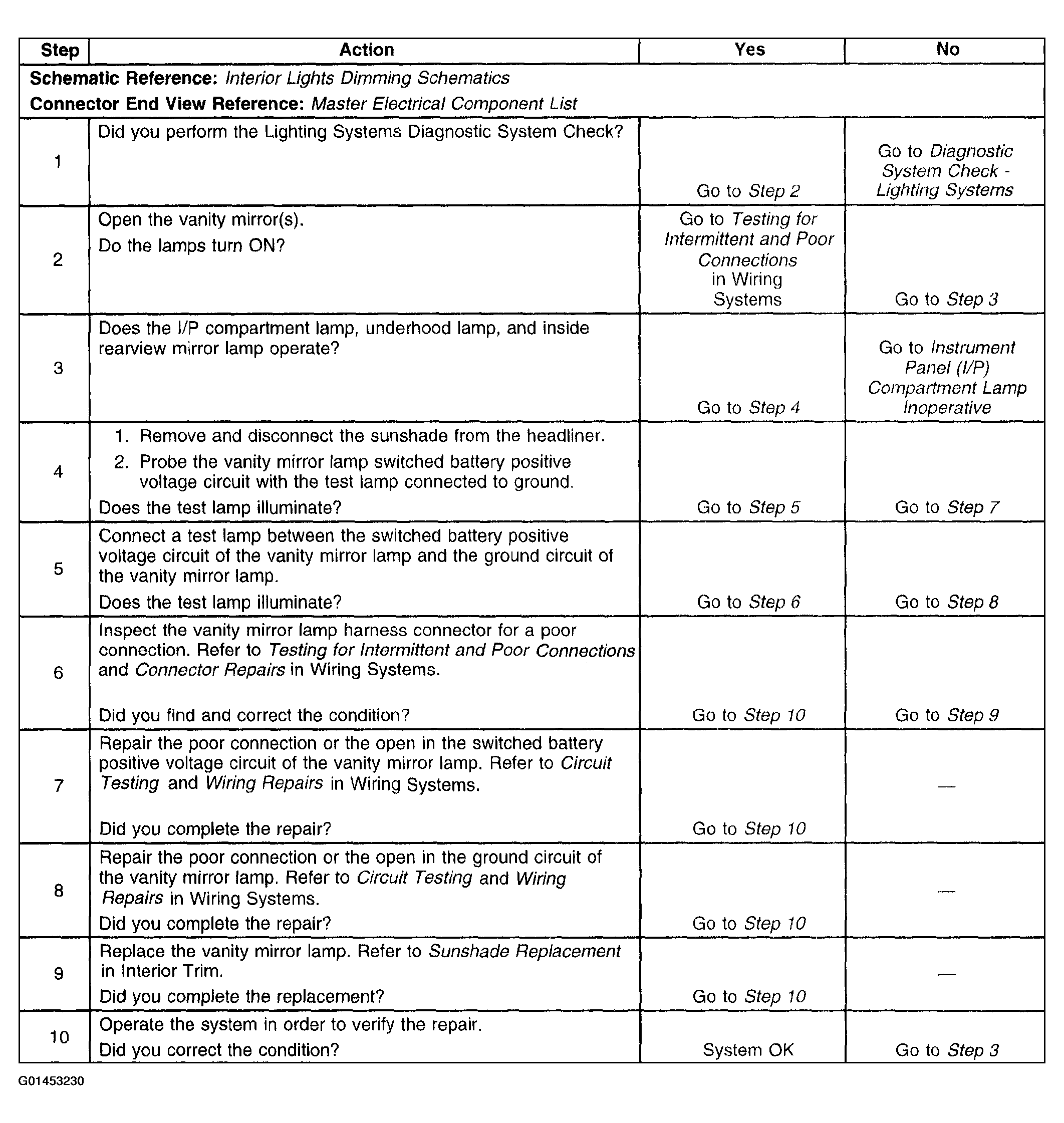

Fig 32: Vanity Mirror Lamp(s) Inoperative
Courtesy of GENERAL MOTORS CORP.
