Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Using a suitable size socket, install the clutch pilot bearing.
Install the clutch assembly. Refer to CLUTCH ASSEMBLY REPLACEMENT .

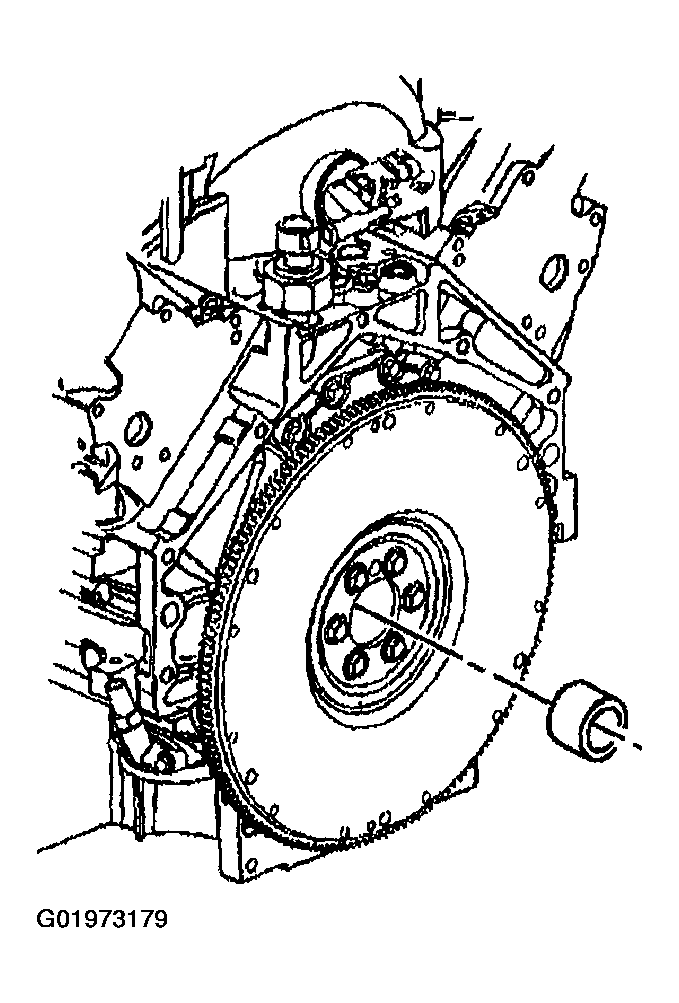

Fig 1: Clutch Pilot Bearing
Courtesy of GENERAL MOTORS CORP.
