Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Refer to BATTERY DISCONNECT CAUTION in Cautions and Notices.

Disconnect the negative battery cable.
Remove the clutch master cylinder reservoir cap (clutch start switch) electrical connector.

Fig 1: Clutch Master Cylinder Reservoir Cap
Courtesy of GENERAL MOTORS CORP.
Insert a feeler gauge between the switch and the clutch pedal bracket to release the switch tab.
Remove the switch.
Lift the switch slightly then pull to remove.

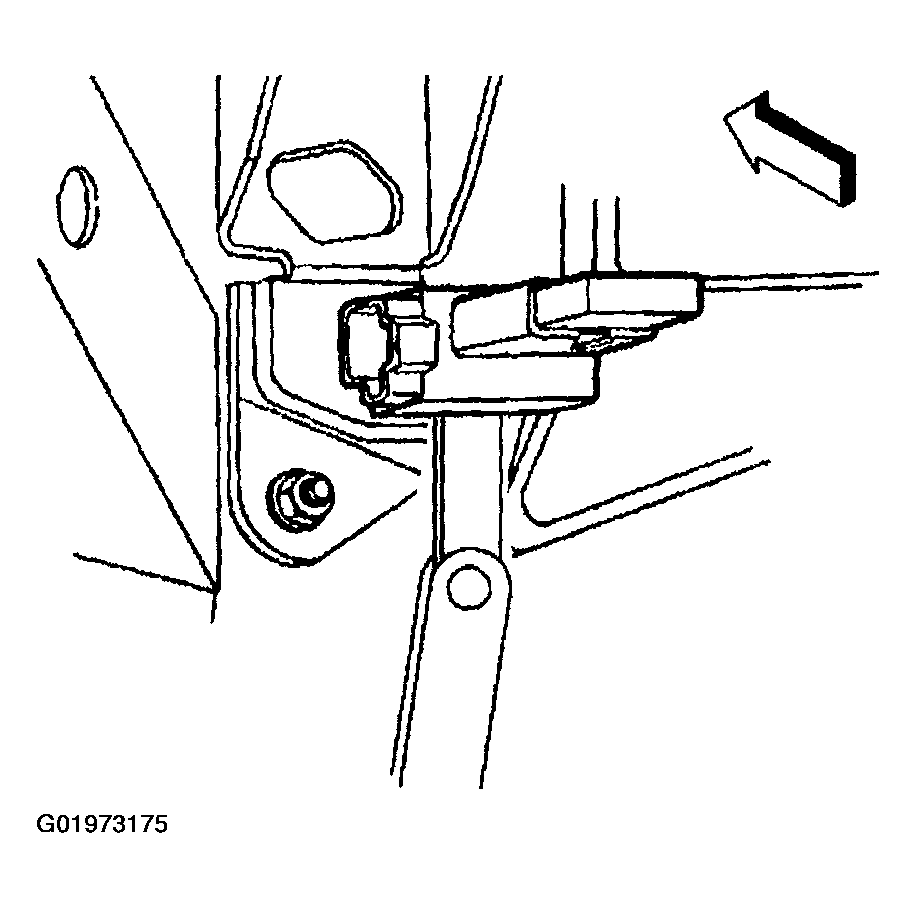

Fig 2: Clutch Pedal Position Switch
Courtesy of GENERAL MOTORS CORP.
