Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the clutch pedal position switch (clutch start switch) to the clutch pedal bracket.

    Insert the switch locators into the top of the slots, then slide down to lock.

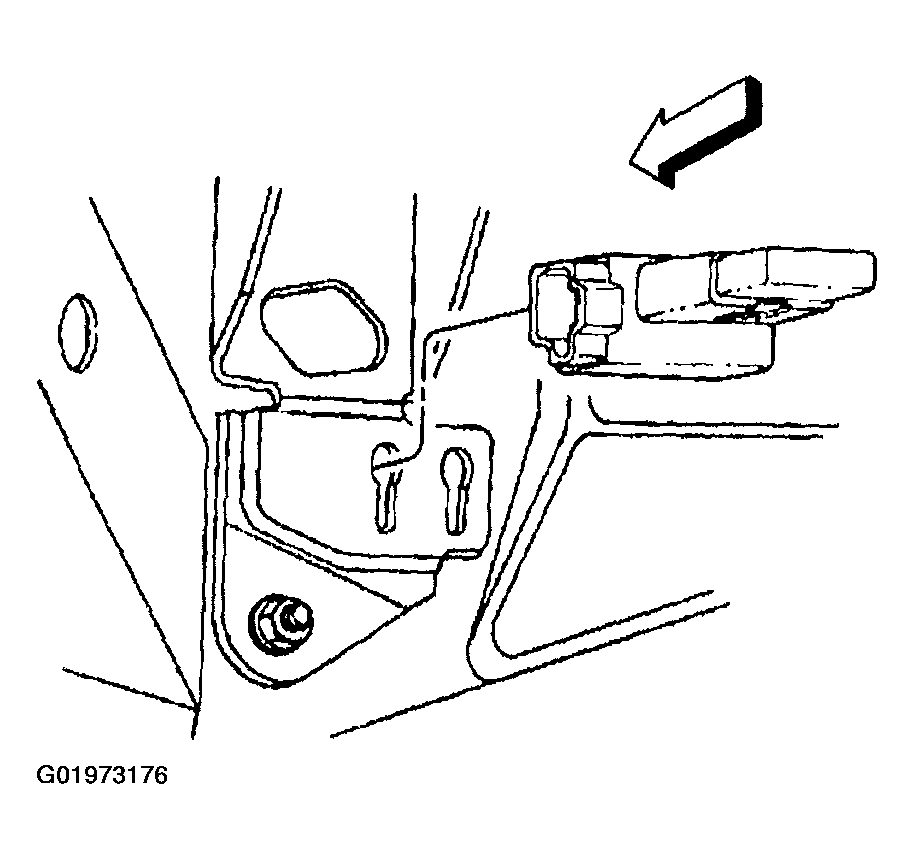

    Fig 1: Clutch Pedal Position Switch
    G01973176Courtesy of GENERAL MOTORS CORP.
  2. Connect the switch electrical connector.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Connect the negative battery cable.

    Tighten

    Tighten the negative battery cable bolt to 15 N.m (11 lb ft).

  4. Program the transmitters. Refer to TRANSMITTER PROGRAMMING in Keyless Entry.

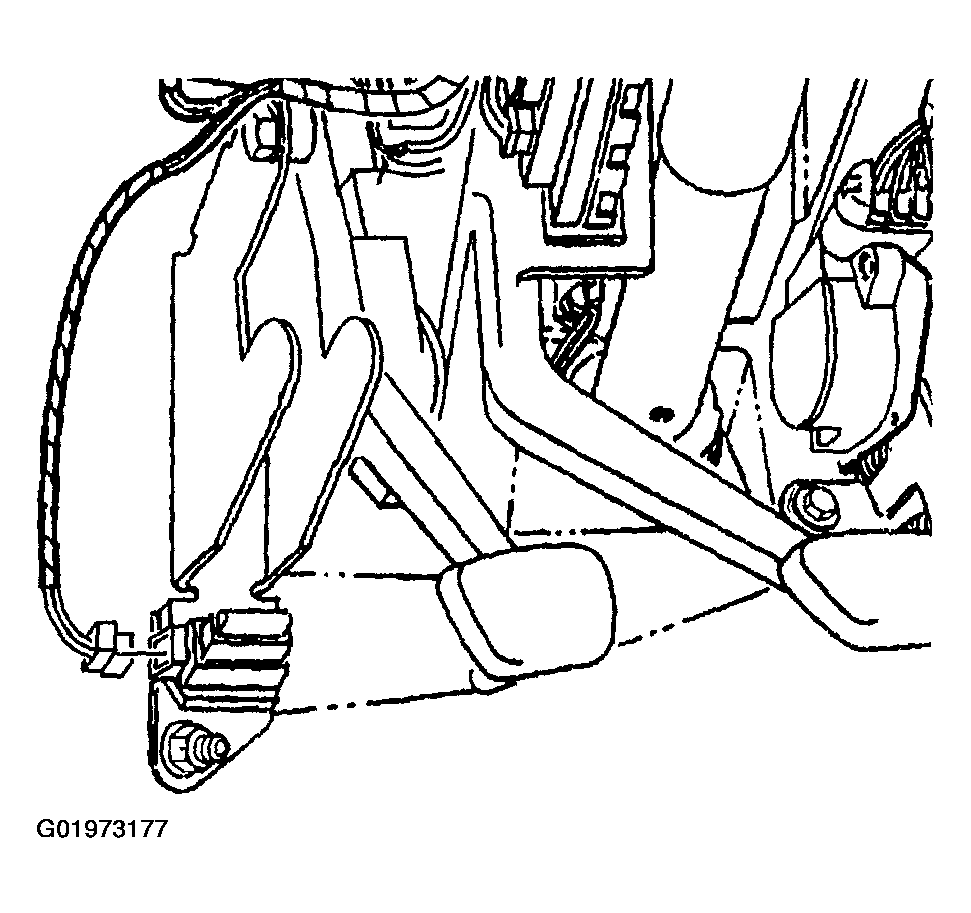

    Fig 2: Connecting Switch Electrical Connector
    G01973177Courtesy of GENERAL MOTORS CORP.
