Transmission Fluid Temperature (TFT) Sensor Specifications

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

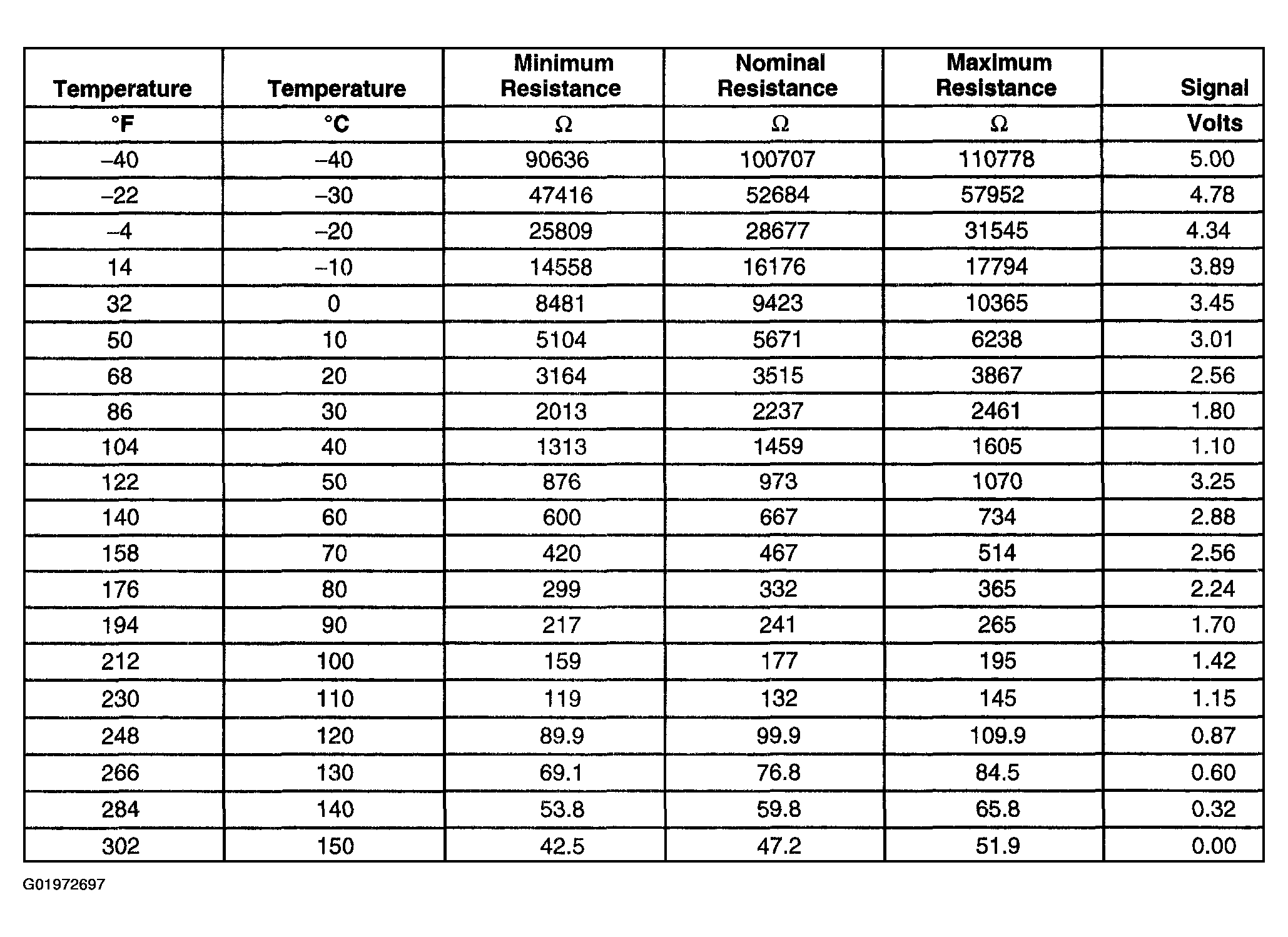

Fig 1: Transmission Fluid Temperature (TFT) Sensor Specifications
G01972697Courtesy of GENERAL MOTORS CORP.
