Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the transmission vent hose to the transmission vent tube.

    Orient the transmission vent hose check valve as noted during prior to removal.

  2. Secure the transmission vent hose to the lower retaining clip.
  3. Lower the vehicle.

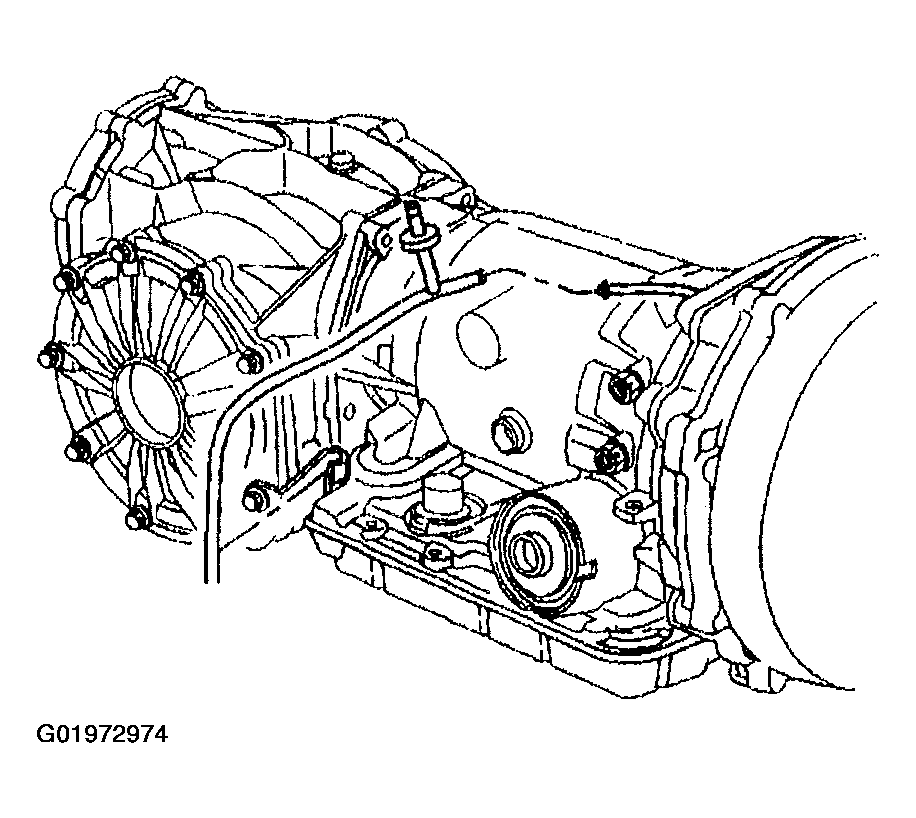

    Fig 1: Installing Transmission Vent Hose To Transmission Vent Tube
    G01972974Courtesy of GENERAL MOTORS CORP.
