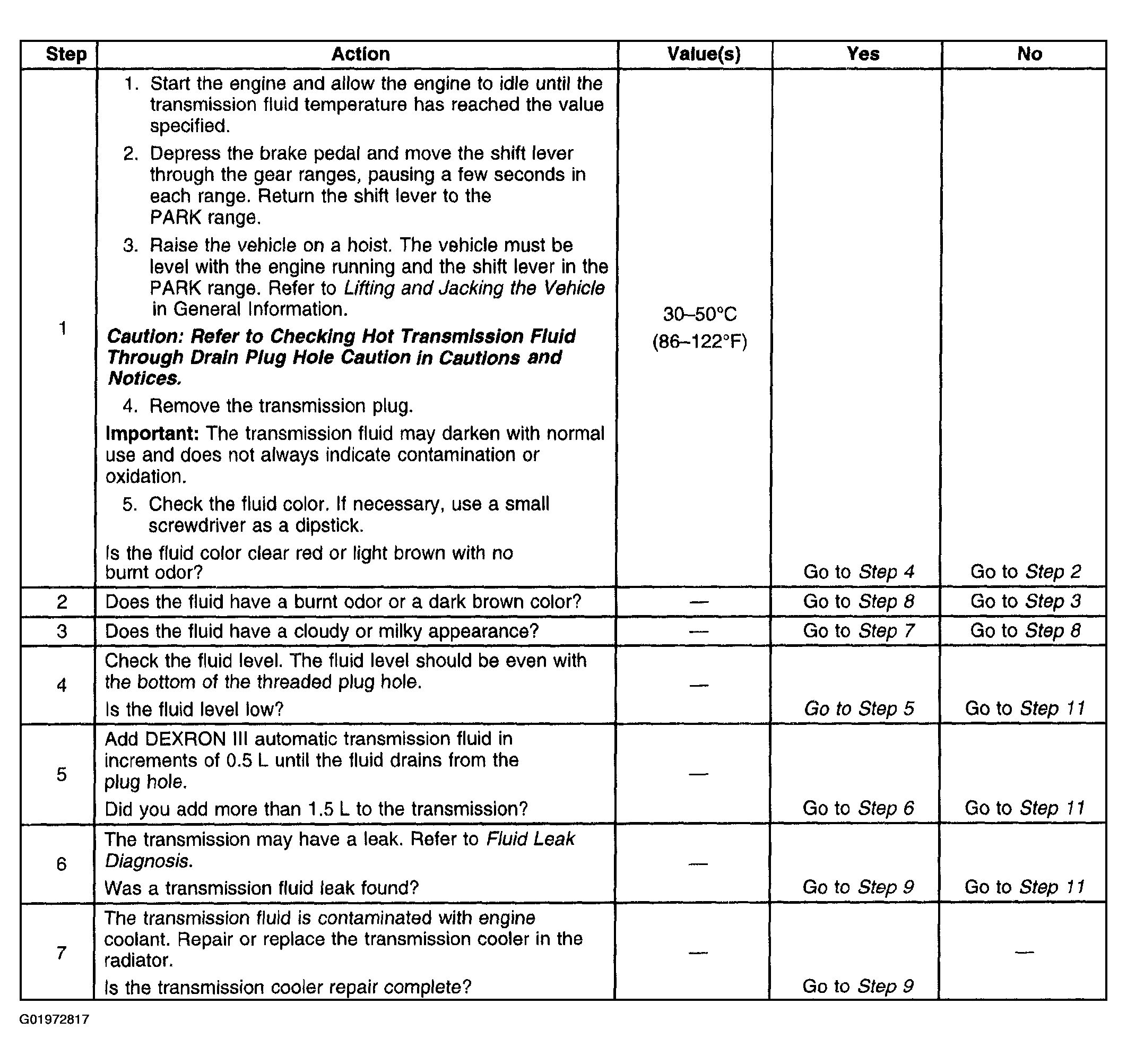

Fig 1: Transmission Fluid Checking Procedure (1 Of 3)
Courtesy of GENERAL MOTORS CORP.

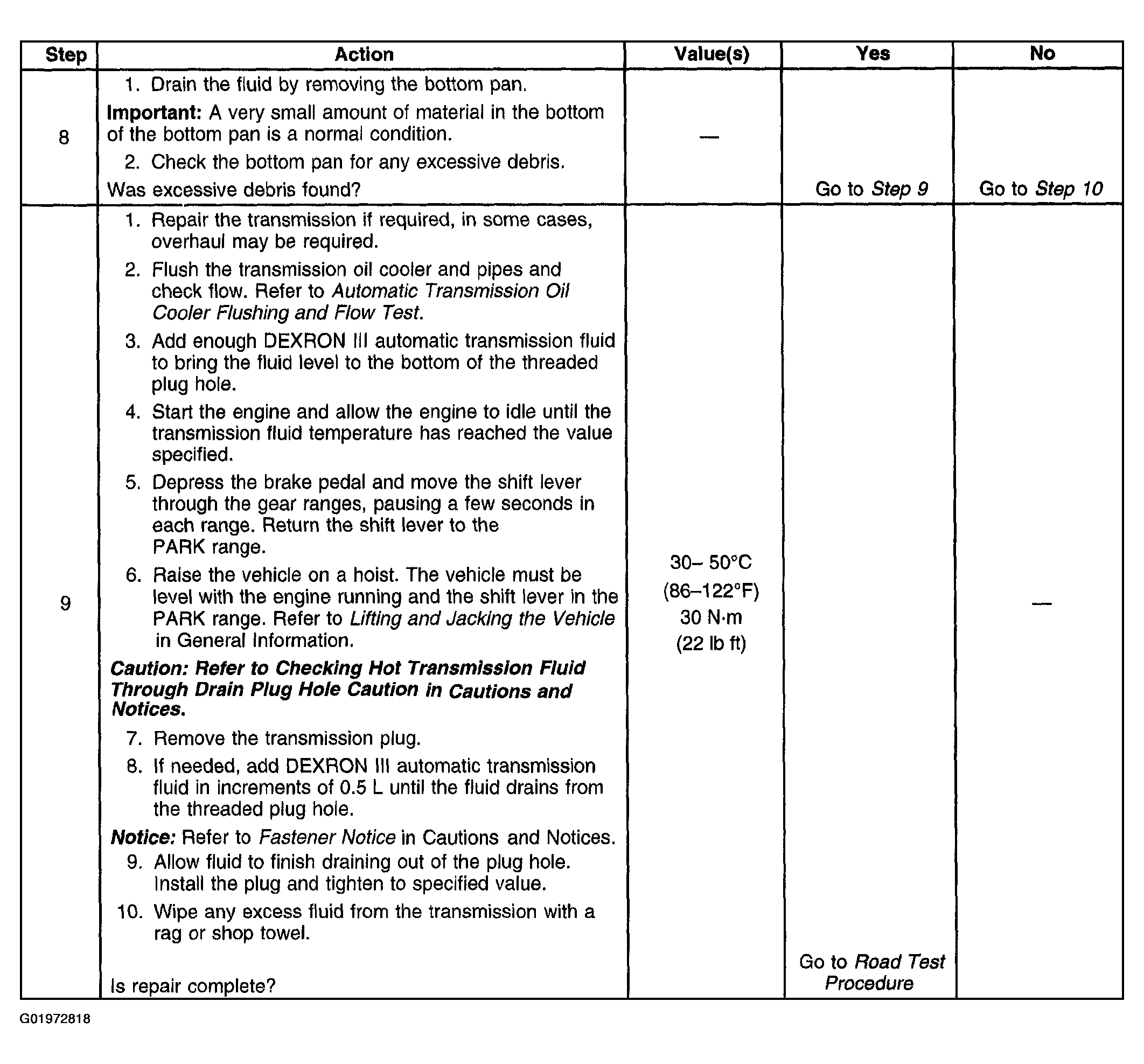

Fig 2: Transmission Fluid Checking Procedure (2 Of 3)
Courtesy of GENERAL MOTORS CORP.

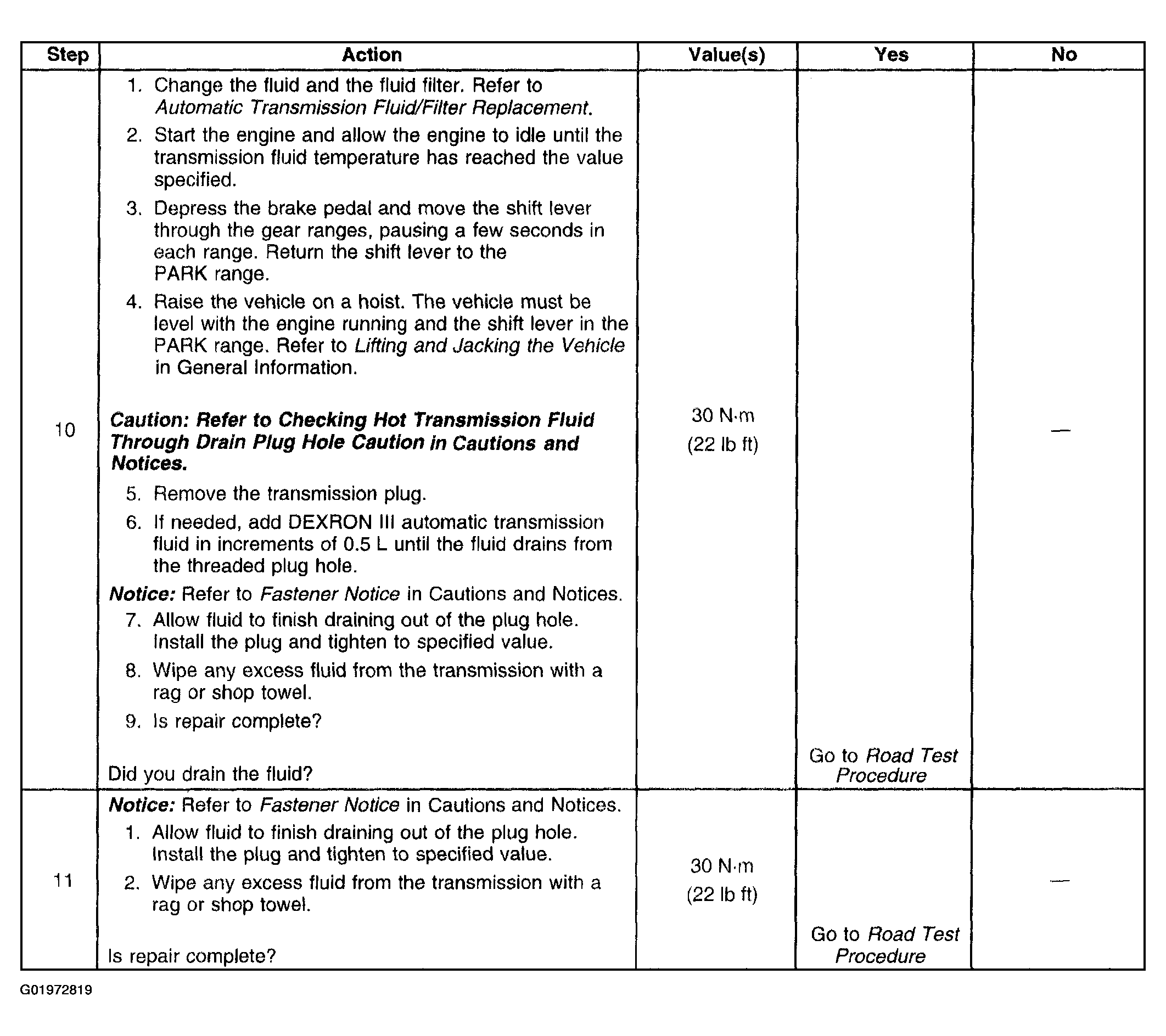

Fig 3: Transmission Fluid Checking Procedure (3 Of 3)
