Slipping Or Harsh 1-2 Shift

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

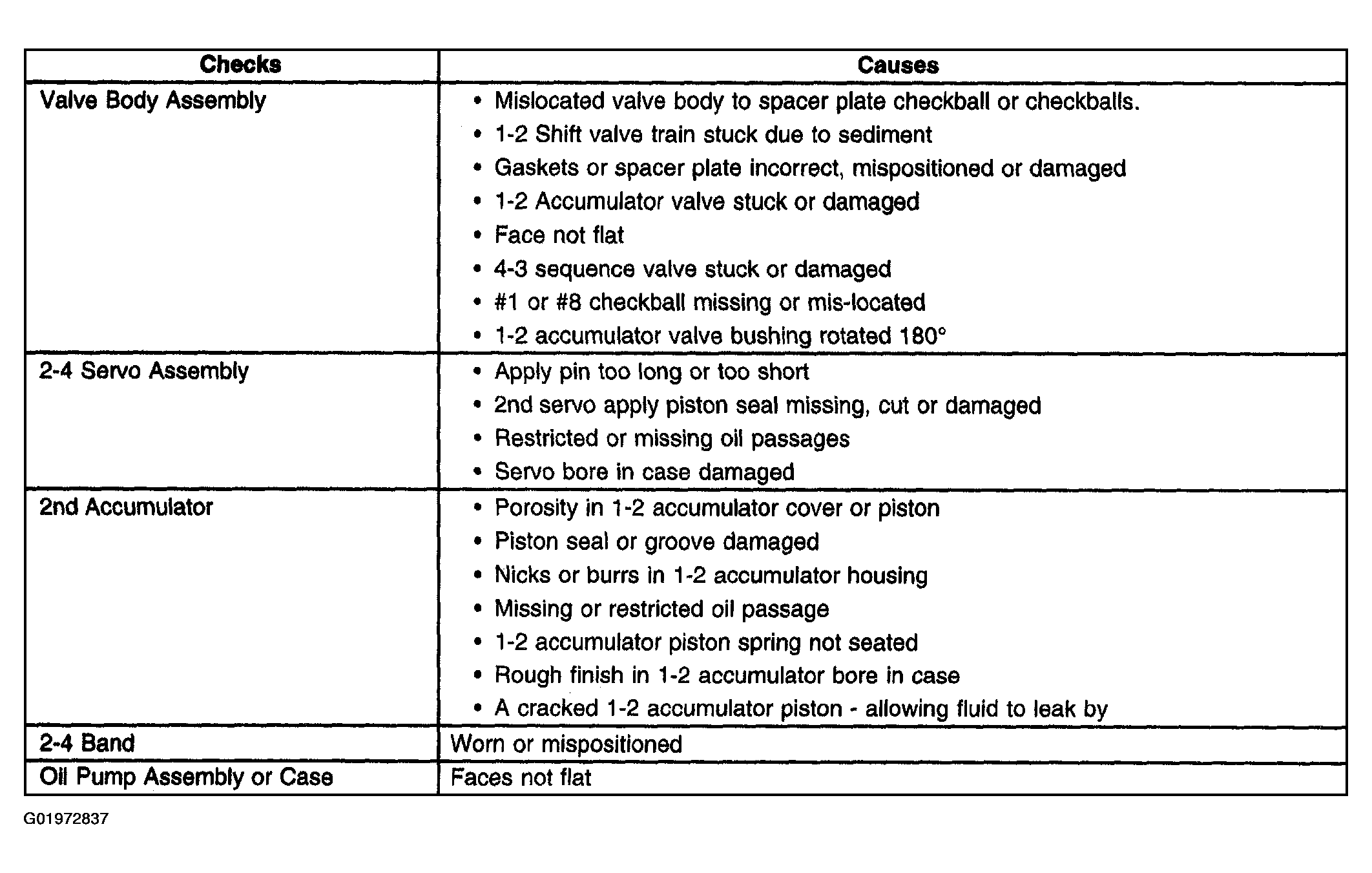

Fig 1: Slipping Or Harsh 1-2 Shift
G01972837Courtesy of GENERAL MOTORS CORP.
