DTC P0785: Open, Short To Ground Or Short To Power In The 3-2 SS Valve Assembly Circuit: Notes

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

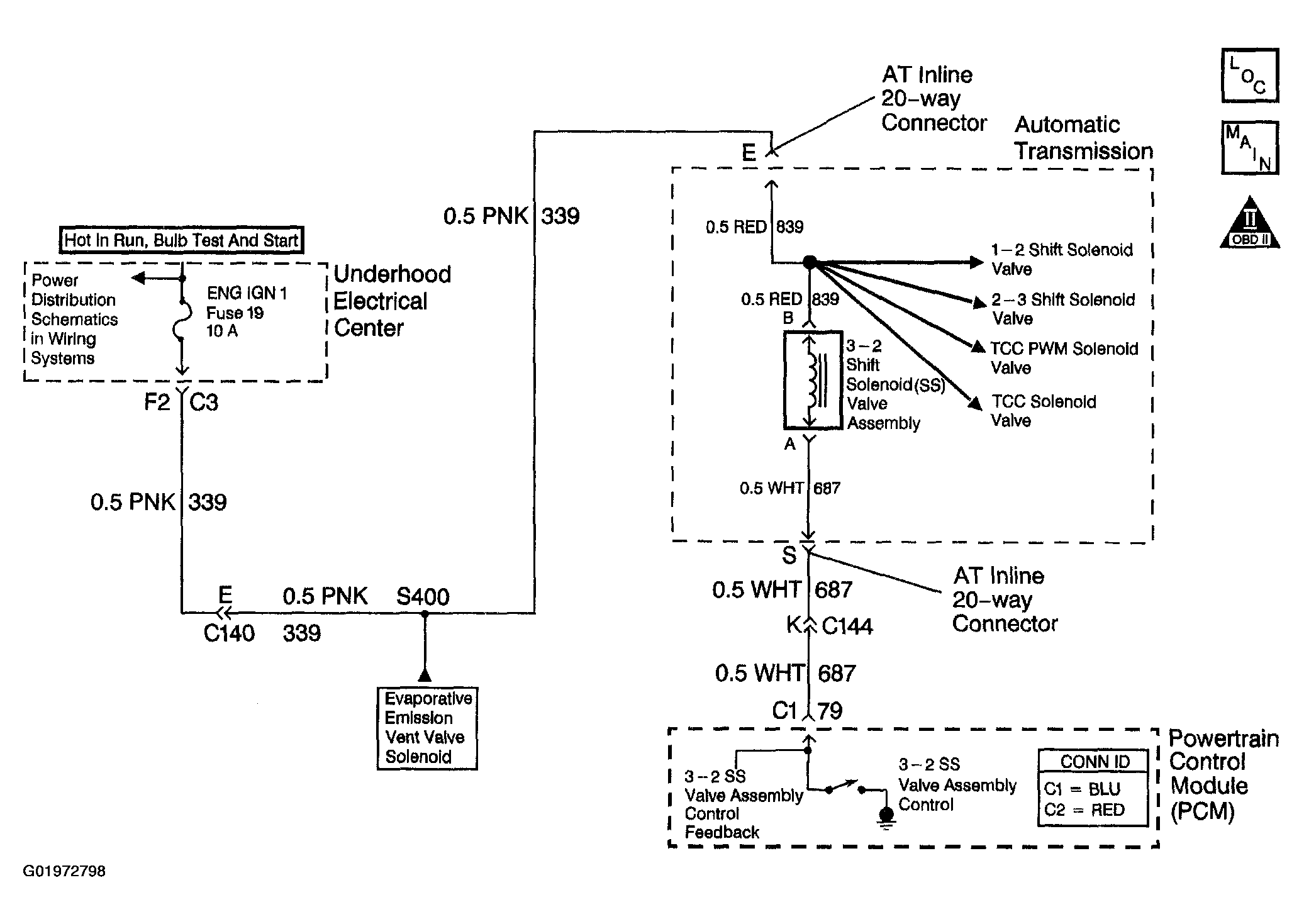

Fig 1: DTC P0785
G01972798Courtesy of GENERAL MOTORS CORP.
