DTC P0748: PC Solenoid Valve Duty Cycle Reached Its High Limit: Notes

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

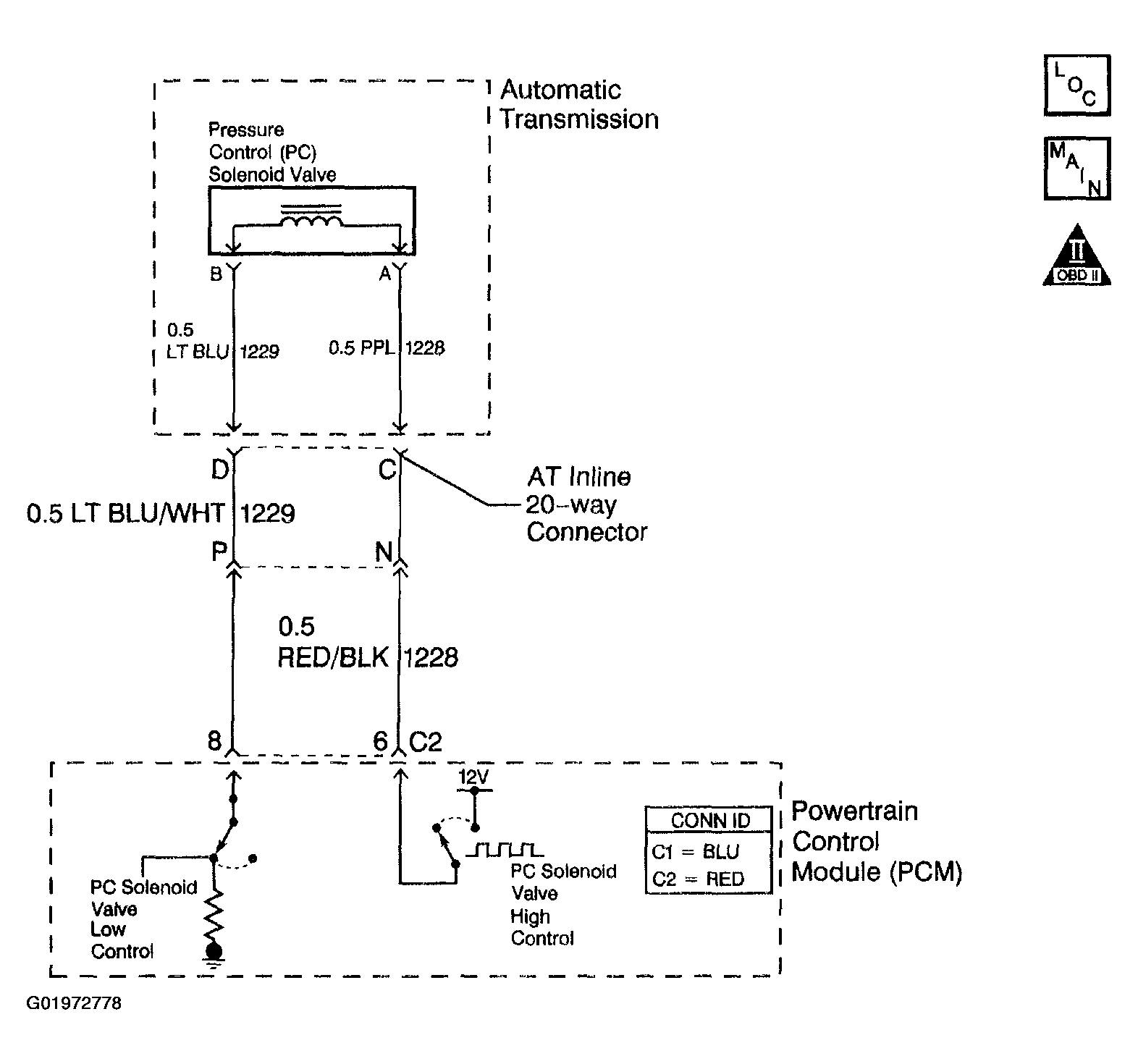

Fig 1: DTC P0748
G01972778Courtesy of GENERAL MOTORS CORP.
