Test Description

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 5. This step tests for an intermittent short or open condition in the engine wiring harness. The test lamp is used as a resistor in the circuit.
  2. 6. This step determines if the PCM or the TFT sensor is causing a steady, unchanging TFT reading.

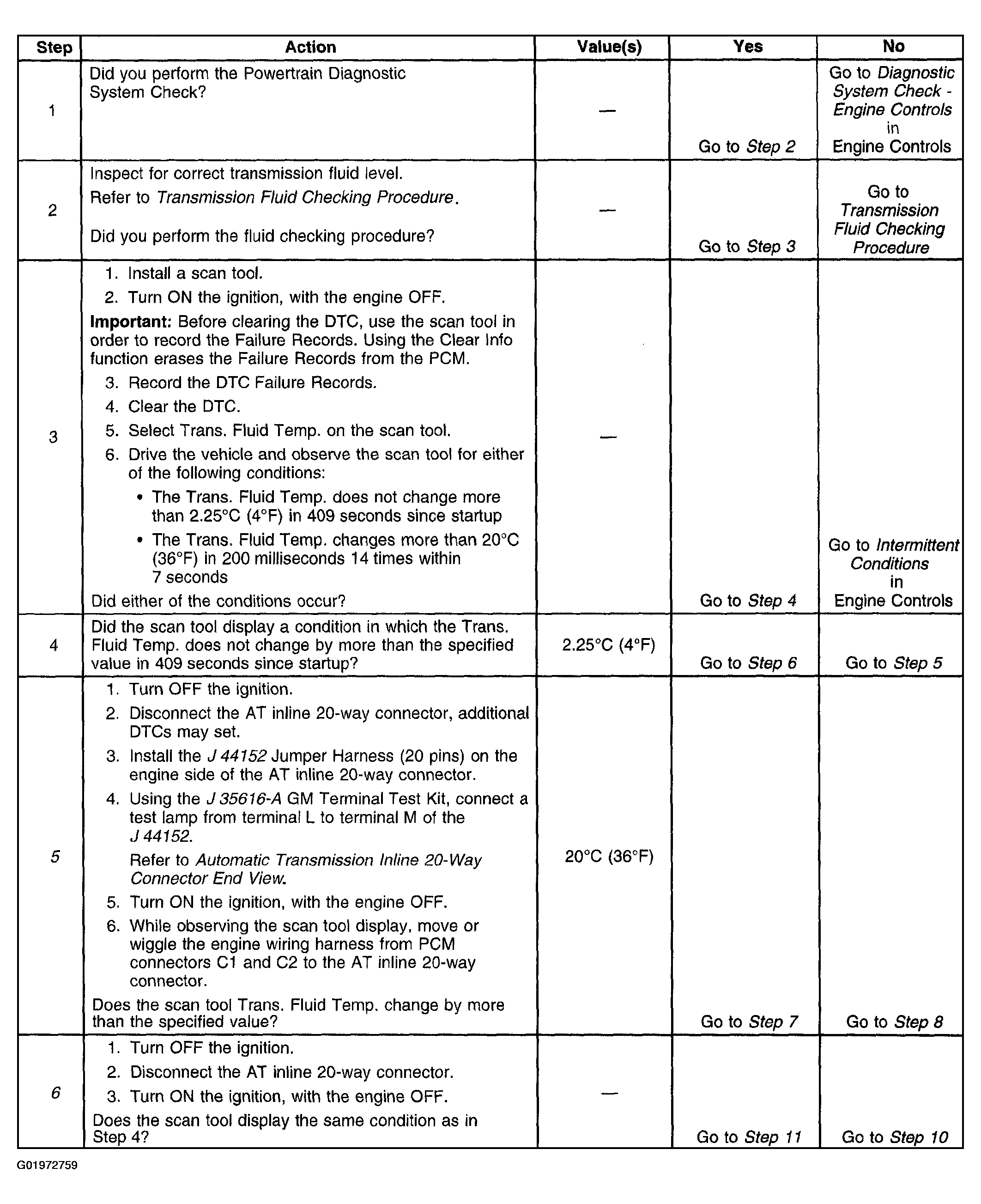

    Fig 1: DTC P0711 (1 Of 2)
    G01972759Courtesy of GENERAL MOTORS CORP.

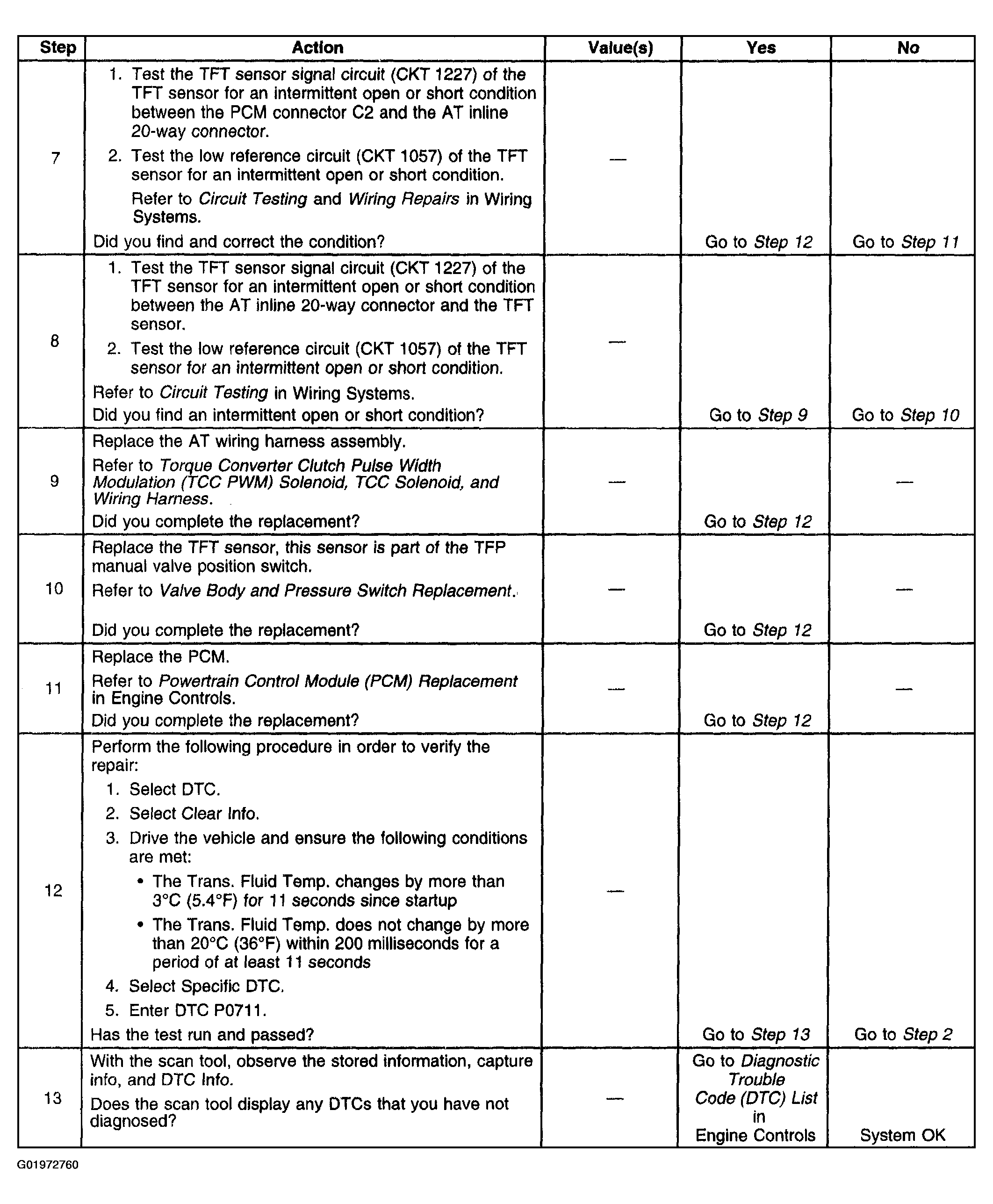

    Fig 2: DTC P0711 (2 Of 2)
    G01972760Courtesy of GENERAL MOTORS CORP.
