Forward Flush

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

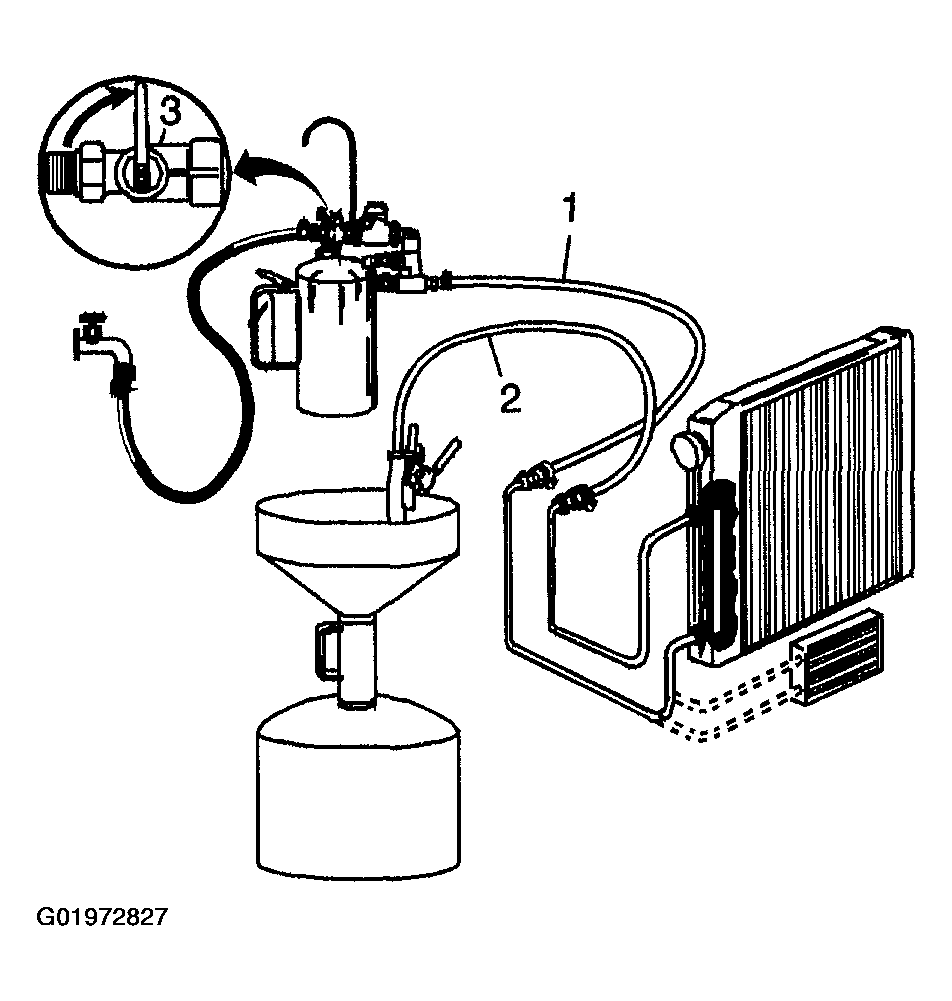

Fig 1: Disconnecting Hoses From Oil Cooler Pipes And Connect To Opposite Oil Cooler Pipe
G01972827Courtesy of GENERAL MOTORS CORP.
  1. Disconnect both hoses (1 and 2) from the oil cooler pipes and connect them to the opposite oil cooler pipe. This will allow the oil cooler and pipes to be flushed in the normal flow direction.
  2. Repeat Step 6 and 7 of the Back Flush.

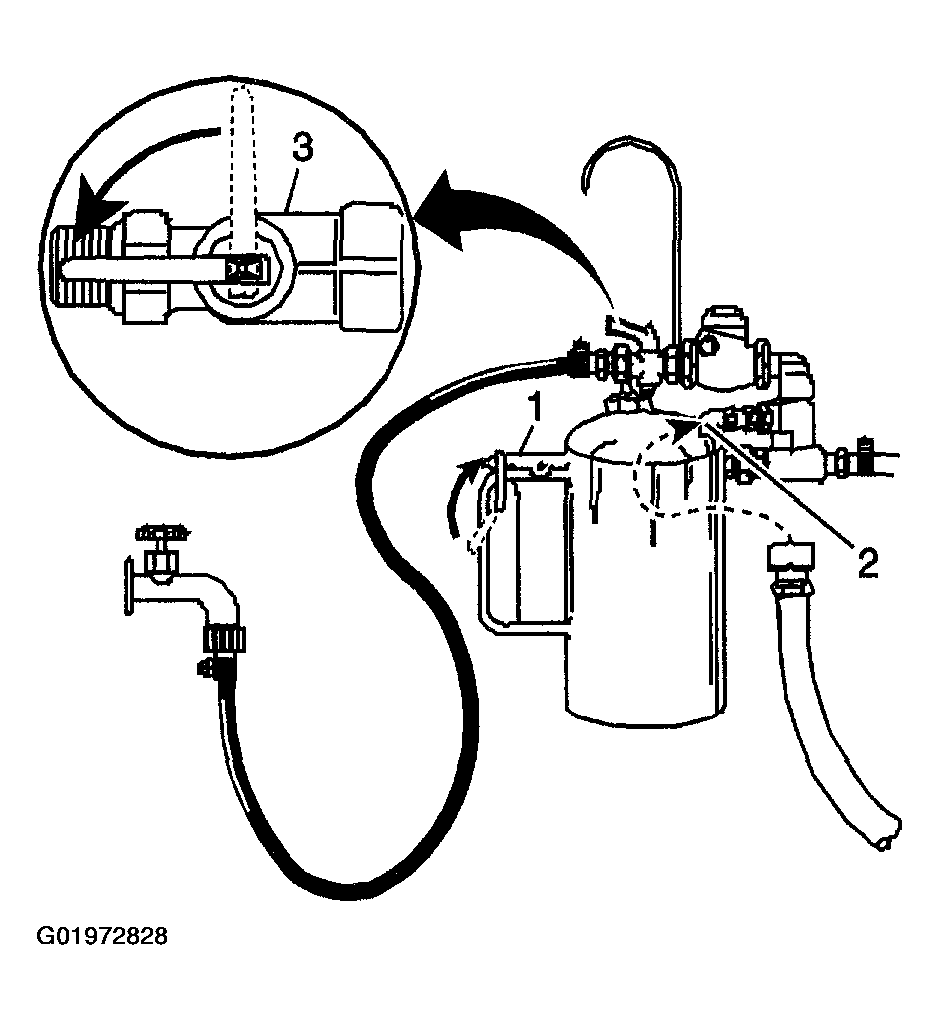

    Fig 2: Turning Transmission Oil Cooler Flusher Water Supply Valve To OFF Position
    G01972828Courtesy of GENERAL MOTORS CORP.
  3. Release the trigger (1) of the J 35944-A  and allow water only to rinse the oil cooler and pipes for 1 minute.
  4. Turn the J 35944-A  water supply valve (3) to the OFF position and turn OFF the water supply at the faucet.
  5. Attach the shop air supply to the flushing system feed air valve (2) on the J 35944-A  and blow out the water from the oil cooler and pipes. Continue, until no water comes out of the discharge hose.
