Component Location

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

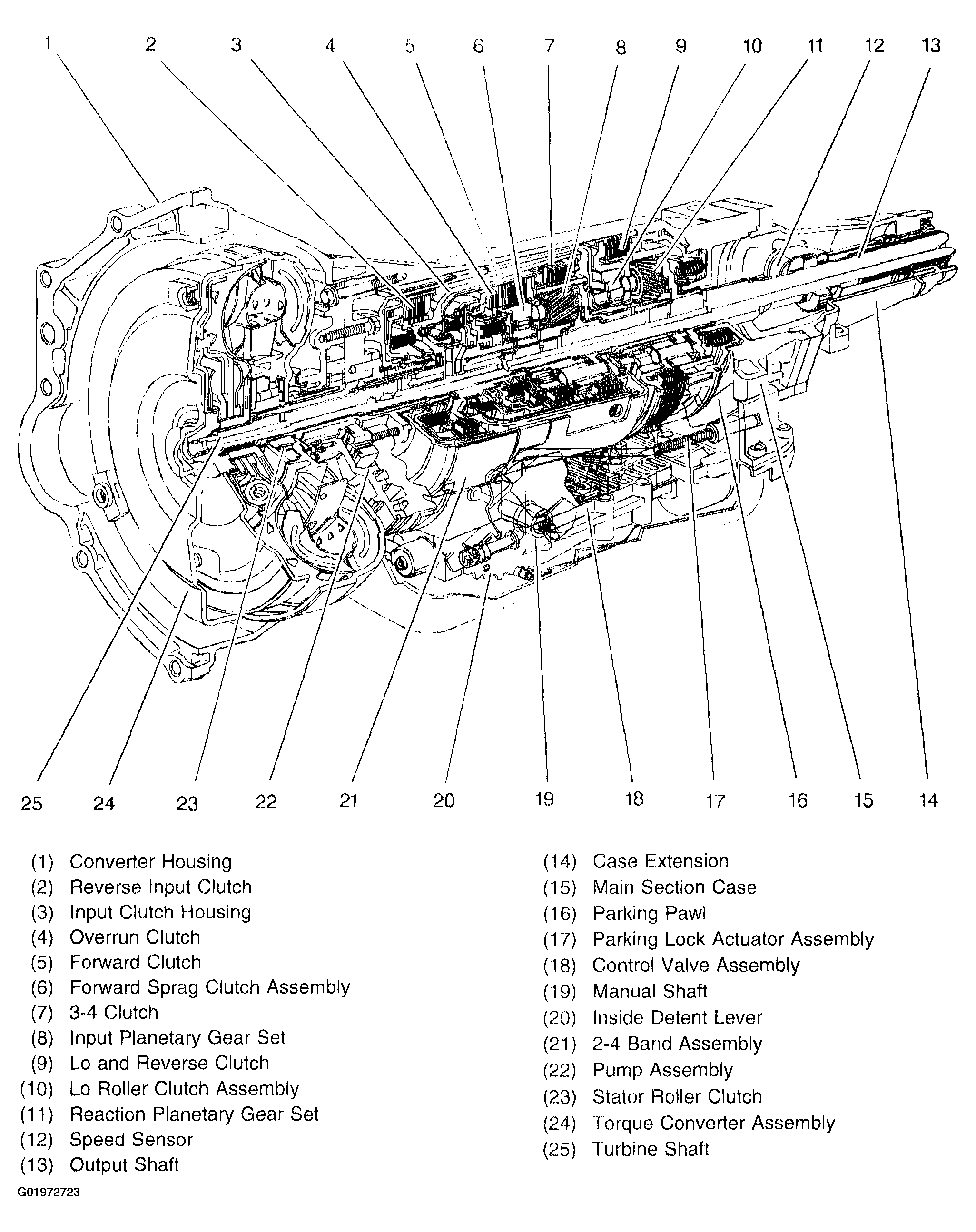

Fig 1: Transmission Components

Courtesy of GENERAL MOTORS CORP.

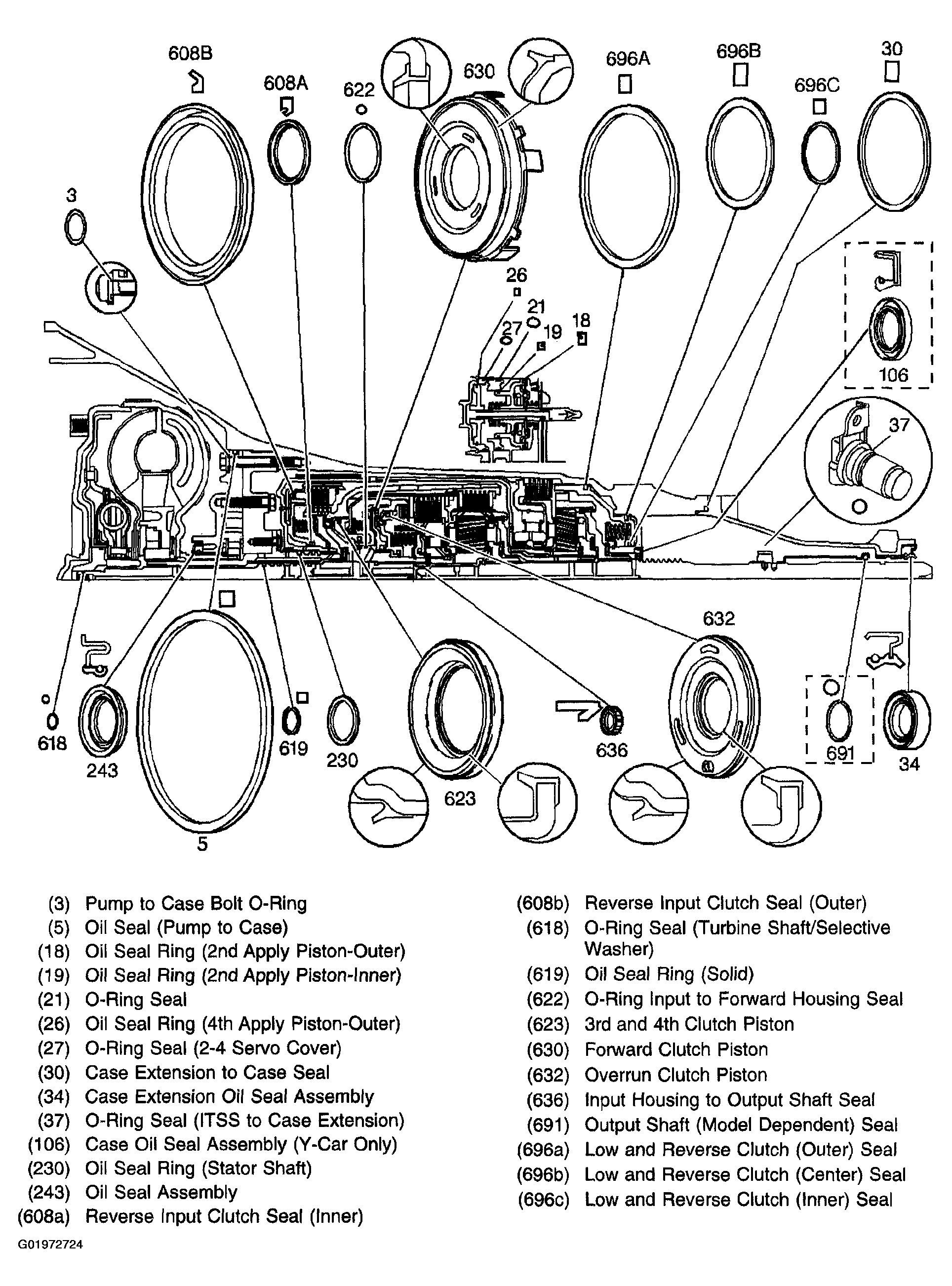

Fig 2: Transmission Seals

Courtesy of GENERAL MOTORS CORP.

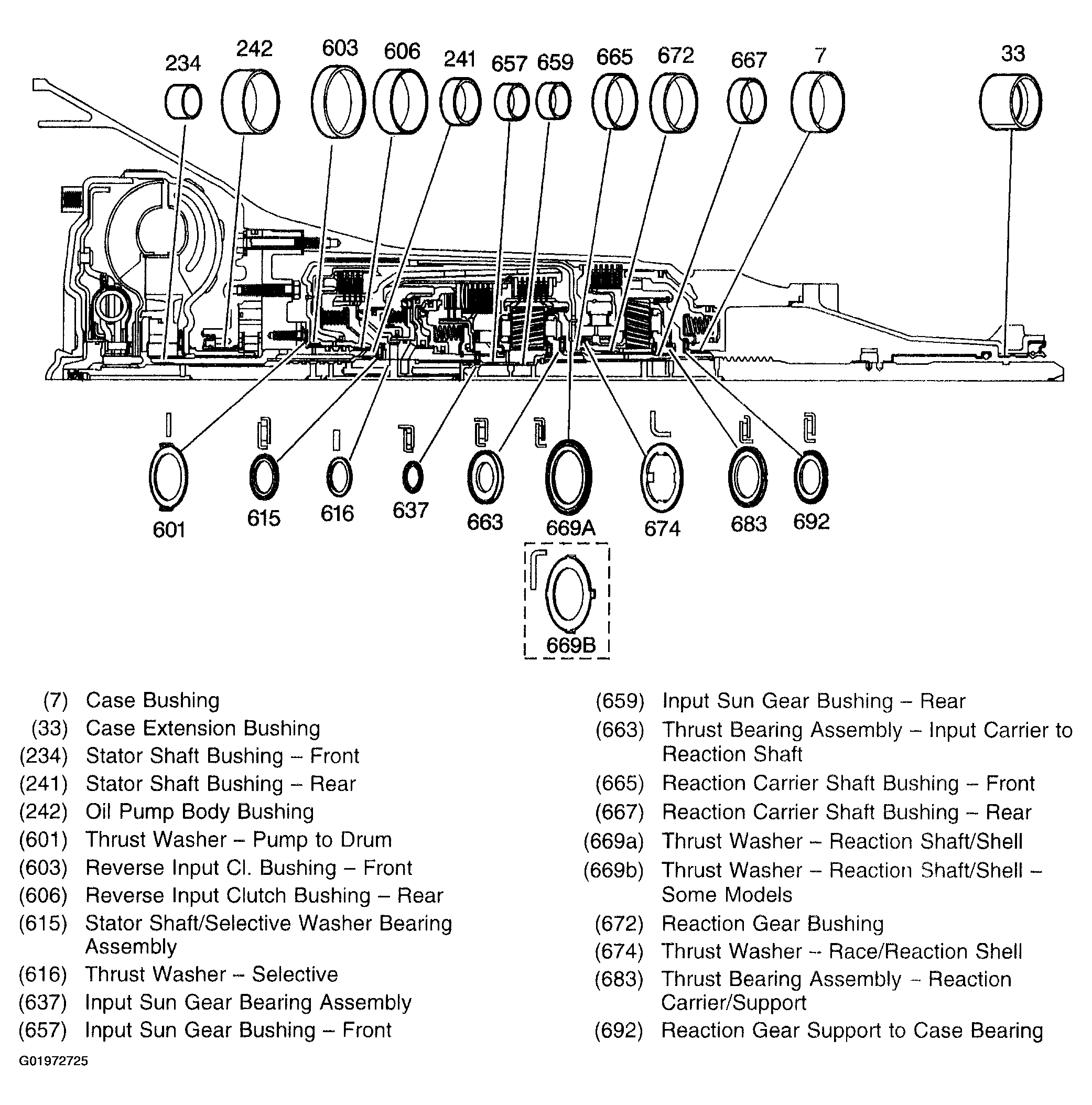

Fig 3: Transmission Bearings & Bushings

Courtesy of GENERAL MOTORS CORP.

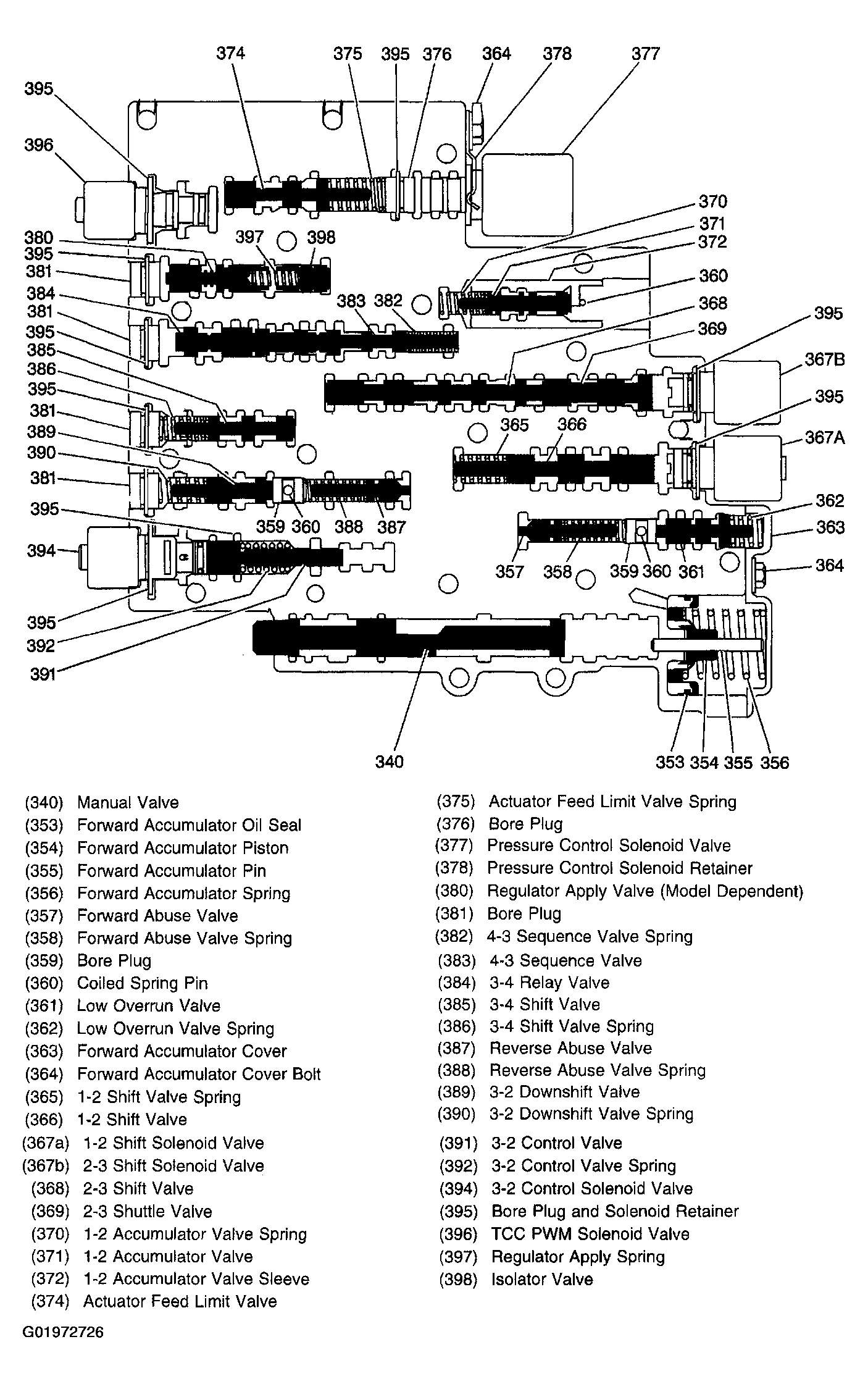

Fig 4: Transmission Valve Trains

Courtesy of GENERAL MOTORS CORP.
