Automatic Transmission Internal Connector End Views

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

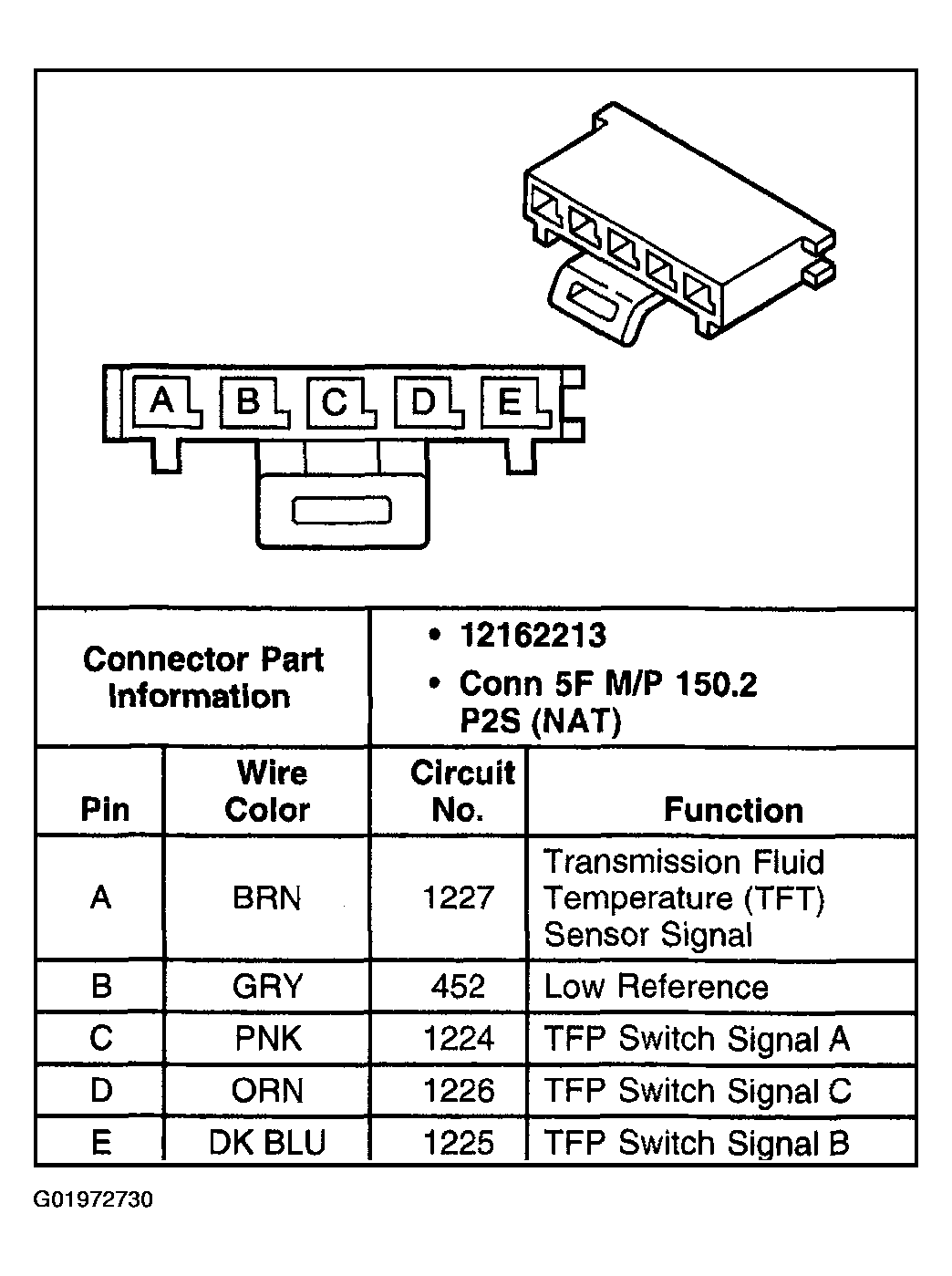

Fig 1: Automatic Transmission Fluid Pressure (TFP) Manual Valve Position Switch Connector, Wiring Harness Side

Courtesy of GENERAL MOTORS CORP.

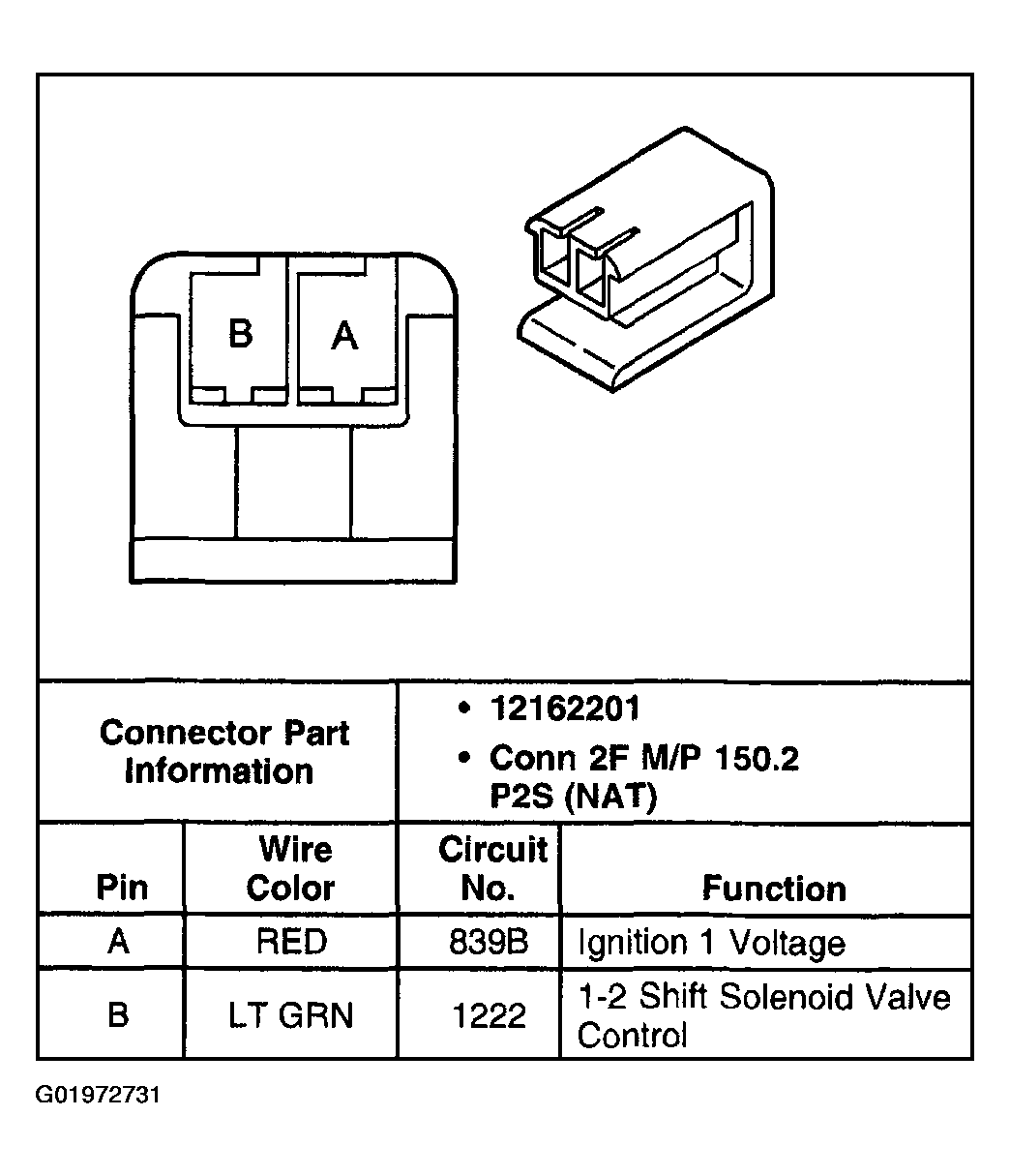

Fig 2: 1-2 Shift Solenoid (SS) Valve Connector, Wiring Harness Side

Courtesy of GENERAL MOTORS CORP.

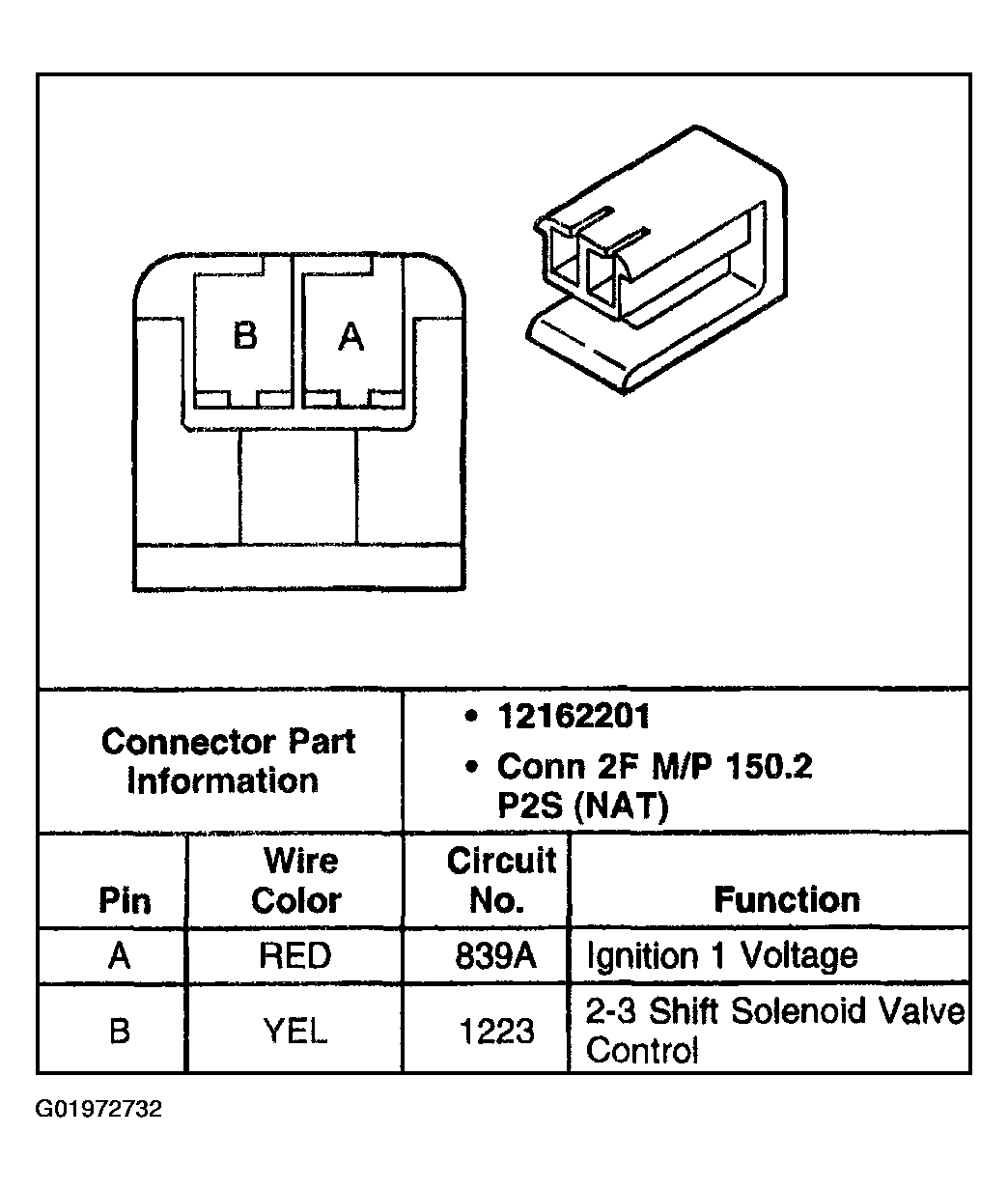

Fig 3: 2-3 Shift Solenoid (SS) Valve Connector, Wiring Harness Side

Courtesy of GENERAL MOTORS CORP.

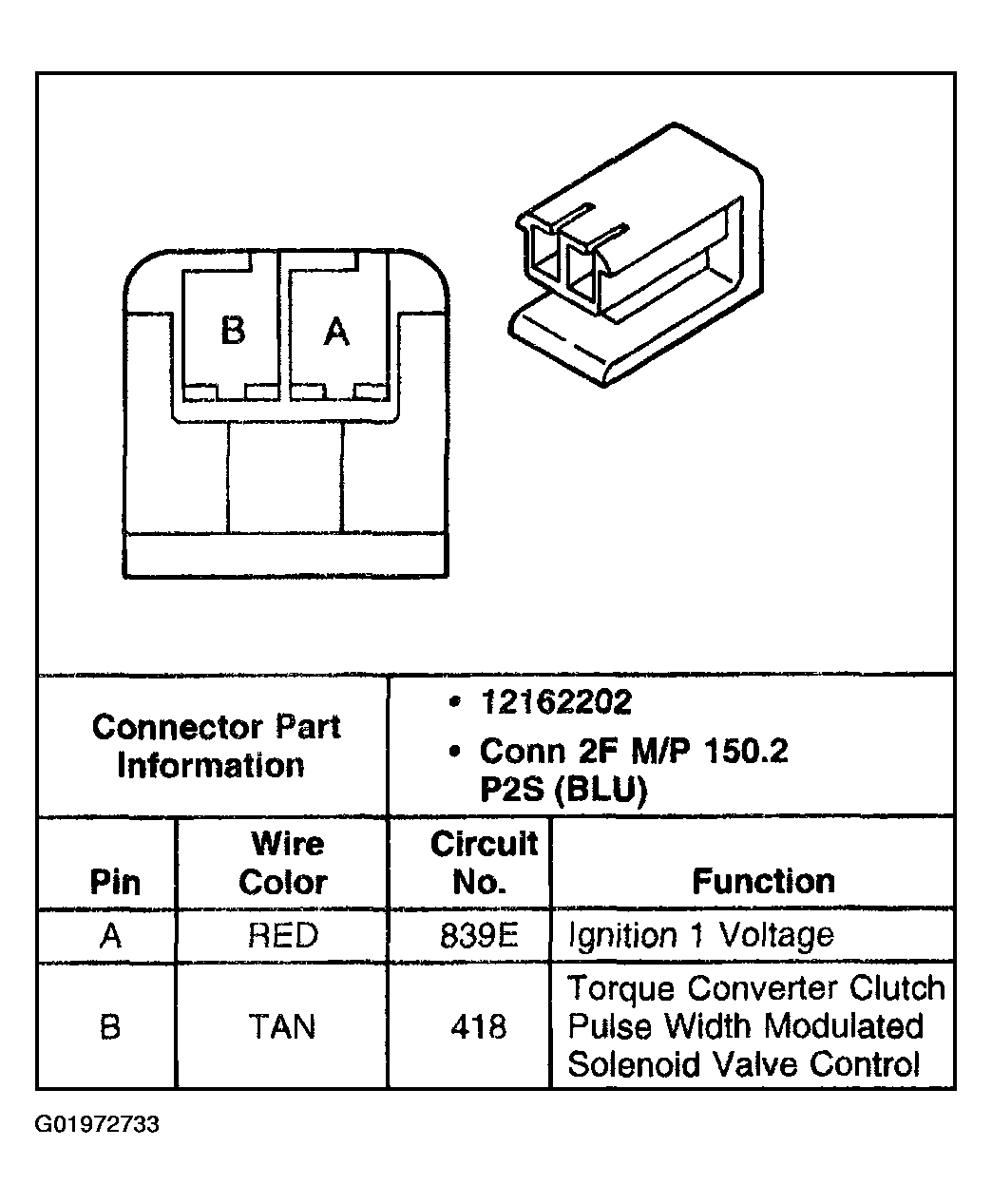

Fig 4: Torque Converter Clutch Pulse Width Modulated (TCC PWM) Solenoid Valve Connector, Wiring Harness Side

Courtesy of GENERAL MOTORS CORP.

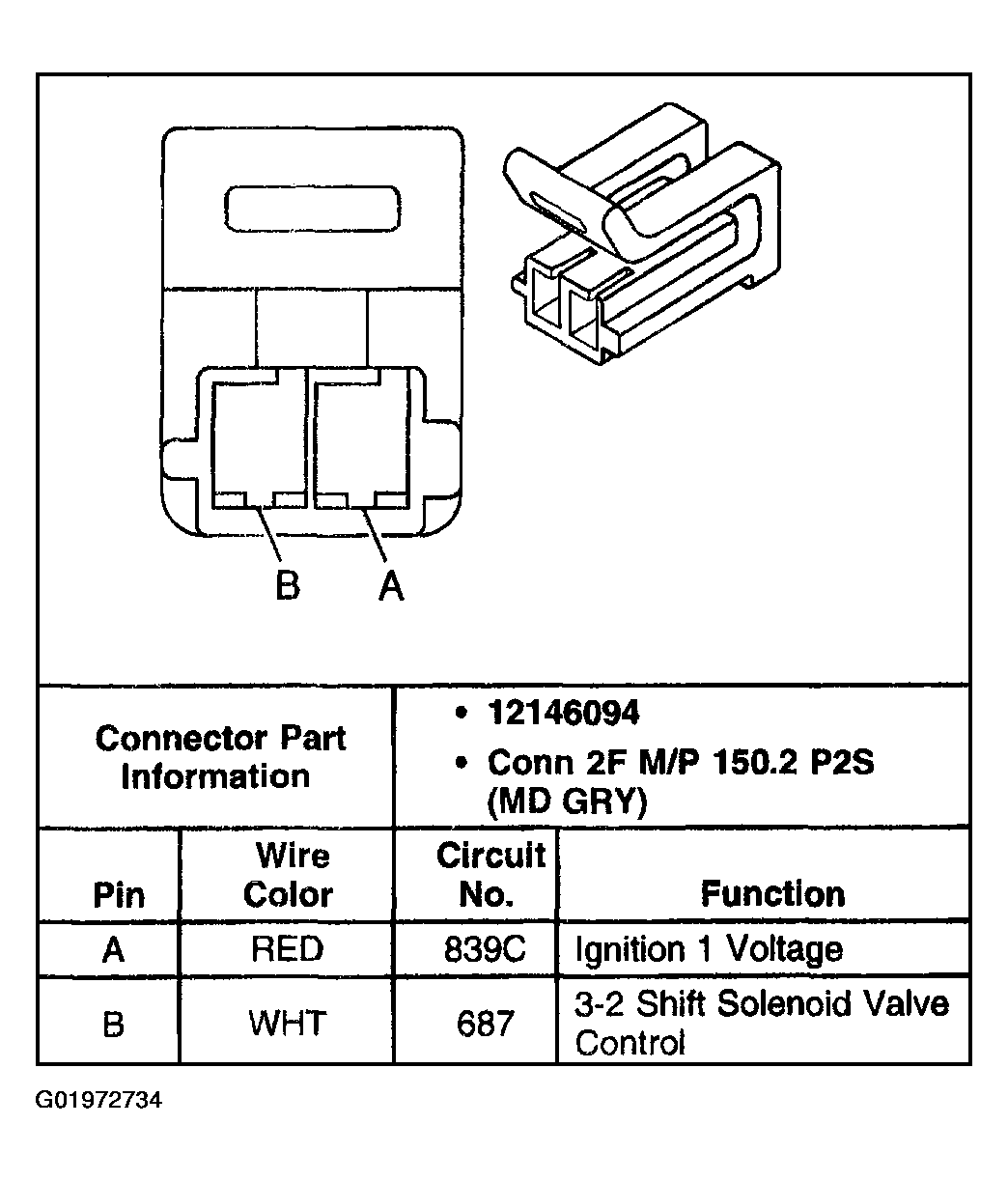

Fig 5: 3-2 Shift Solenoid (SS) Valve Assembly Connector, Wiring Harness Side

Courtesy of GENERAL MOTORS CORP.

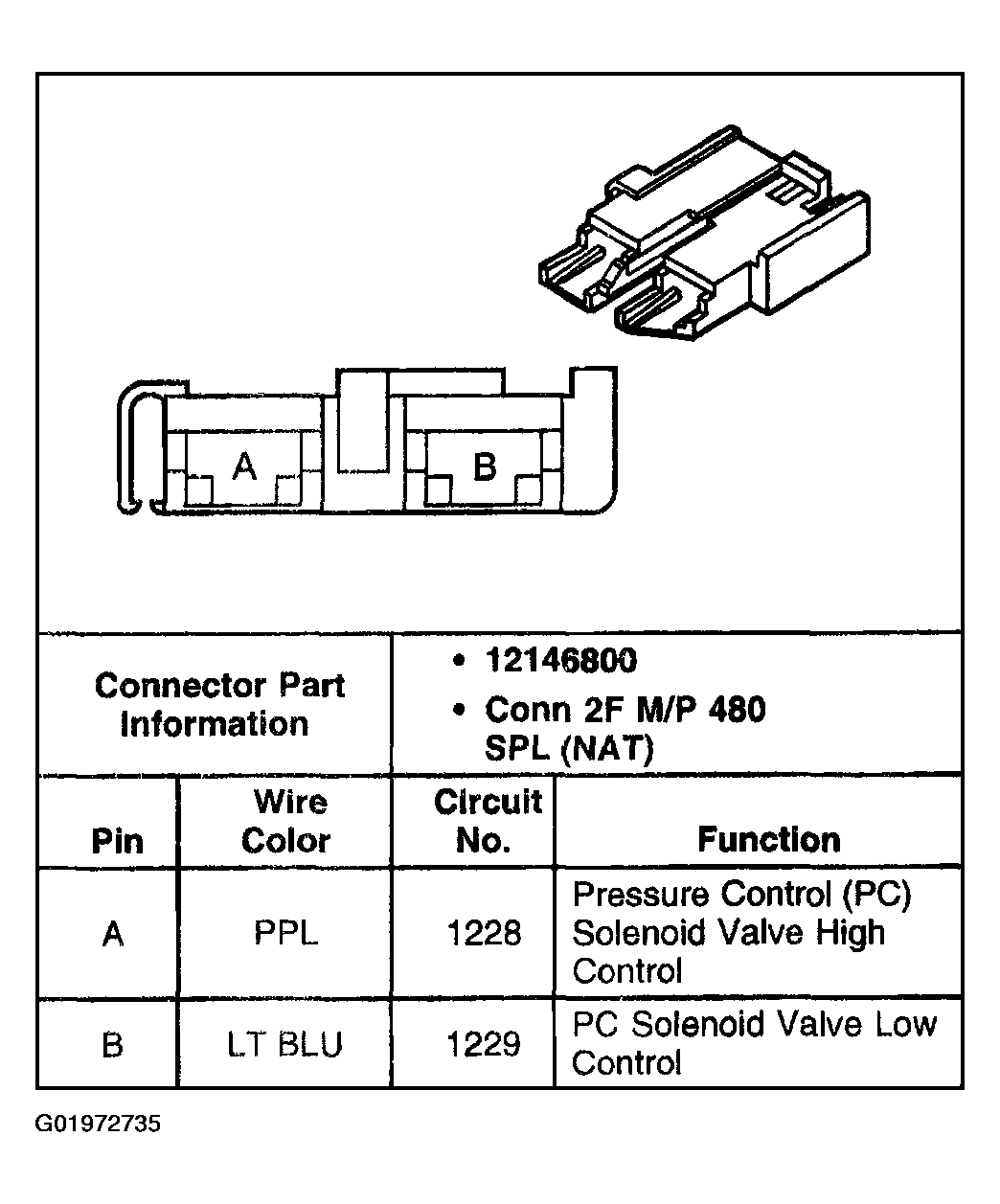

Fig 6: Pressure Control (PC) Solenoid Valve Connector, Wiring Harness Side

Courtesy of GENERAL MOTORS CORP.

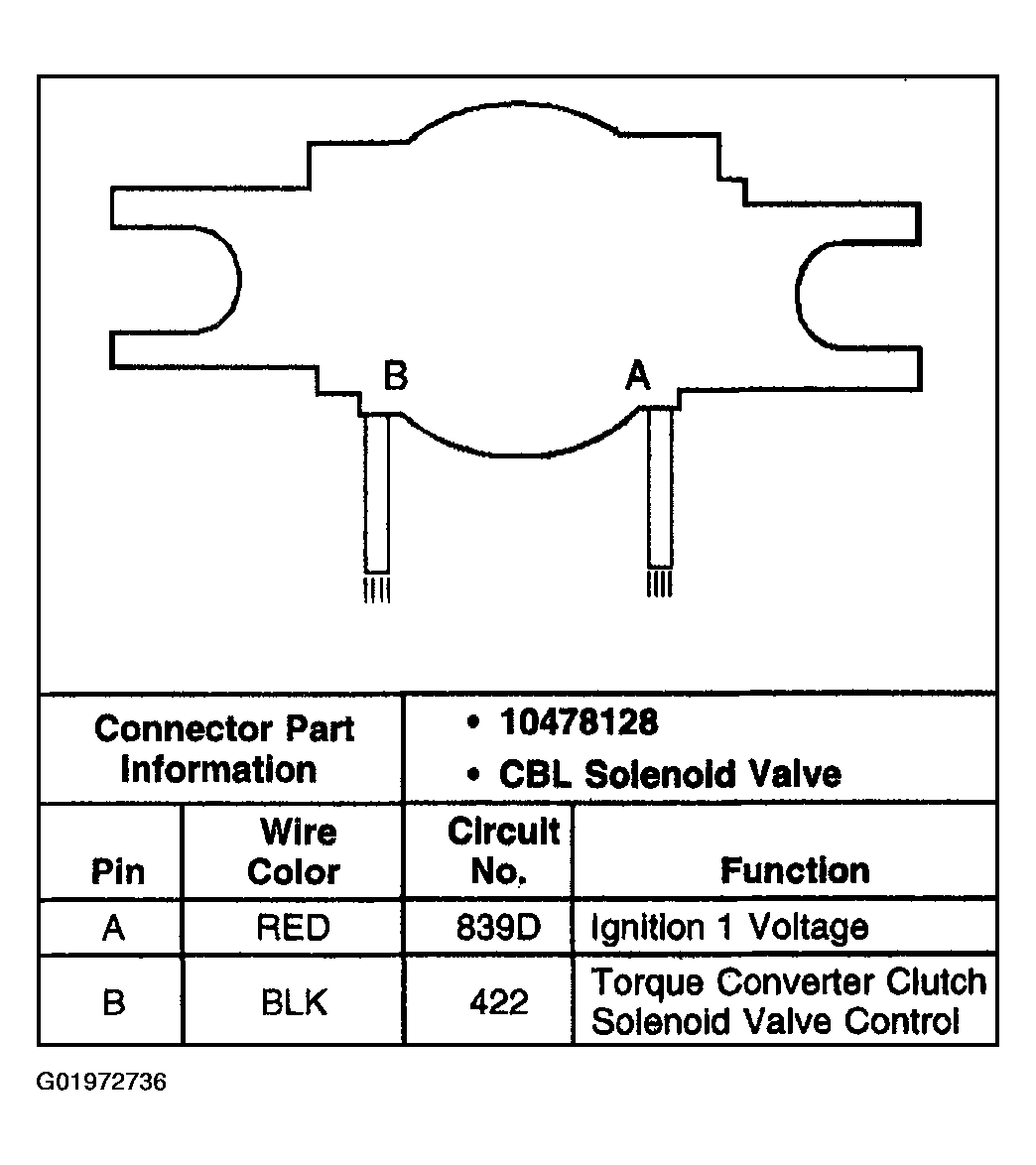

Fig 7: Torque Converter Clutch (TCC) Solenoid Valve Connector, Wiring Harness Side

Courtesy of GENERAL MOTORS CORP.
