Automatic Transmission Inline 20-Way Connector End View

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

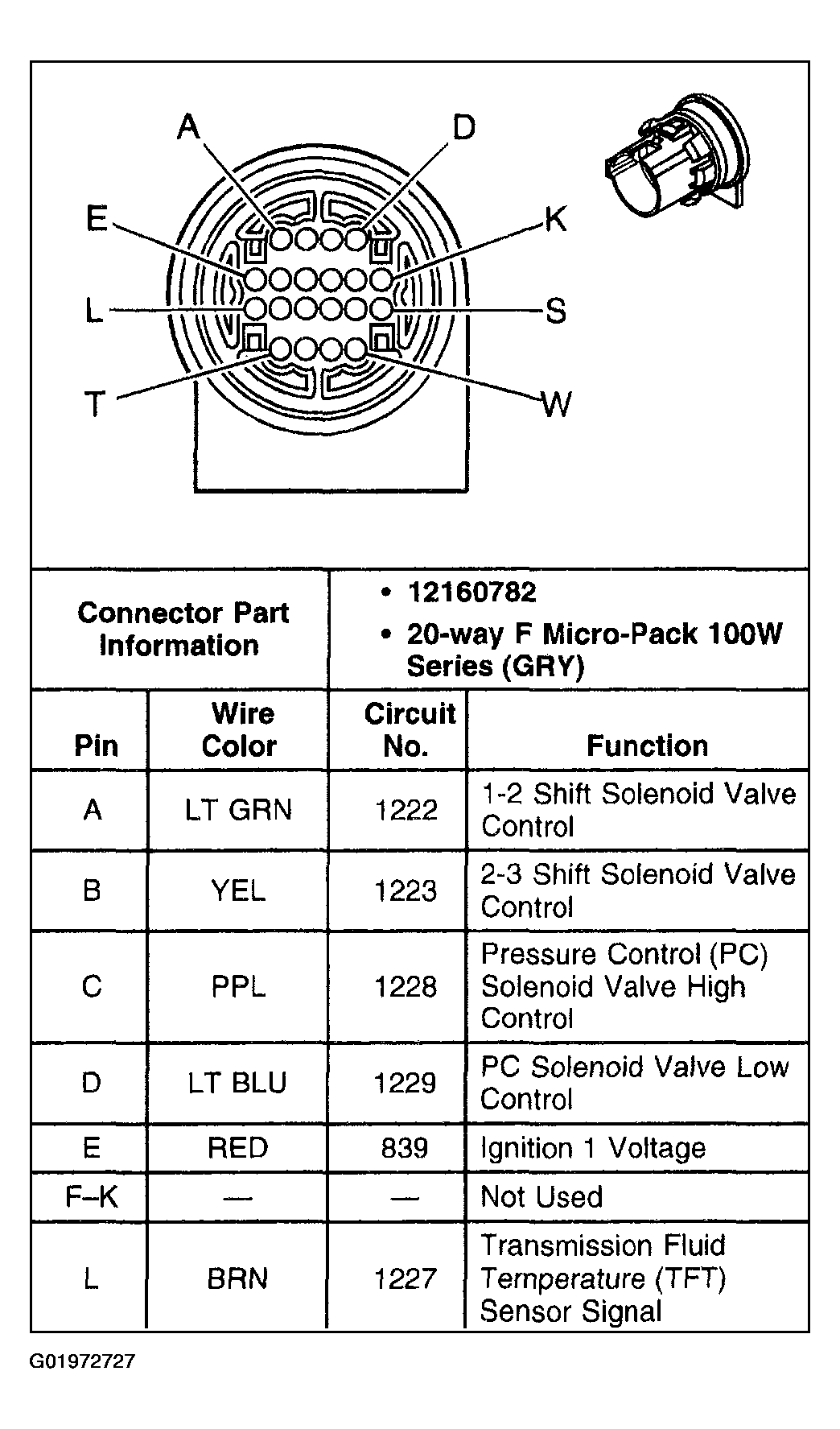

Fig 1: AT Inline 20-Way Connector, Transmission Side (1 Of 2)
G01972727Courtesy of GENERAL MOTORS CORP.

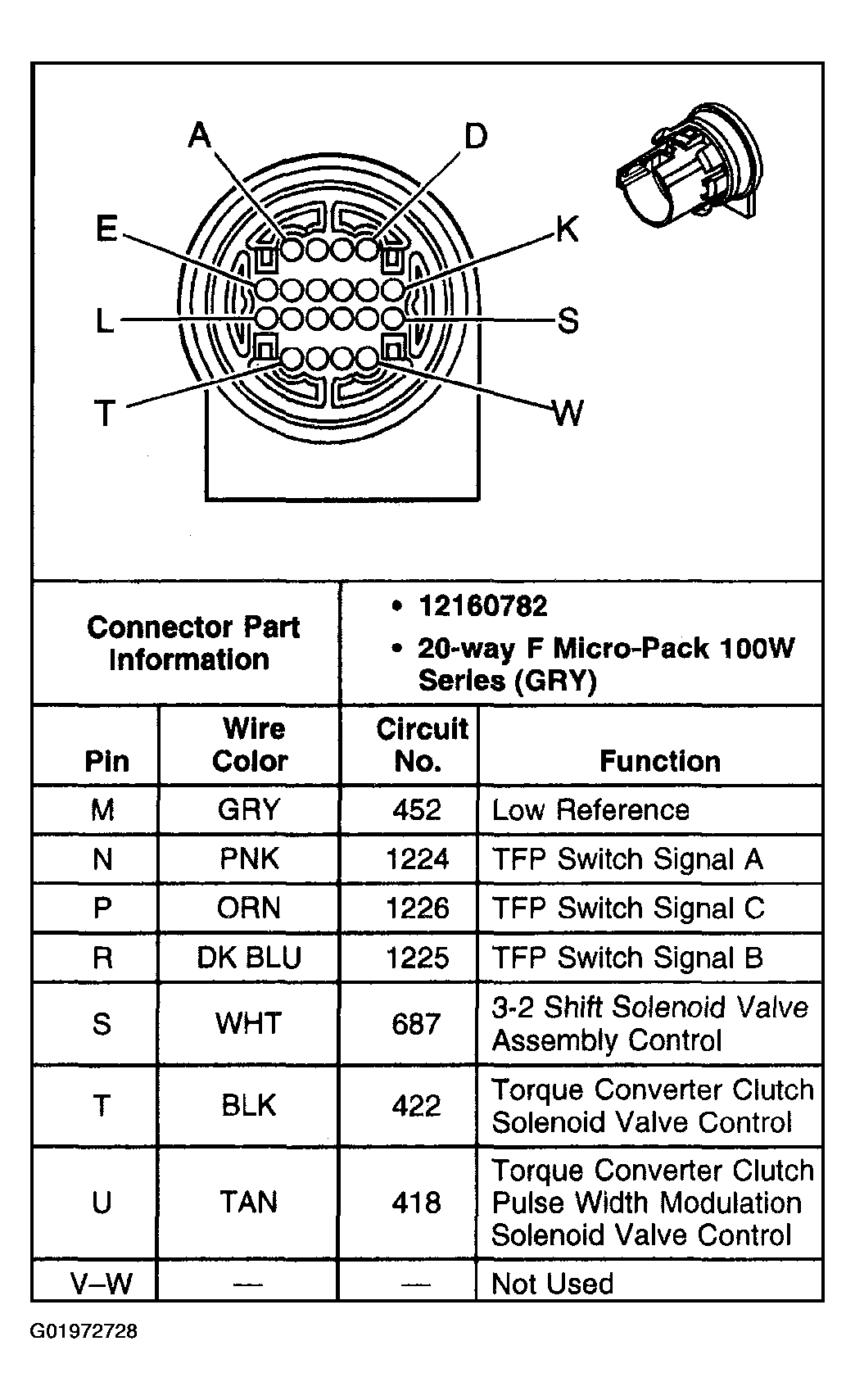

Fig 2: AT Inline 20-Way Connector, Transmission Side (2 Of 2)
G01972728Courtesy of GENERAL MOTORS CORP.

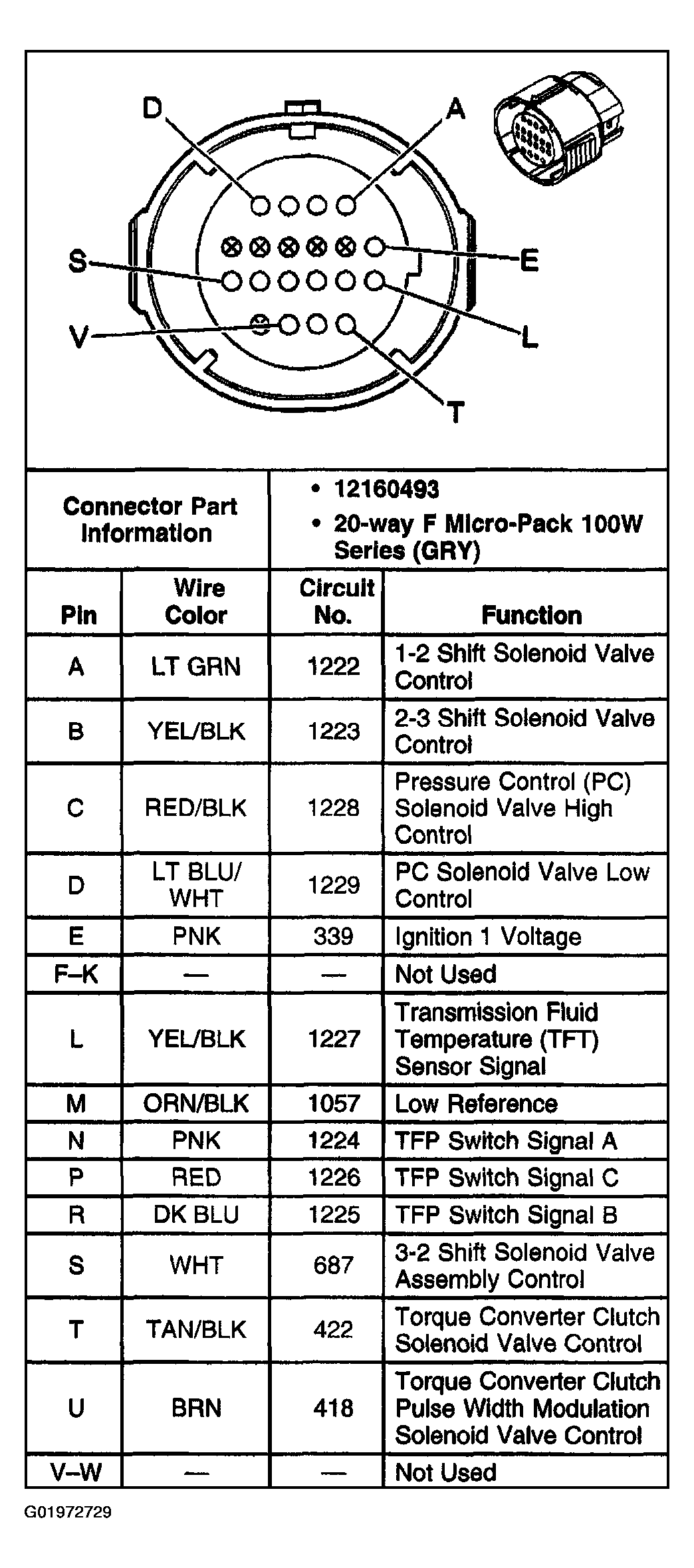

Fig 3: AT Inline 20-way Connector, Engine Side
G01972729Courtesy of GENERAL MOTORS CORP.
