Schematic and Routing Diagrams

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

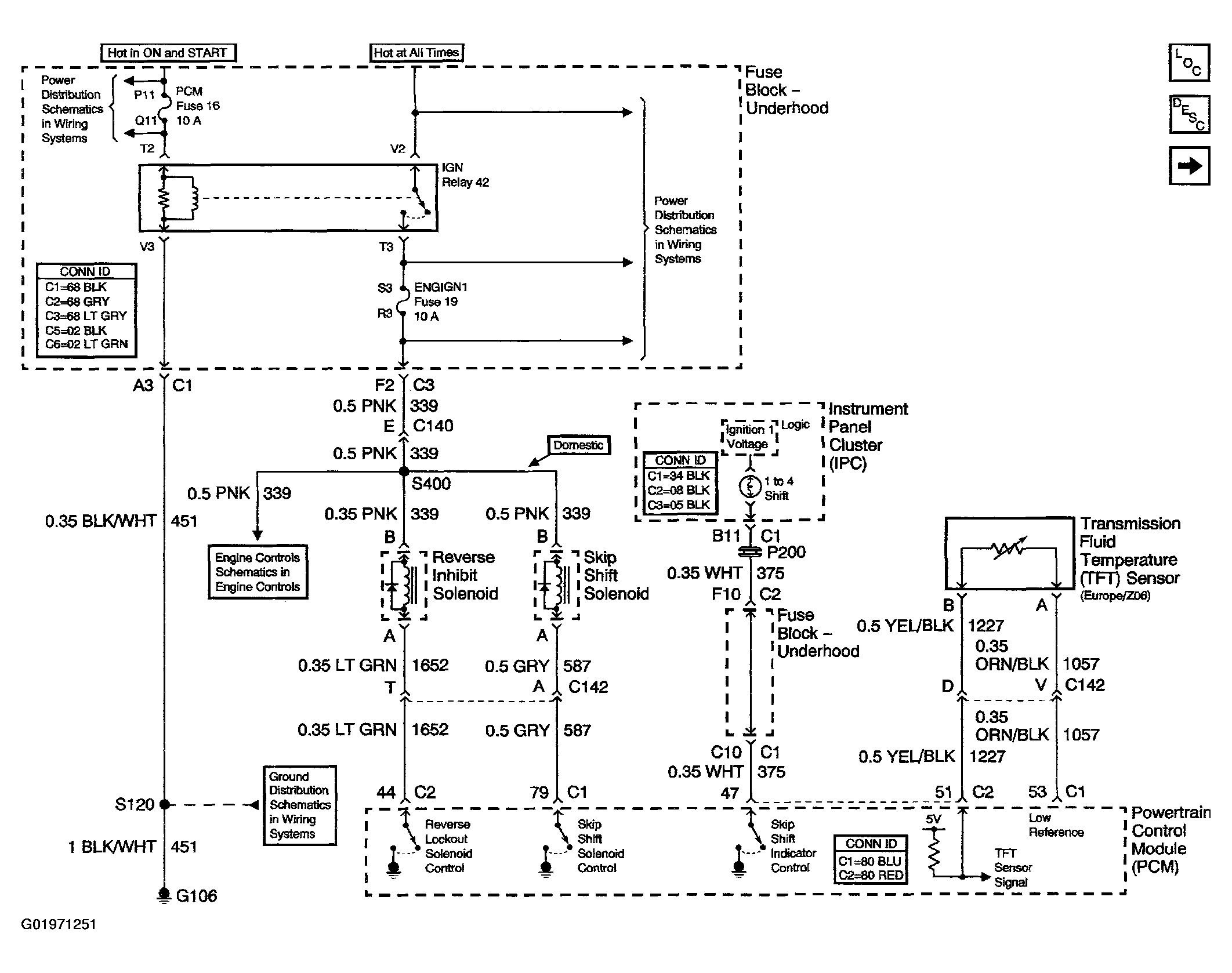

Fig 1: Manual Transmission Schematics (Solenoid Controls & TFT Sensor)

Courtesy of GENERAL MOTORS CORP.

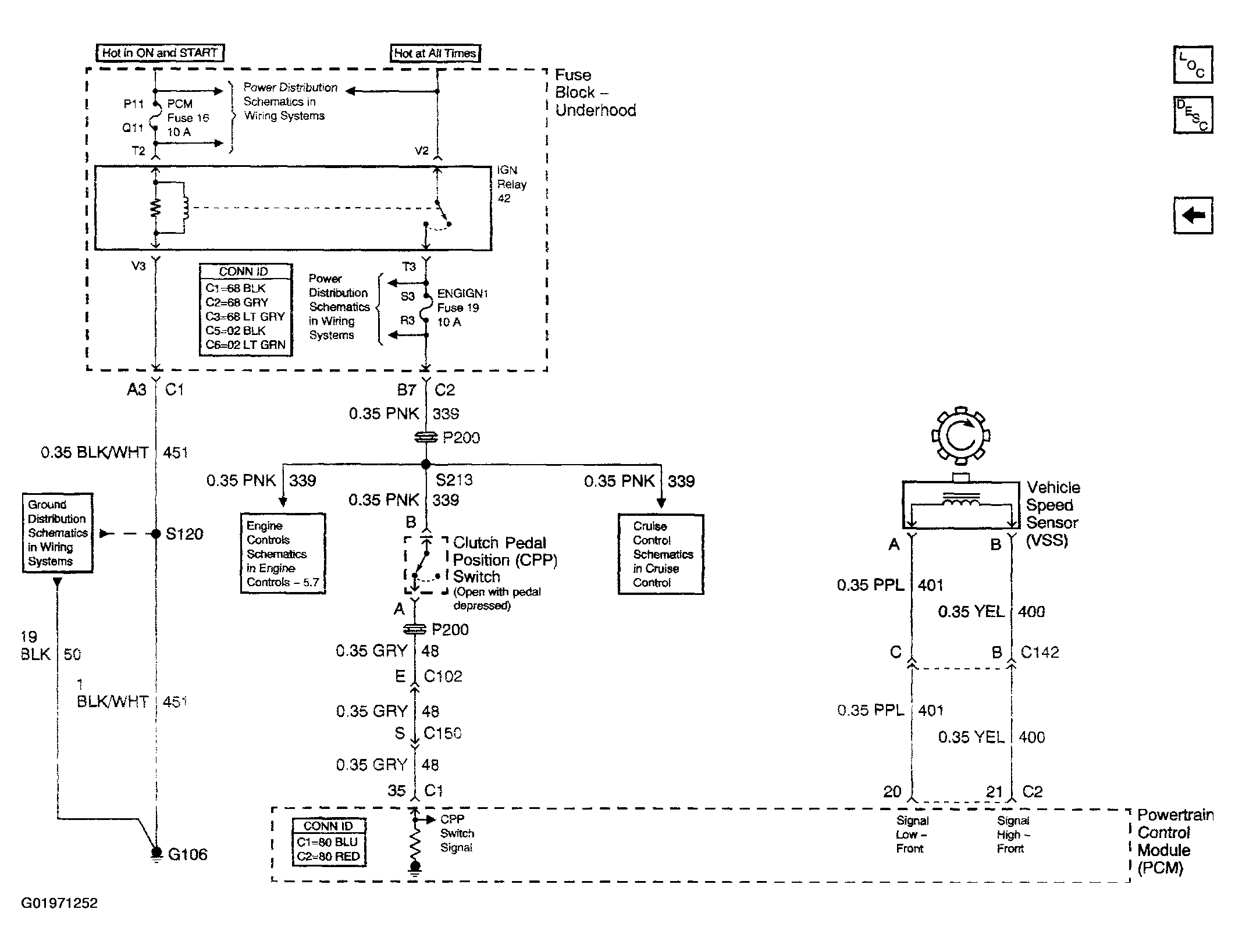

Fig 2: Manual Transmission Schematics (Clutch Pedal Position (CPP) Switch & Vehicle Speed Sensor (VSS))

Courtesy of GENERAL MOTORS CORP.
