Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Remove the reverse lockout solenoid. Refer to REVERSE LOCKOUT SOLENOID REPLACEMENT .
  3. Remove the transmission vent tube retaining bolt.
  4. Remove the transmission vent tube.

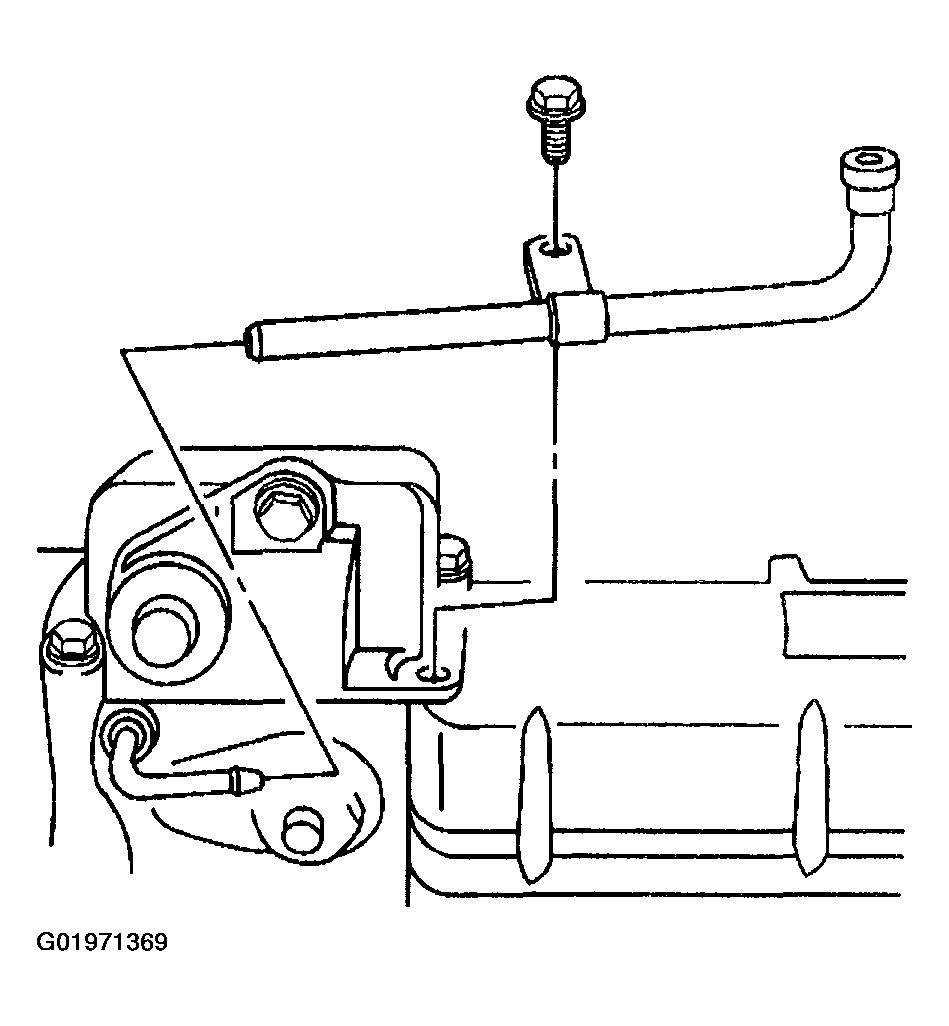

    Fig 1: Transmission Vent Tube
    G01971369Courtesy of GENERAL MOTORS CORP.
