Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the transmission vent tube.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the transmission vent tube retaining bolt.

    Tighten

    Tighten the transmission vent tube retaining bolt to 20 N.m (15 lb ft).

  3. Install the reverse lockout solenoid. Refer to REVERSE LOCKOUT SOLENOID REPLACEMENT .
  4. Lower the vehicle.

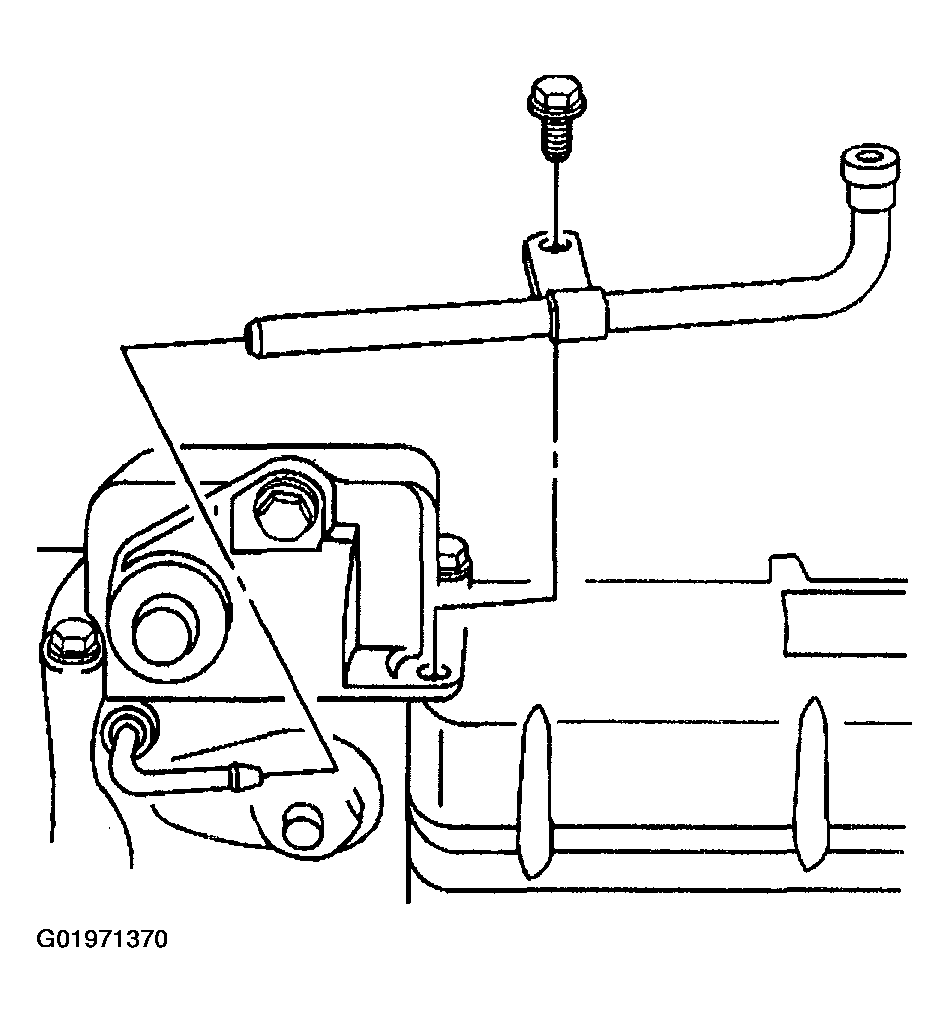

    Fig 1: Transmission Vent Tube
    G01971370Courtesy of GENERAL MOTORS CORP.
