Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

Using the J 41099 , install the reverse lockout solenoid.
Tighten

Tighten the reverse lockout solenoid to 40 N.m (30 lb ft).

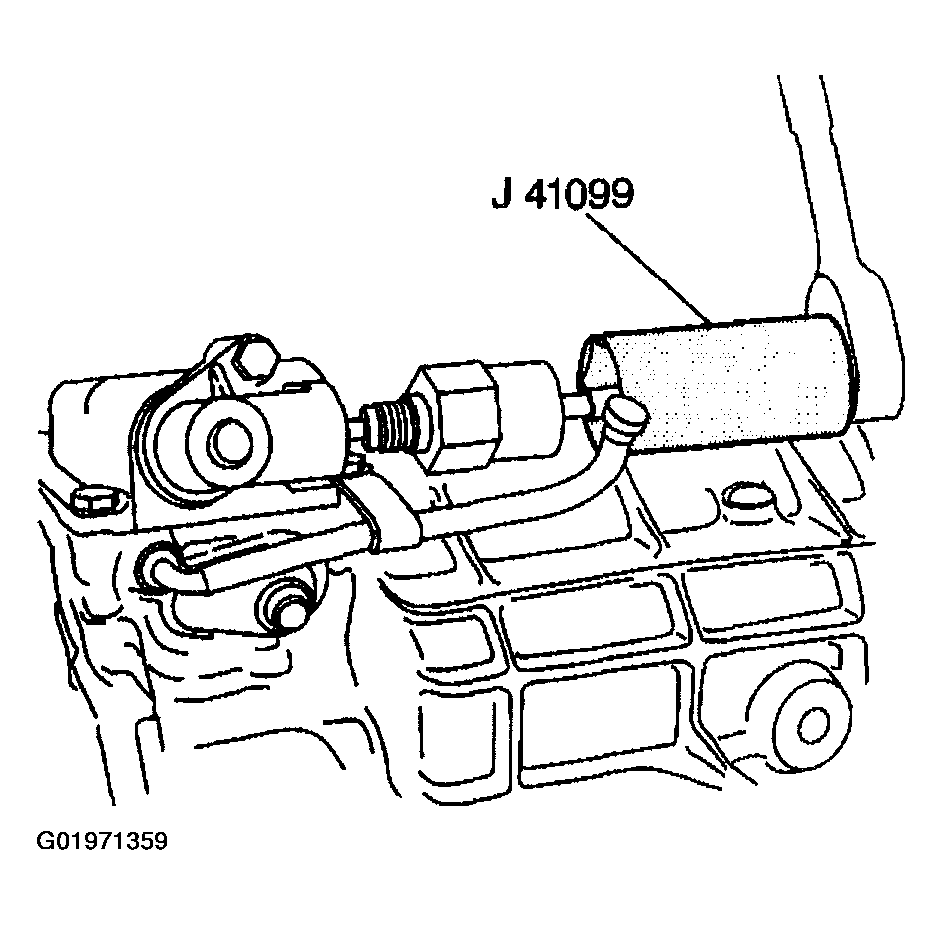

Fig 1: Reverse Lockout Solenoid
Courtesy of GENERAL MOTORS CORP.
Connect the reverse lockout solenoid electrical connector.

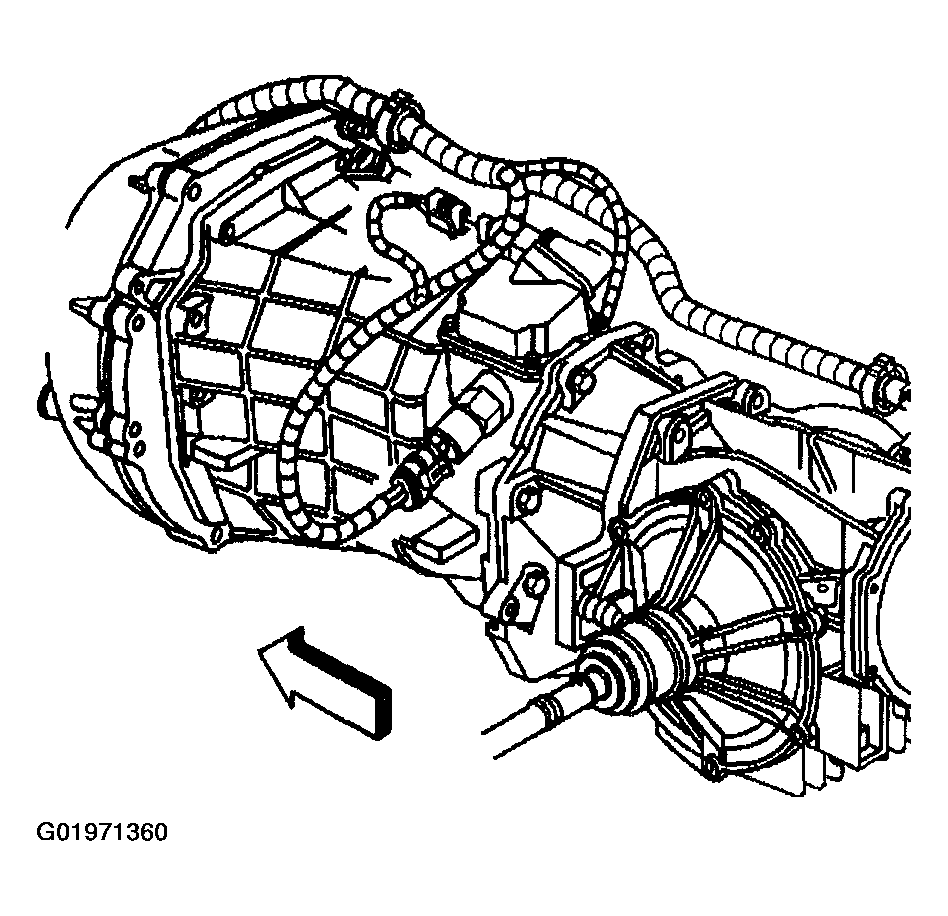

Fig 2: Connecting Reverse Lockout Solenoid Electrical Connector
Courtesy of GENERAL MOTORS CORP.
Slowly raise the rear suspension crossmember to seat to the vehicle frame rails.
Using ONLY HAND TOOLS, install NEW rear suspension crossmember mounting nuts.
Tighten

Tighten the rear suspension crossmember mounting nuts to 110 N.m (81 lb ft).
Remove the transmission jack from the rear suspension crossmember.
Connect the wiring harness and brake pipe clip retainers to the rear suspension crossmember.
Install the rear transverse spring. Refer to REAR TRANSVERSE SPRING REPLACEMENT in Rear Suspension.
Remove the tie-off retainers from the muffler assemblies.
Install the intermediate exhaust pipe to muffler bolts.
Tighten

Tighten the intermediate exhaust pipe to muffler bolts to 50 N.m (37 lb ft).

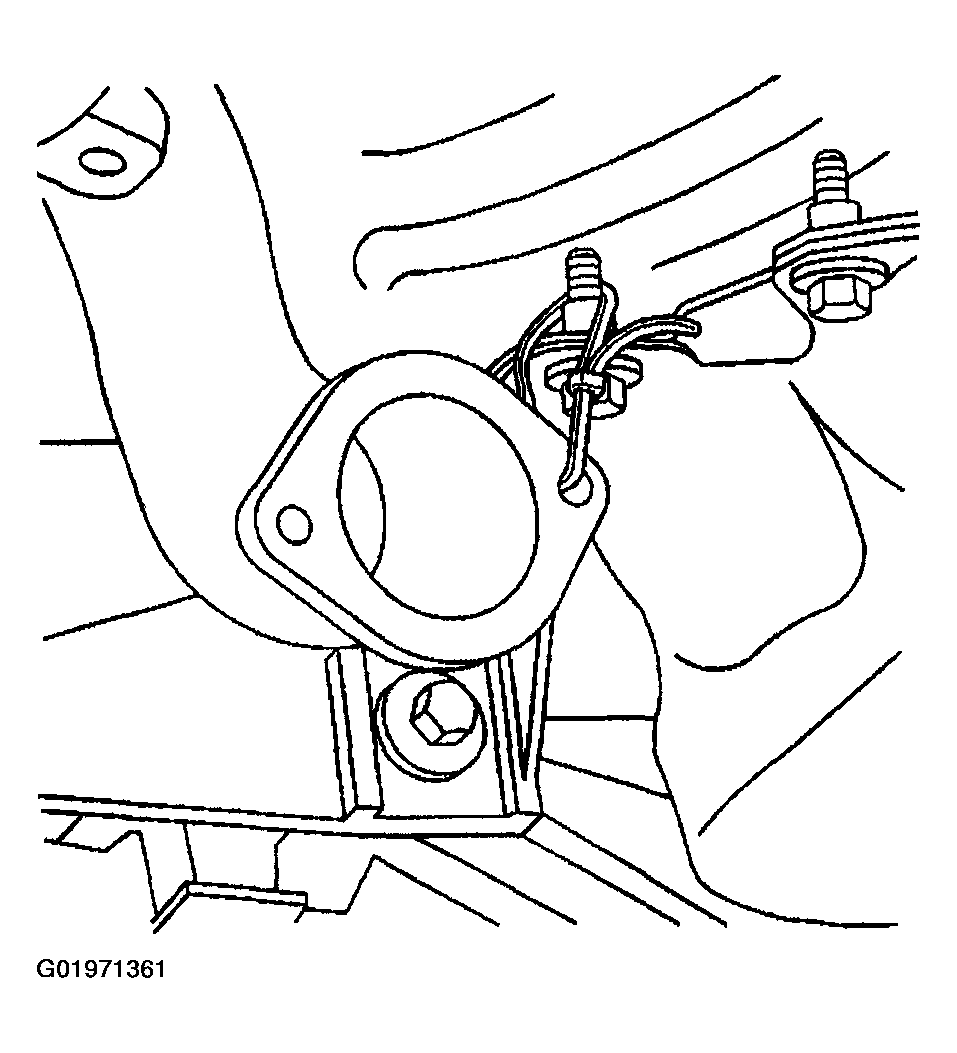

Fig 3: Installing Intermediate Exhaust Pipe To Muffler Bolts
Courtesy of GENERAL MOTORS CORP.
Install the rear tire and wheel assemblies. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
Lower the vehicle.
Connect the negative battery cable.
Tighten

Tighten the negative battery cable bolt to 15 N.m (11 lb ft).
Program the transmitters. Refer to TRANSMITTER PROGRAMMING in Keyless Entry.
