Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Disconnect the gear select solenoid electrical connector.

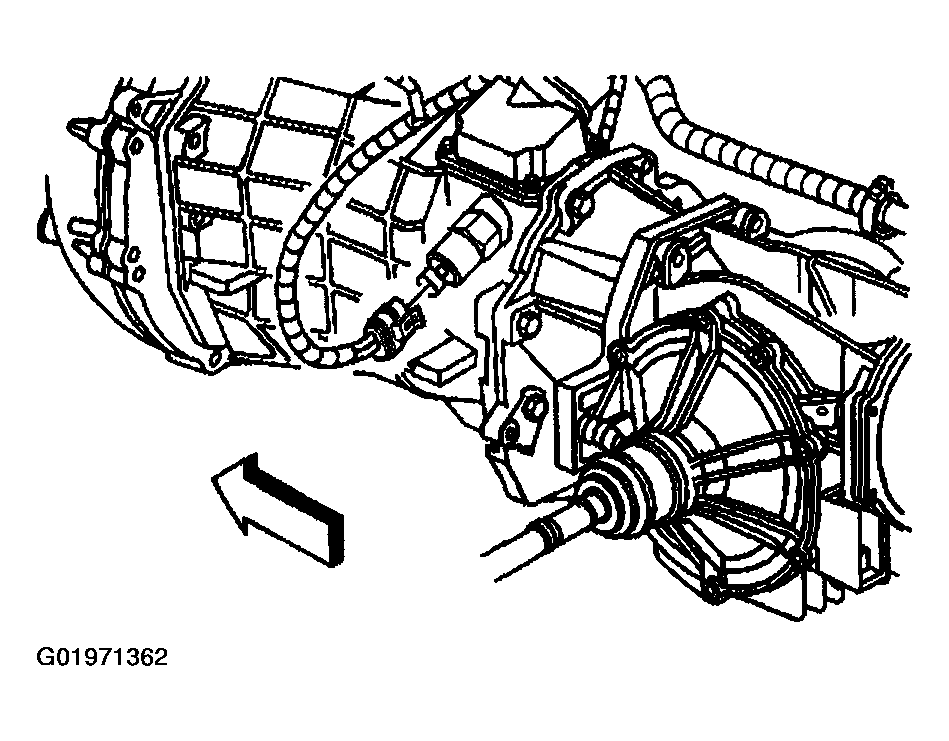

    Fig 1: Disconnecting Gear Select Solenoid Electrical Connector
    G01971362Courtesy of GENERAL MOTORS CORP.
  3. Using the J 41099  , remove the gear select solenoid.

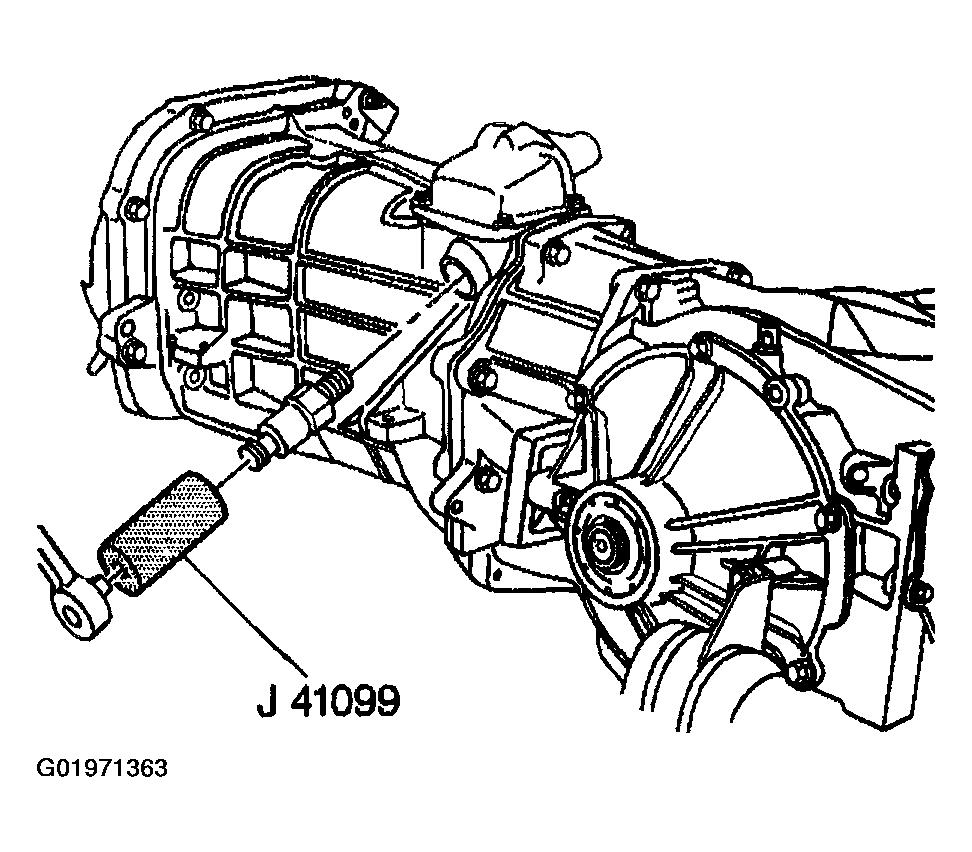

    Fig 2: Using J 41099 To Remove Gear Select Solenoid
    G01971363Courtesy of GENERAL MOTORS CORP.
