Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Raise and suitably support the vehicle. Refer to TESTING FOR INTERMITTENT AND POOR CONNECTIONS in General Information.
Remove the catalytic converter. Refer to CATALYTIC CONVERTER REPLACEMENT in Engine Exhaust.
Disconnect the backup lamp switch electrical connector.

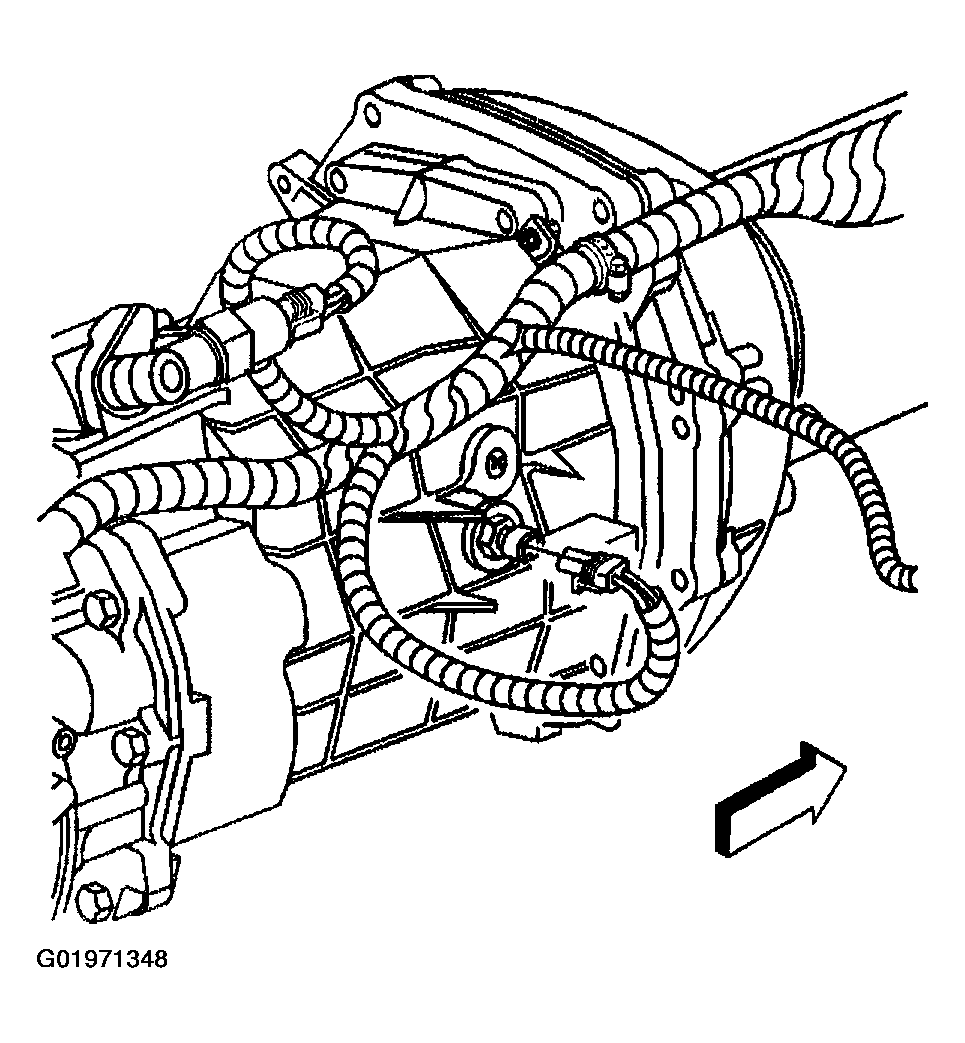

Fig 1: Disconnecting Backup Lamp Switch Electrical Connector
Courtesy of GENERAL MOTORS CORP.
Remove the backup lamp switch.

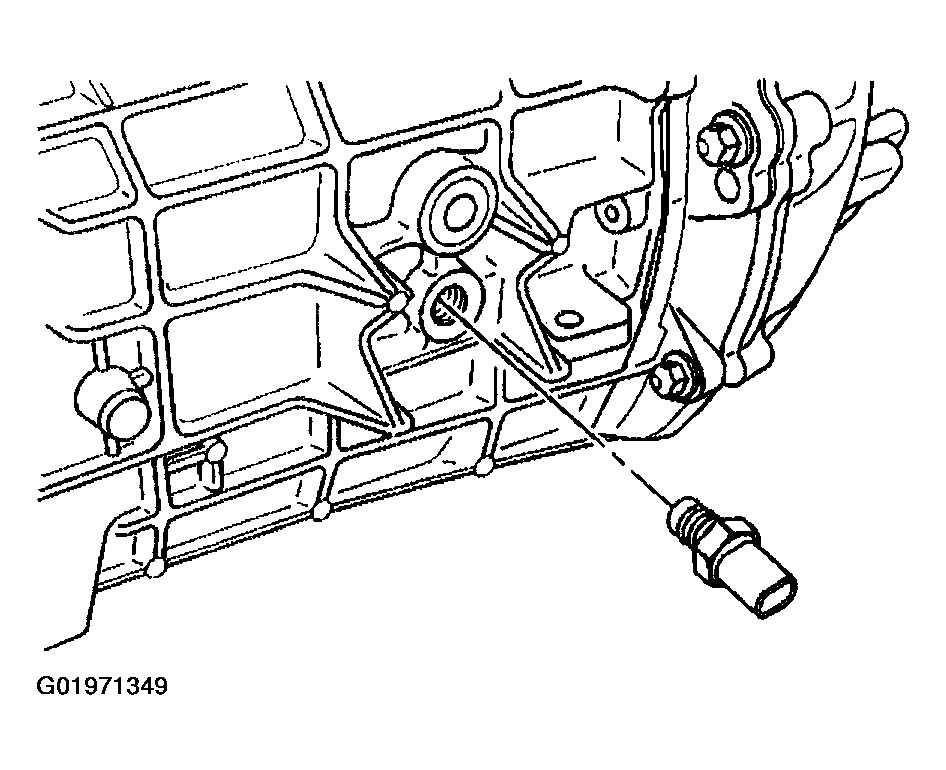

Fig 2: Backup Lamp Switch
Courtesy of GENERAL MOTORS CORP.
