DTC P0803: Internal Fault Detection Circuit: Notes

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

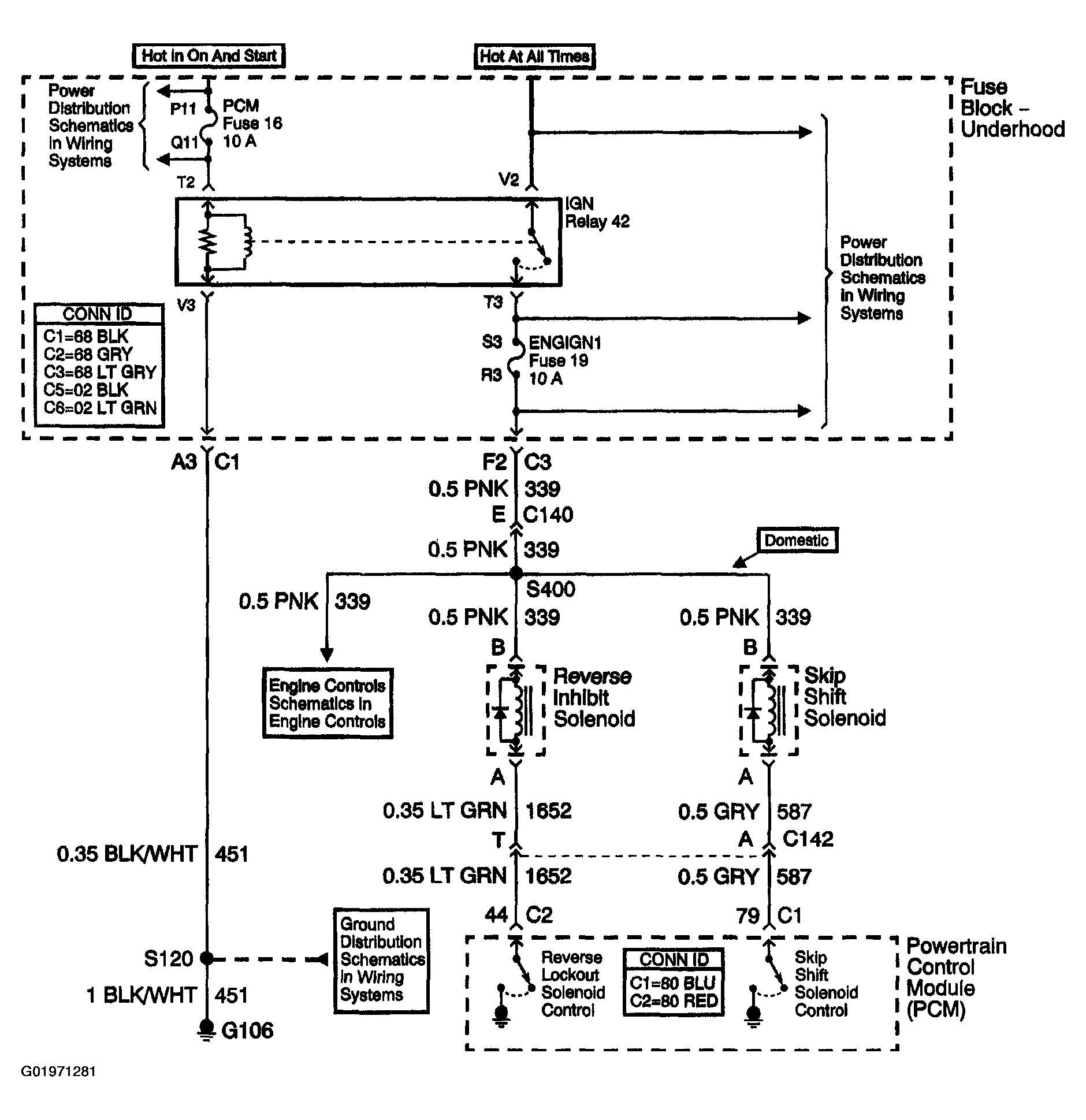

Fig 1: DTC P0803 Circuit Diagram
G01971281Courtesy of GENERAL MOTORS CORP.
