Section 1192 (Manual Transmission - Mm6/M12)
>>
Component Locator
>>
Manual Transmission Component Views
Manual Transmission Component Views
WARNING:
This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

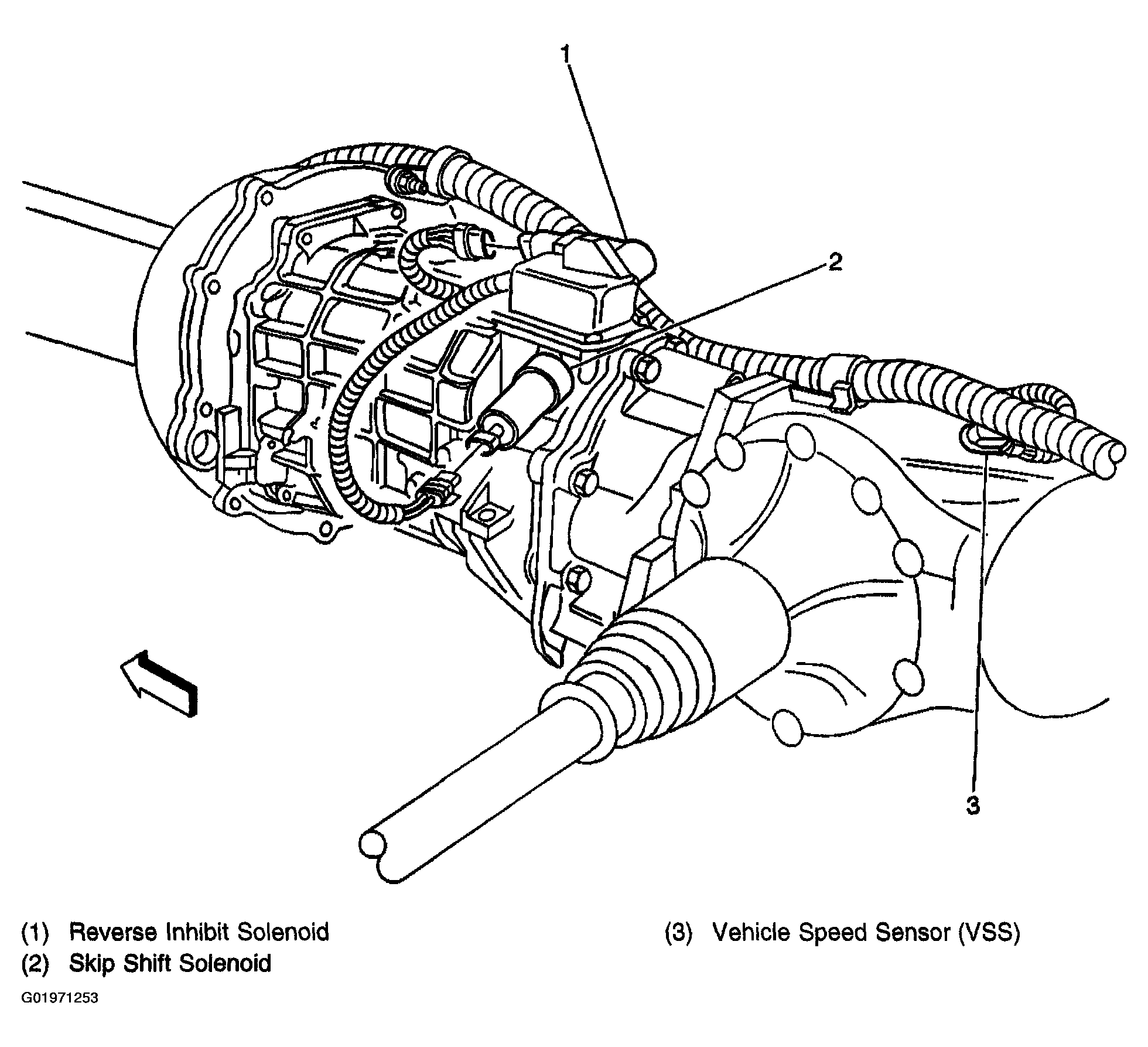

Fig 1: Manual Transmission
Courtesy of GENERAL MOTORS CORP.

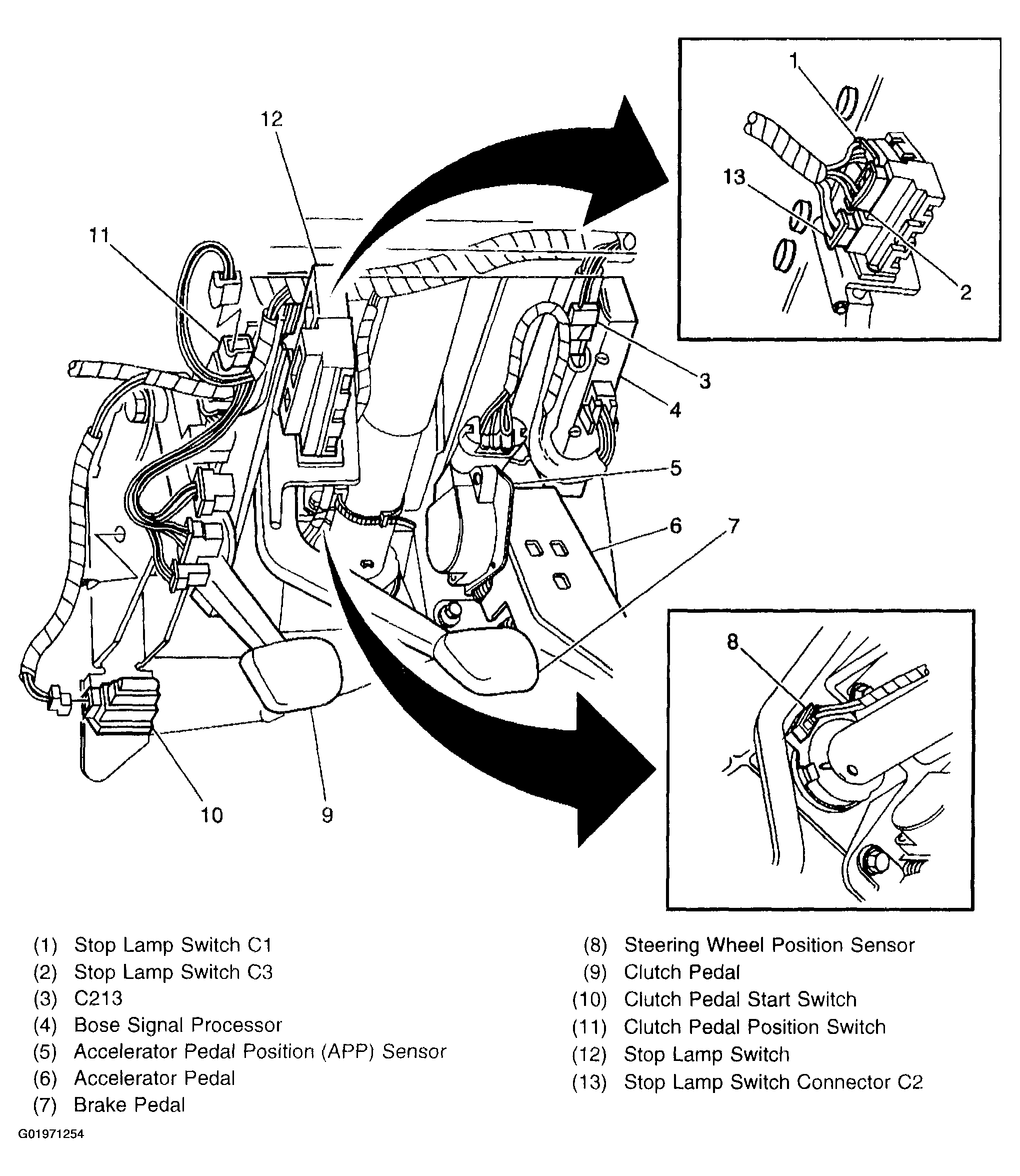

Fig 2: Under Side Of the Dash-Left
Courtesy of GENERAL MOTORS CORP.

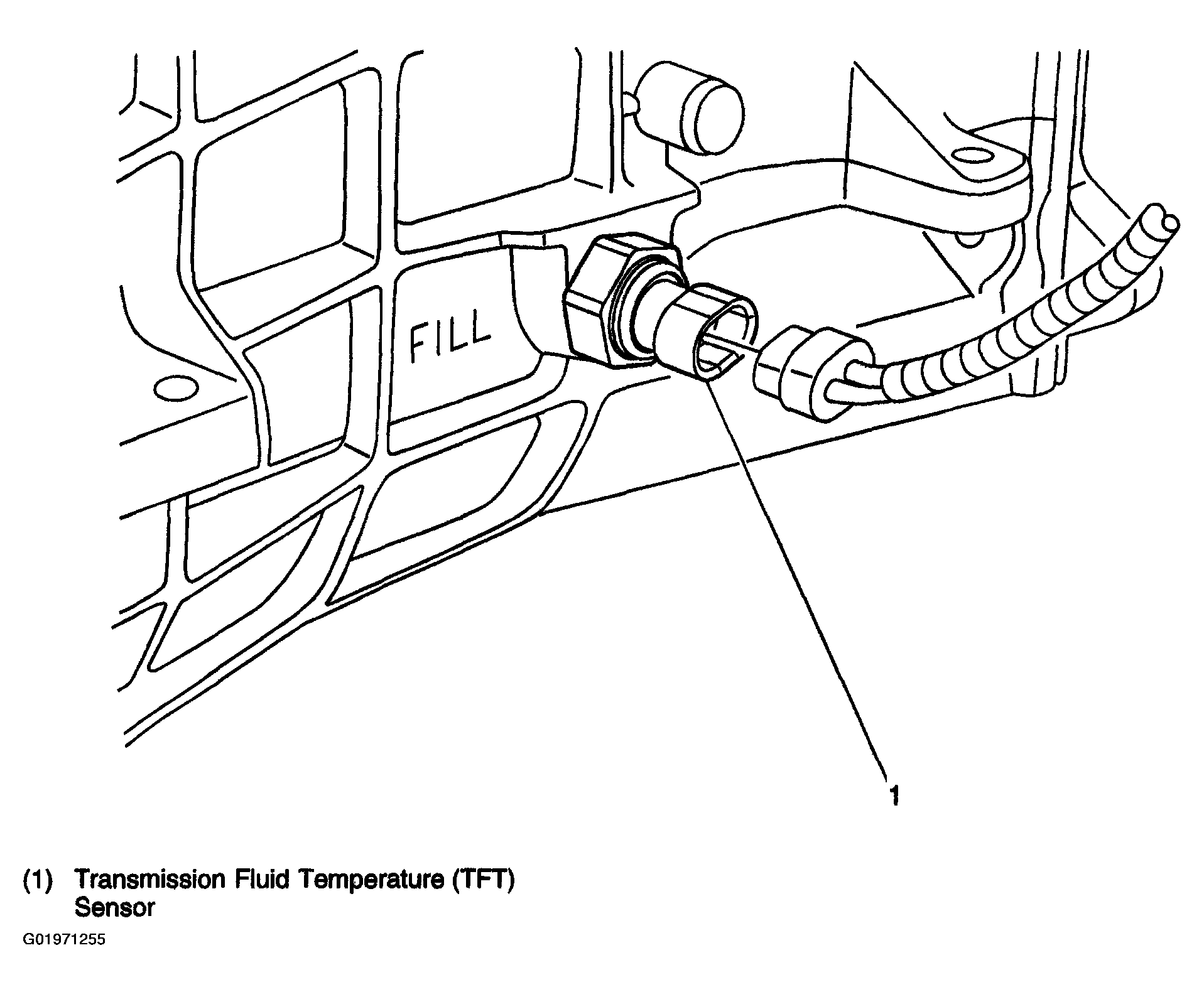

Fig 3: Left Side Of the Transmission
Courtesy of GENERAL MOTORS CORP.
