Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to EXHAUST SERVICE CAUTION in Cautions and Notices.
CAUTION: Refer to PROTECTIVE GOGGLES & GLOVE CAUTION in Cautions and Notices.
  1. Remove the rear stabilizer shaft bracket bolts and nuts.
  2. Remove the rear stabilizer shaft brackets and insulators.
  3. Position the stabilizer shaft downwards.

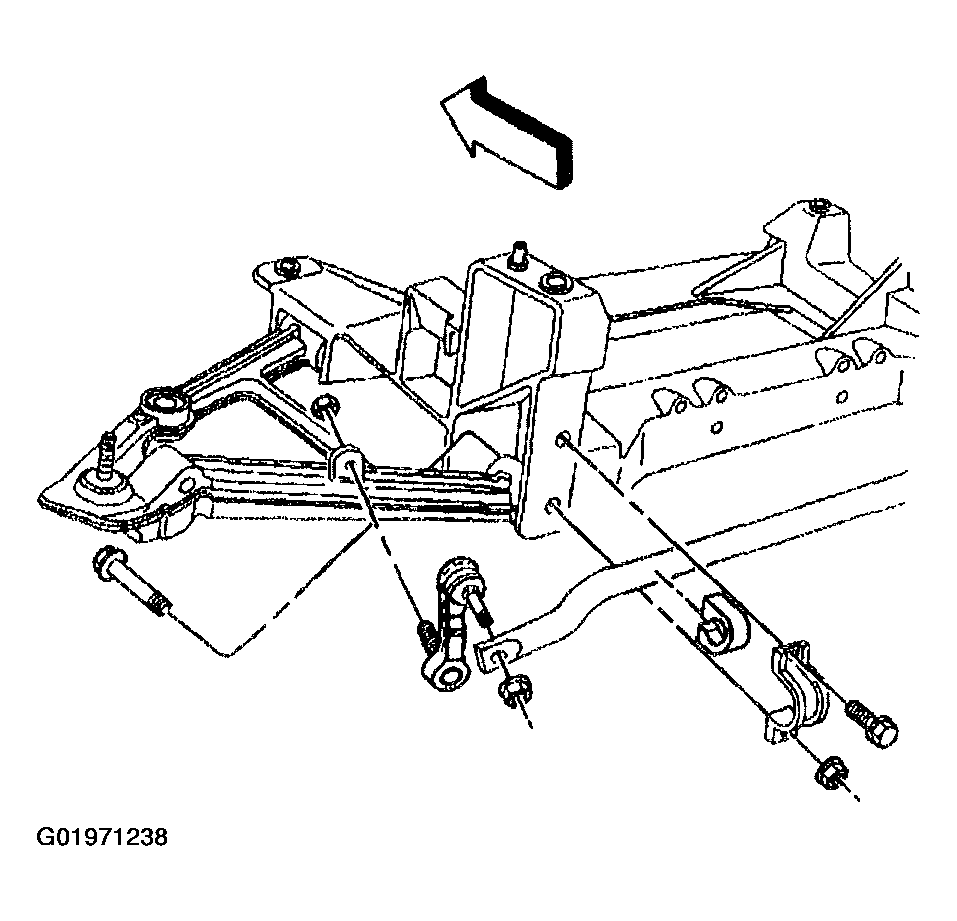

    Fig 1: Rear Stabilizer Shaft Bracket Bolts & Nuts
    G01971238Courtesy of GENERAL MOTORS CORP.
  4. Remove the left side exhaust muffler bolts.
  5. Remove the exhaust muffler gasket.

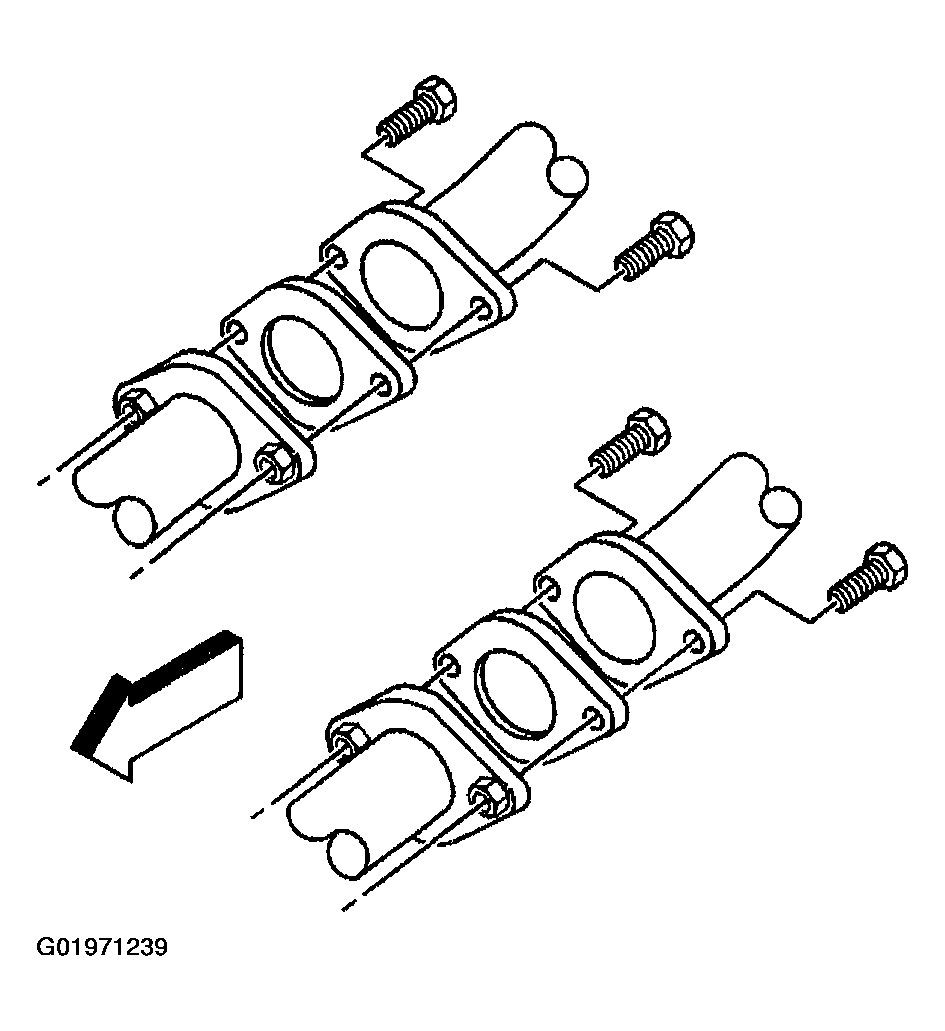

    Fig 2: Left Side Exhaust Muffler Bolts
    G01971239Courtesy of GENERAL MOTORS CORP.
  6. Slide the muffler blade out from the hanger.
  7. Remove the right muffler.

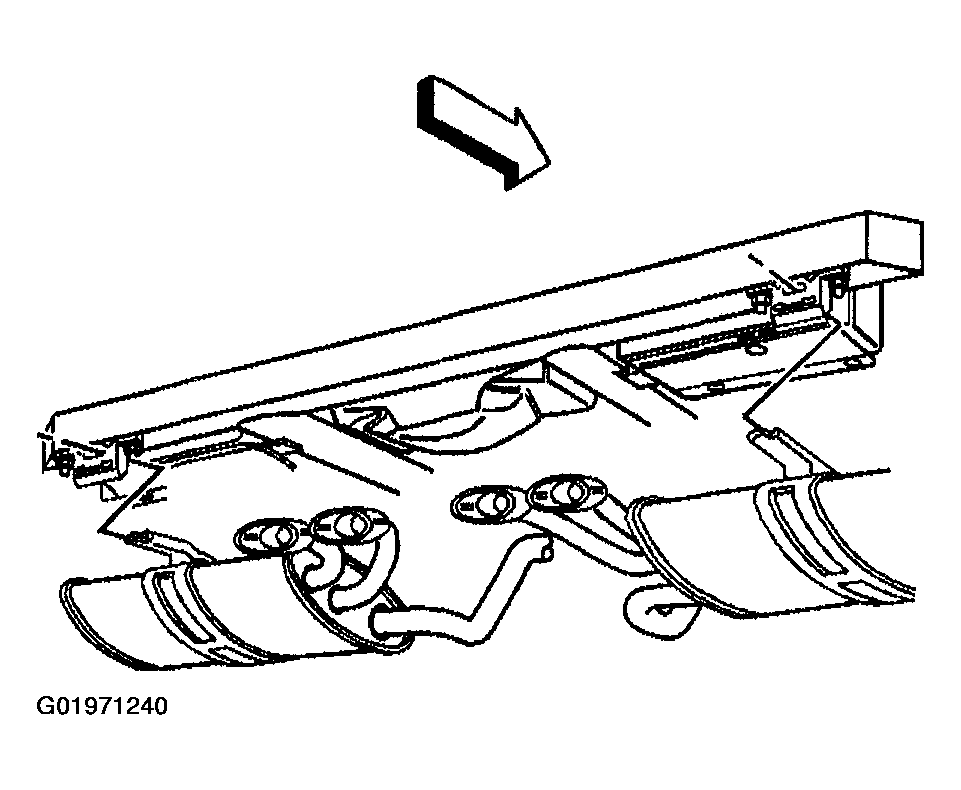

    Fig 3: Right Muffler
    G01971240Courtesy of GENERAL MOTORS CORP.
