Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Refer to EXHAUST SERVICE CAUTION in Cautions and Notices.

CAUTION: Refer to PROTECTIVE GOGGLES & GLOVE CAUTION in Cautions and Notices.

Remove the rear stabilizer shaft bracket bolts and nuts.
Remove the rear stabilizer shaft brackets and insulators.
Position the stabilizer shaft downwards.

Fig 1: Rear Stabilizer Shaft Bracket Bolts & Nuts
Courtesy of GENERAL MOTORS CORP.
Remove the left exhaust muffler bolts.
Remove the exhaust muffler gasket.

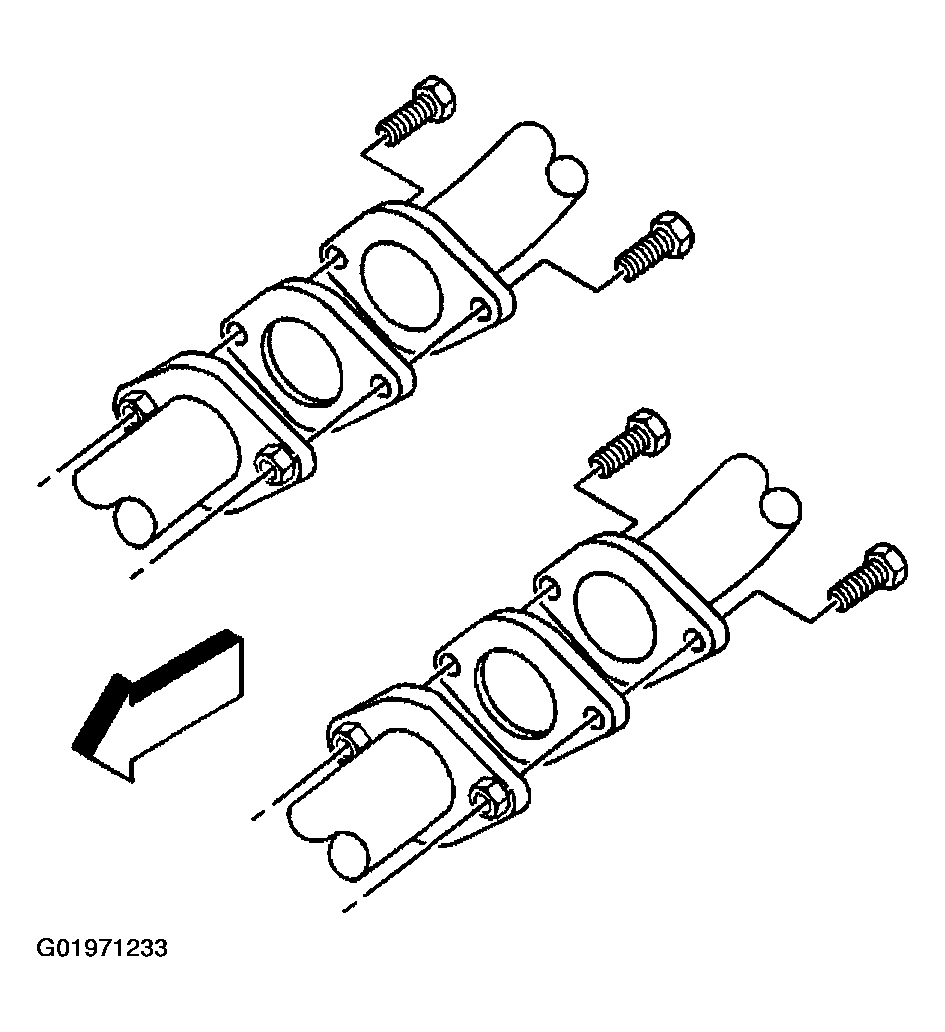

Fig 2: Left Exhaust Muffler Bolts
Courtesy of GENERAL MOTORS CORP.
Slide the muffler blade out from the hanger.
Remove the left muffler.

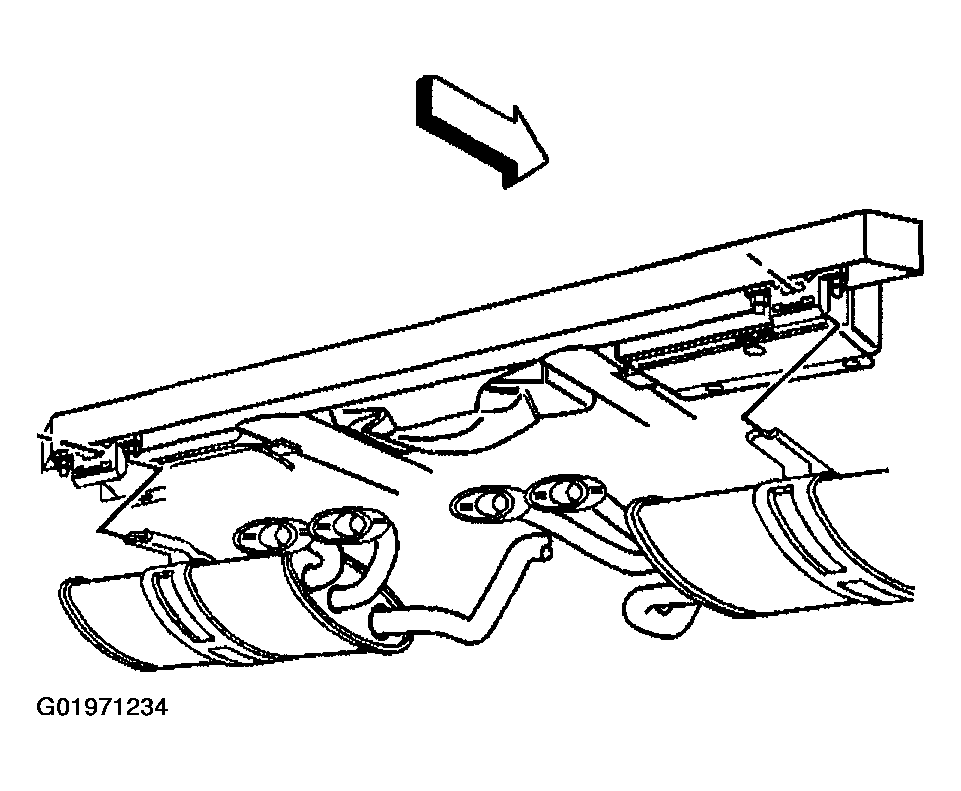

Fig 3: Left Muffler
Courtesy of GENERAL MOTORS CORP.
