Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Install a NEW exhaust seal.
Raise the front of the catalytic converter.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the left and right exhaust manifold nuts.
Tighten

Tighten the exhaust manifold nuts to 20 N.m (15 lb ft).

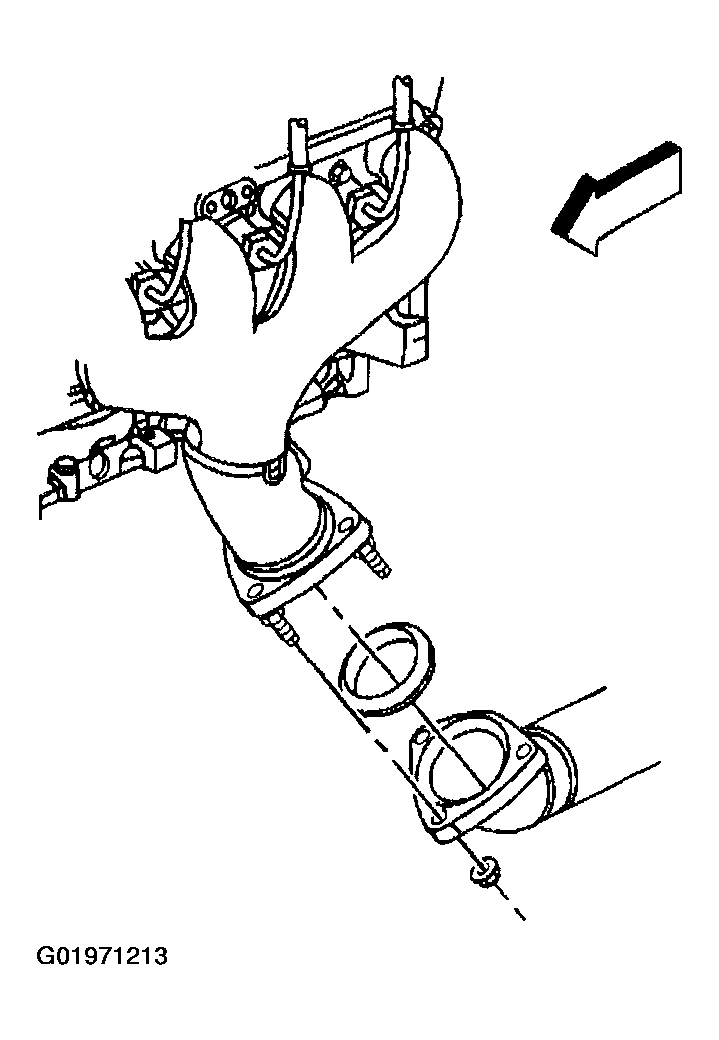

Fig 1: Left & Right Exhaust Manifold Nuts
Courtesy of GENERAL MOTORS CORP.
Install the exhaust pipe hanger lower bolts.
Tighten

Tighten the exhaust pipe hanger bolts to 50 N.m (37 lb ft).

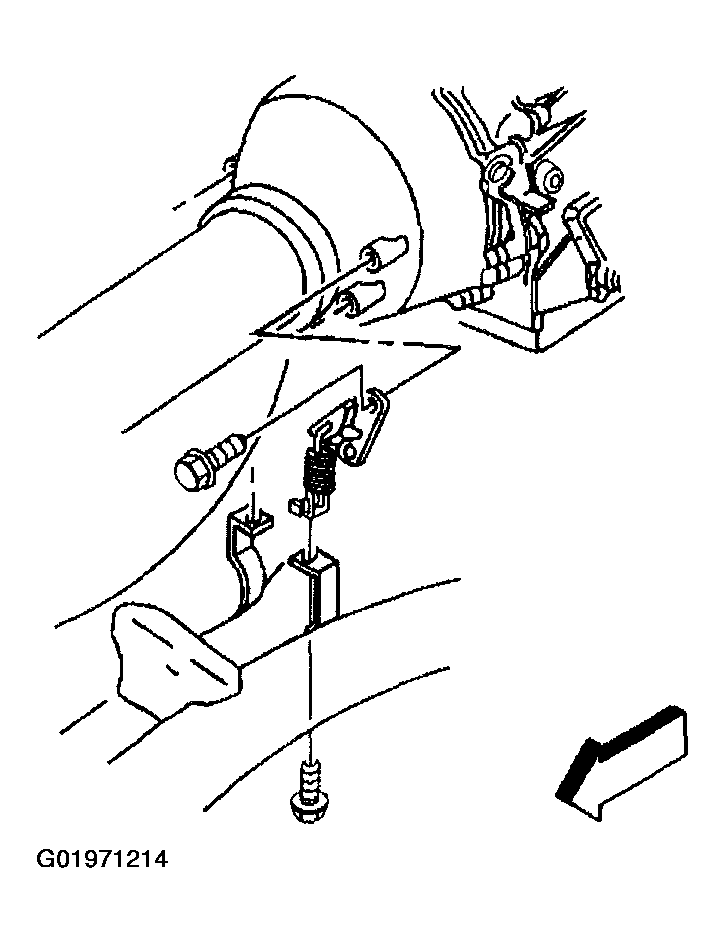

Fig 2: Exhaust Pipe Hanger Lower Bolts
Courtesy of GENERAL MOTORS CORP.
Install the exhaust pipe brace lower bolts.
Tighten

Tighten the exhaust pipe brace bolts to 50 N.m (37 lb ft).
Remove the adjustable jack stand.
Lower the vehicle.

Fig 3: Exhaust Pipe Brace Lower Bolts
Courtesy of GENERAL MOTORS CORP.
