Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left or right muffler. Refer to MUFFLER REPLACEMENT - LEFT  or MUFFLER REPLACEMENT - RIGHT .
  2. Drill out the left or right muffler heat shield rivets.
  3. Remove the left or right heat shield washers and shield.

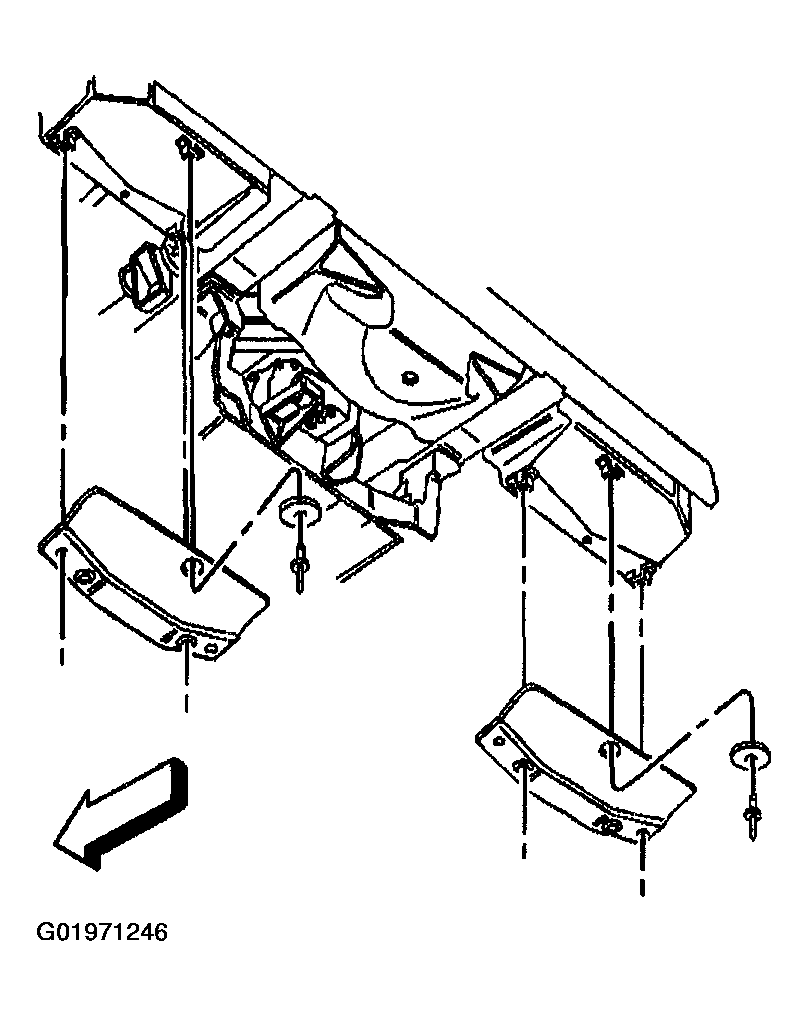

    Fig 1: Left Or Right Heat Shield Washers & Shield
    G01971246Courtesy of GENERAL MOTORS CORP.
