Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the left or right heat shield and washers.
  2. Install new left or right heat shield rivets.
  3. Install the left or right muffler. Refer to MUFFLER REPLACEMENT - LEFT  or MUFFLER REPLACEMENT - RIGHT .

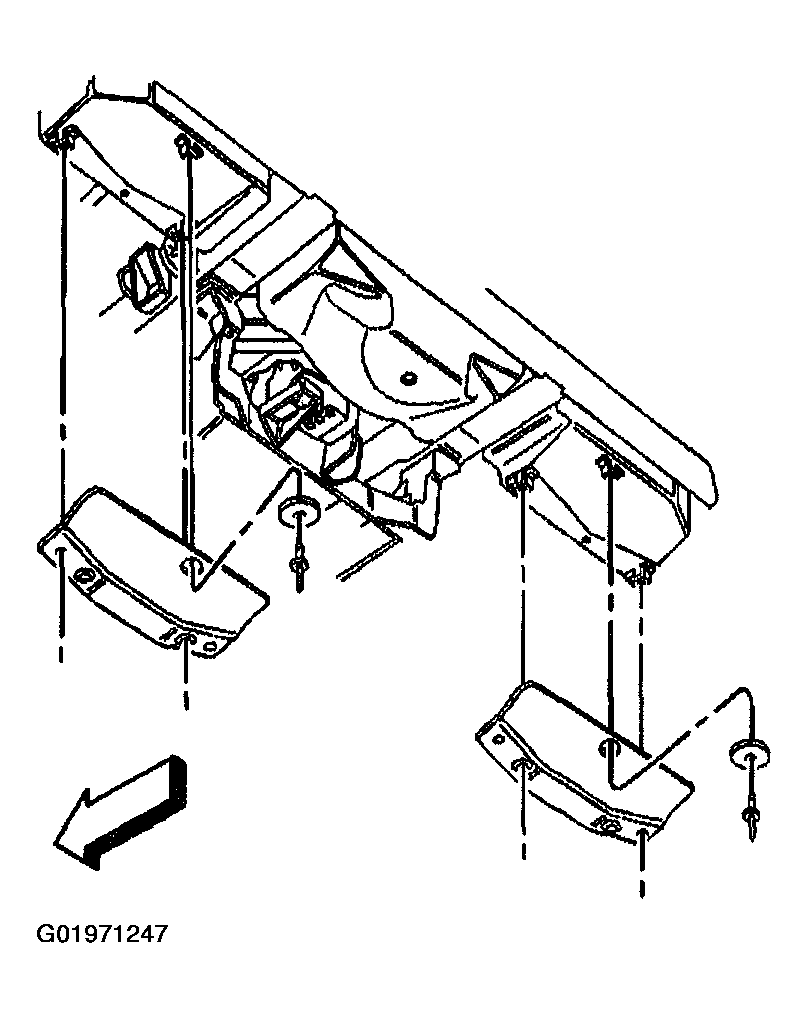

    Fig 1: Left Or Right Heat Shield & Washers
    G01971247Courtesy of GENERAL MOTORS CORP.
