Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the catalytic converter. Refer to CATALYTIC CONVERTER REPLACEMENT .
  2. Drill out the catalytic converter heat shield rivets.
  3. Remove the catalytic converter heat shield.

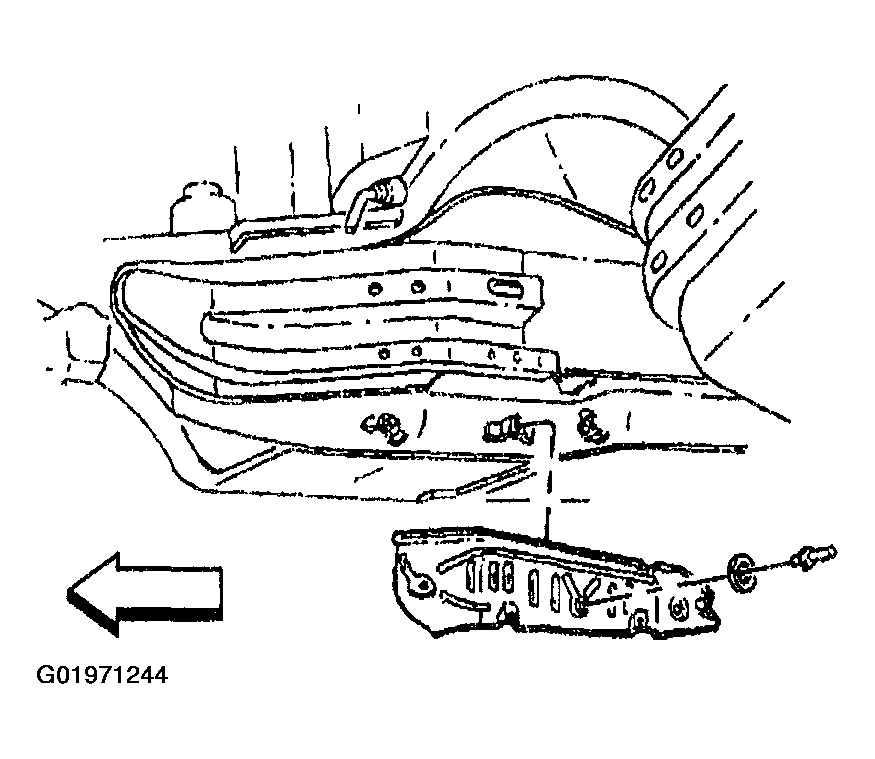

    Fig 1: Catalytic Converter Heat Shield
    G01971244Courtesy of GENERAL MOTORS CORP.
