Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the catalytic converter heat shield.
  2. Install new catalytic converter heat shield rivets.
  3. Install the catalytic converter. Refer to CATALYTIC CONVERTER REPLACEMENT .

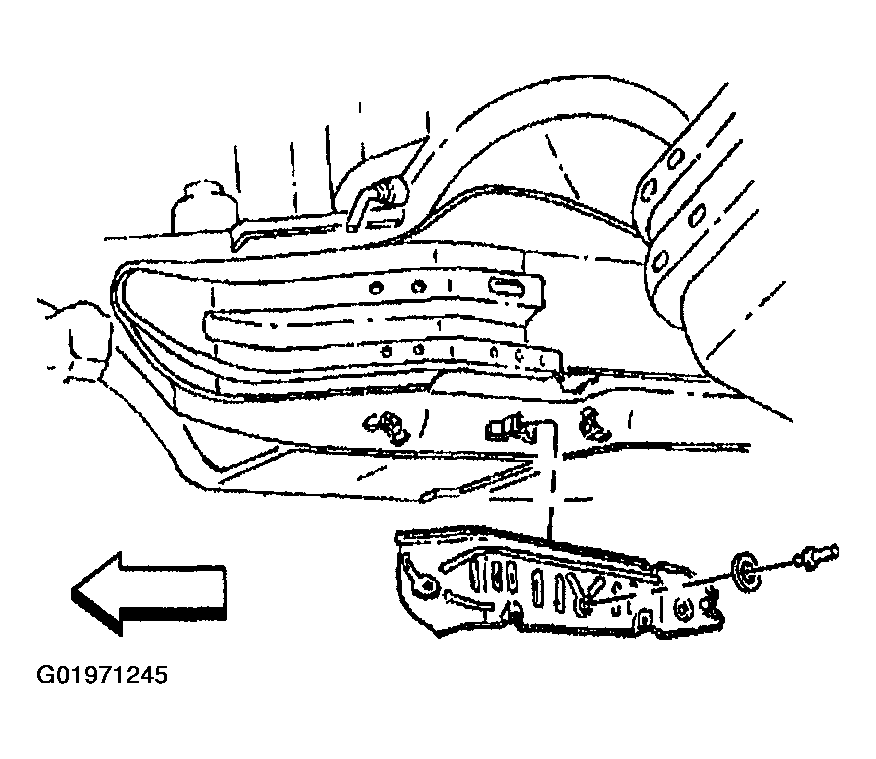

    Fig 1: Catalytic Converter Heat Shield
    G01971245Courtesy of GENERAL MOTORS CORP.
