Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM .
  2. Remove the radiator support. Refer to RADIATOR SUPPORT REPLACEMENT .
  3. Reposition the throttle body heater outlet hose clamps at the radiator and throttle body.
  4. Remove the throttle body heater outlet hose from the radiator and throttle body.

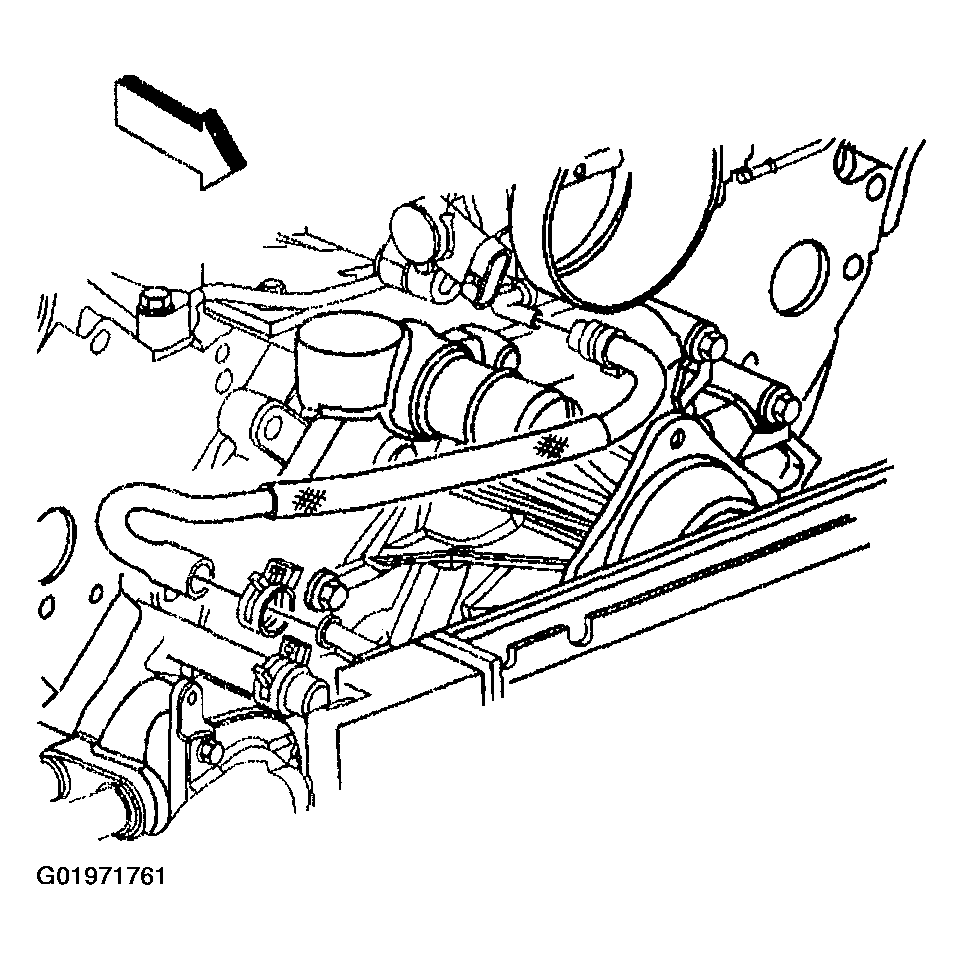

    Fig 1: Removing Throttle Body Heater Outlet Hose From Radiator & Throttle Body
    G01971761Courtesy of GENERAL MOTORS CORP.
