Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the throttle body heater outlet hose to the radiator and throttle body.
  2. Position the throttle body heater outlet hose clamps at the radiator and throttle body.
  3. Install the radiator support. Refer to RADIATOR SUPPORT REPLACEMENT .
  4. Fill the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM .

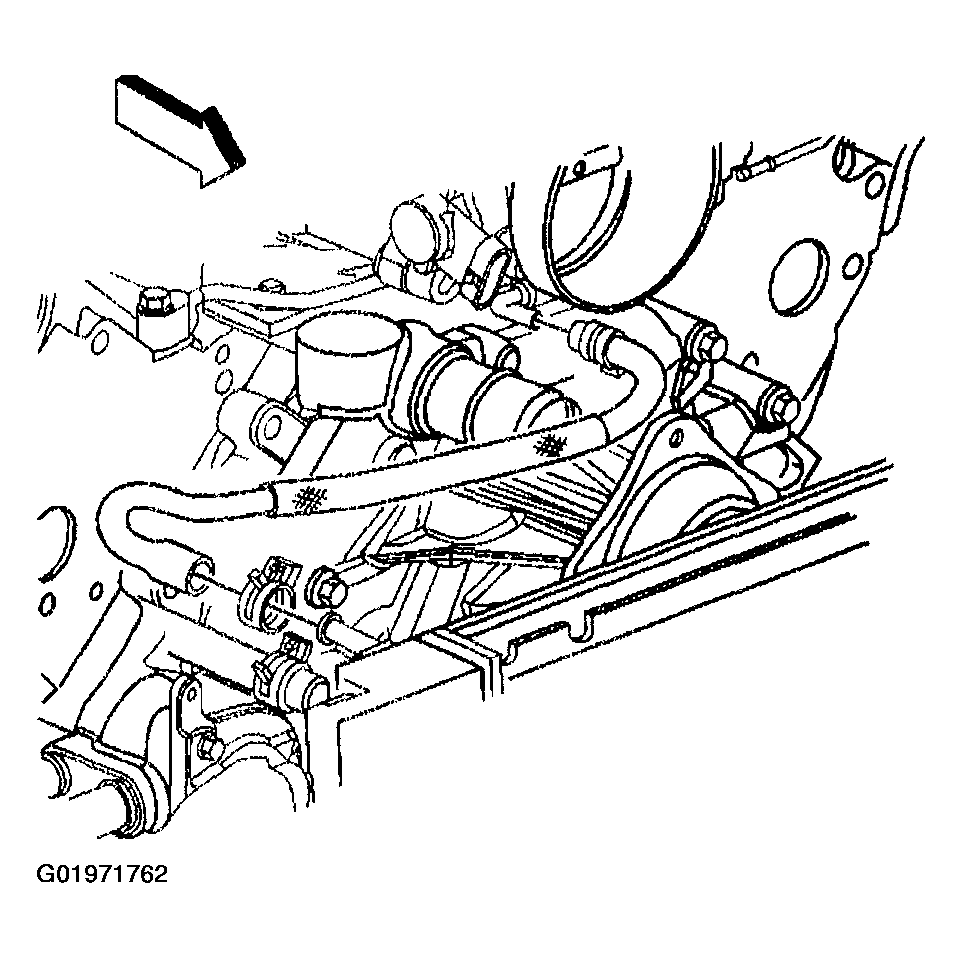

    Fig 1: Installing Throttle Body Heater Outlet Hose To Radiator & Throttle Body
    G01971762Courtesy of GENERAL MOTORS CORP.
