Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the radiator outlet hose to the radiator.
  2. Reposition the radiator outlet hose clamp to the radiator using J 38185  .
  3. Lower the vehicle.
  4. Install the radiator outlet hose to the water pump.
  5. Reposition the radiator outlet hose clamp to the water pump using J 38185  .
  6. Fill the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM .

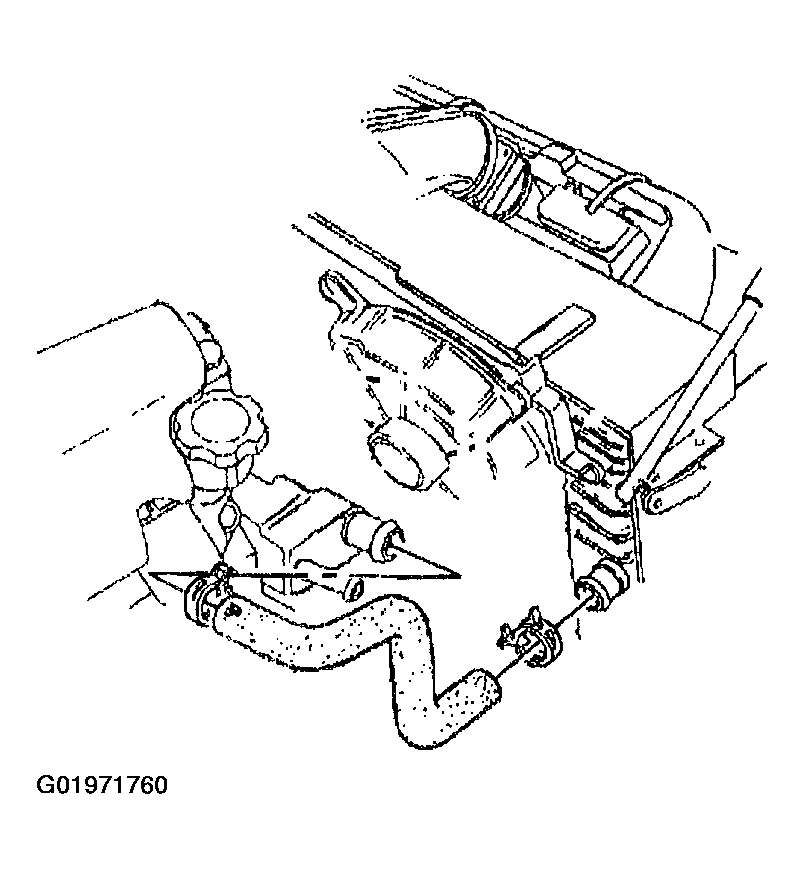

    Fig 1: Radiator Outlet Hose
    G01971760Courtesy of GENERAL MOTORS CORP.
