Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM .
  2. Remove the radiator upper support. Refer to RADIATOR SUPPORT REPLACEMENT .
  3. Reposition the radiator inlet hose clamp from the radiator using J 38185  .
  4. Reposition the radiator inlet hose clamp from the thermostat housing using J 38185  .
  5. Remove the radiator inlet hose from the radiator.
  6. Remove the radiator inlet from the thermostat housing.

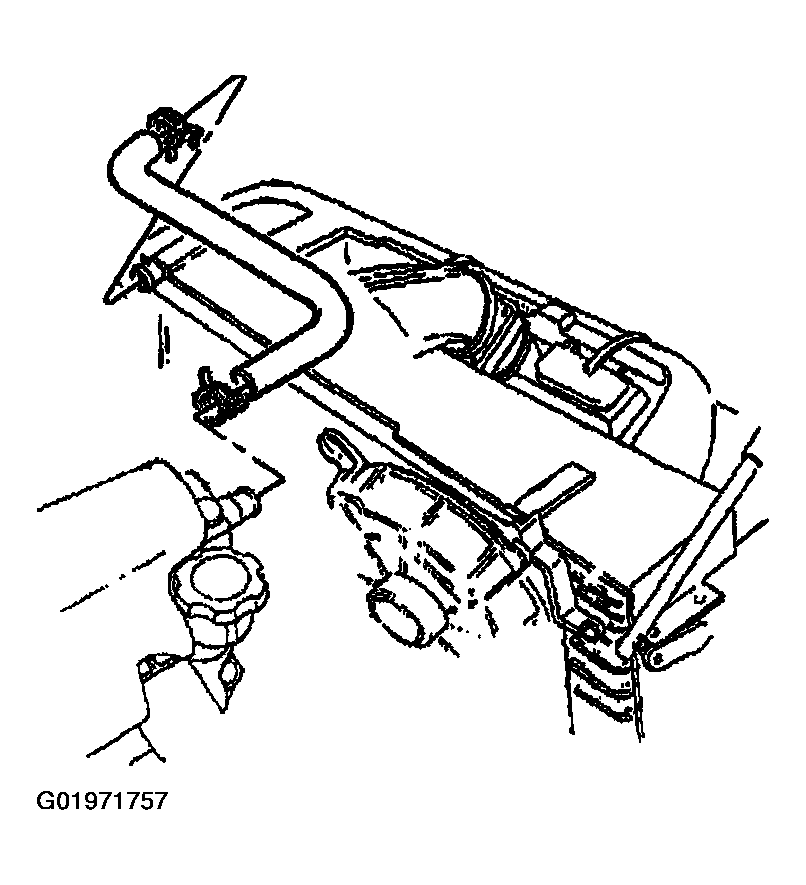

    Fig 1: Removing Radiator Inlet Hose From Thermostat Housing & Radiator
    G01971757Courtesy of GENERAL MOTORS CORP.
