Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air cleaner assembly. Refer to AIR CLEANER ASSEMBLY REPLACEMENT in Engine Controls - 5.7L.
  2. Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  3. Remove the radiator air baffle lower bolts.
  4. Lower the vehicle.
  5. Disconnect the hood light and air temperature sensor electrical connectors.
  6. Disconnect the radiator air baffle connectors (3).
  7. Remove the radiator air baffle (1).

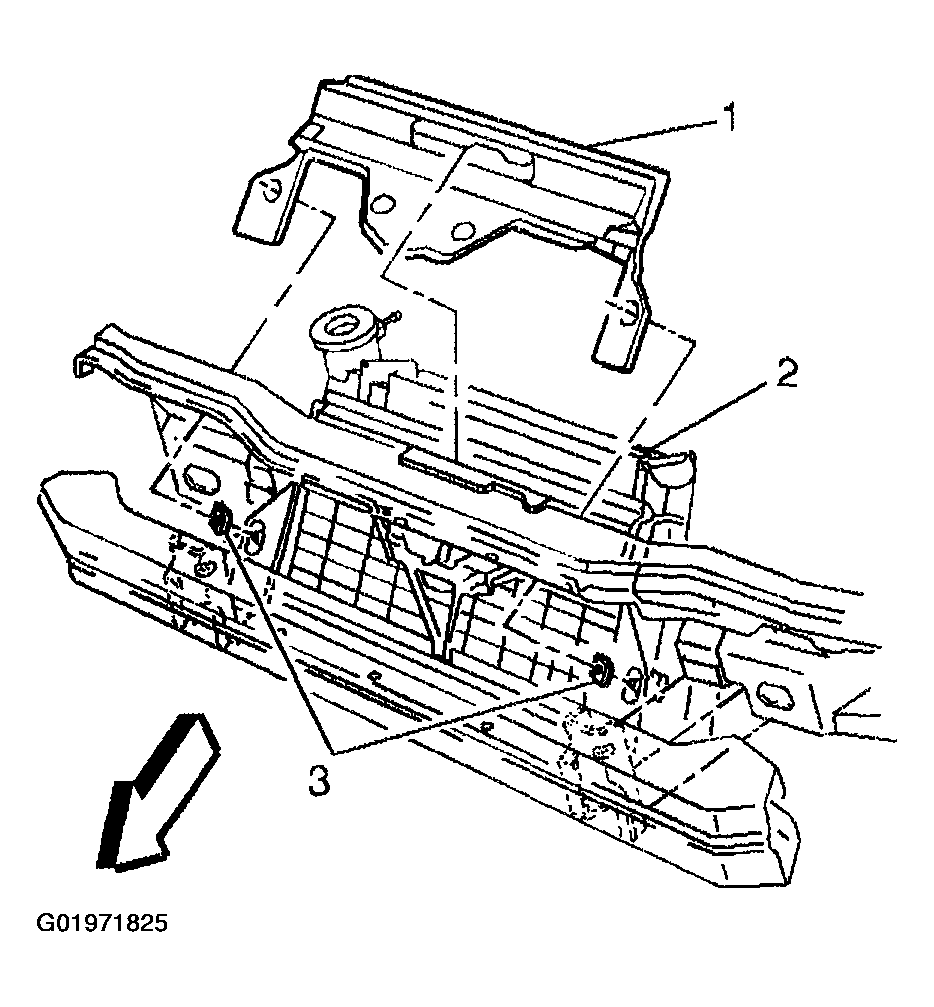

    Fig 1: Radiator Air Baffle
    G01971825Courtesy of GENERAL MOTORS CORP.
