Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the fan shroud. Refer to FAN SHROUD REPLACEMENT .
  2. Remove the cooling fan blade nut.
  3. Remove the cooling fan blade.

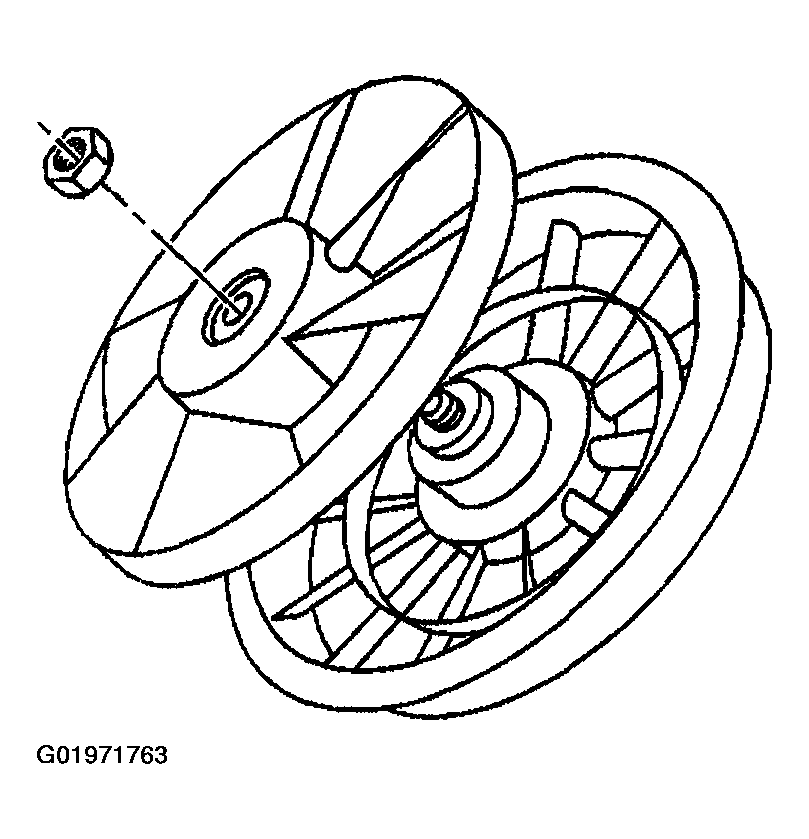

    Fig 1: Cooling Fan Blade
    G01971763Courtesy of GENERAL MOTORS CORP.
