Installation Procedure
WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

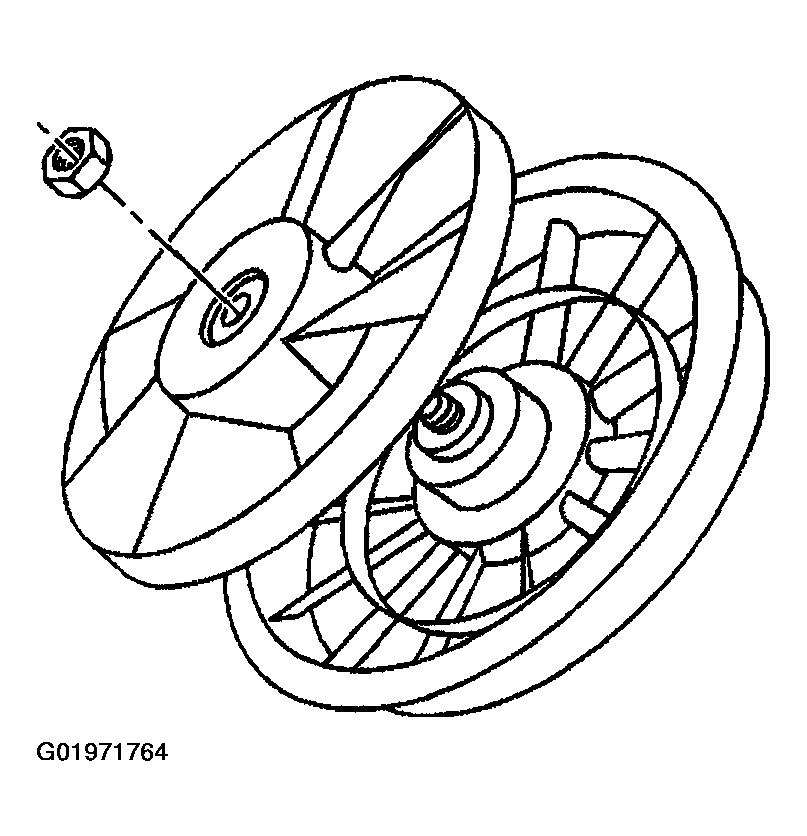

- Install the cooling fan blade.NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
- Install the cooling fan blade nut.
Tighten
Tighten the fan blade nut to 6 N.m (53 lb in).
- Install the fan shroud. Refer to FAN SHROUD REPLACEMENT .
