Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the fan motor to the shroud.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the fan motor bolts.

    Tighten

    Tighten the cooling fan motor bolts to 6 N.m (53 lb in).

  3. Install the cooling fan. Refer to COOLING FAN REPLACEMENT - ELECTRIC .

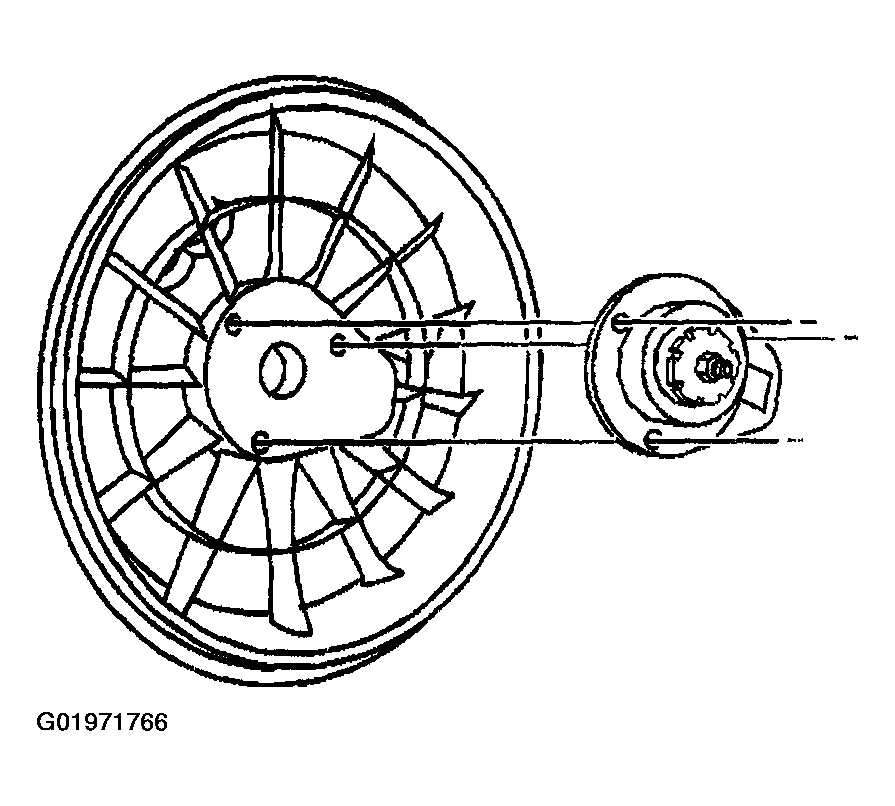

    Fig 1: Fan Motor
    G01971766Courtesy of GENERAL MOTORS CORP.
