Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Reposition the coolant air bleed hose clamp at the throttle body.
Remove the coolant air bleed hose from the throttle body.

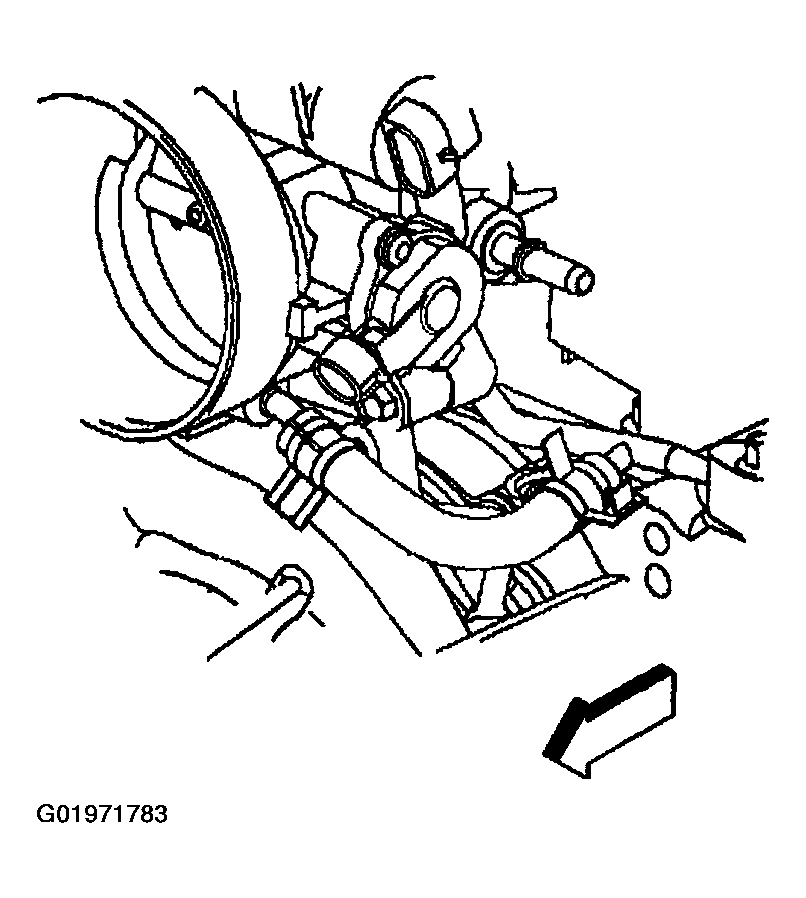

Fig 1: Removing Coolant Air Bleed Hose From Throttle Body
Courtesy of GENERAL MOTORS CORP.
Reposition the coolant air bleed hose clamp at the pipe.
Remove the coolant air bleed hose (2) from the pipe (1).

Fig 2: Removing Coolant Air Bleed Hose From Pipe
Courtesy of GENERAL MOTORS CORP.
