Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Install the coolant air bleed hose (2) to the pipe (1).
Position the coolant air bleed hose clamp at the pipe.

Fig 1: Installing Coolant Air Bleed Hose To Pipe
Courtesy of GENERAL MOTORS CORP.
Install the coolant air bleed hose to the throttle body.
Position the coolant air bleed hose clamp at the throttle body.
Add engine coolant, if necessary.

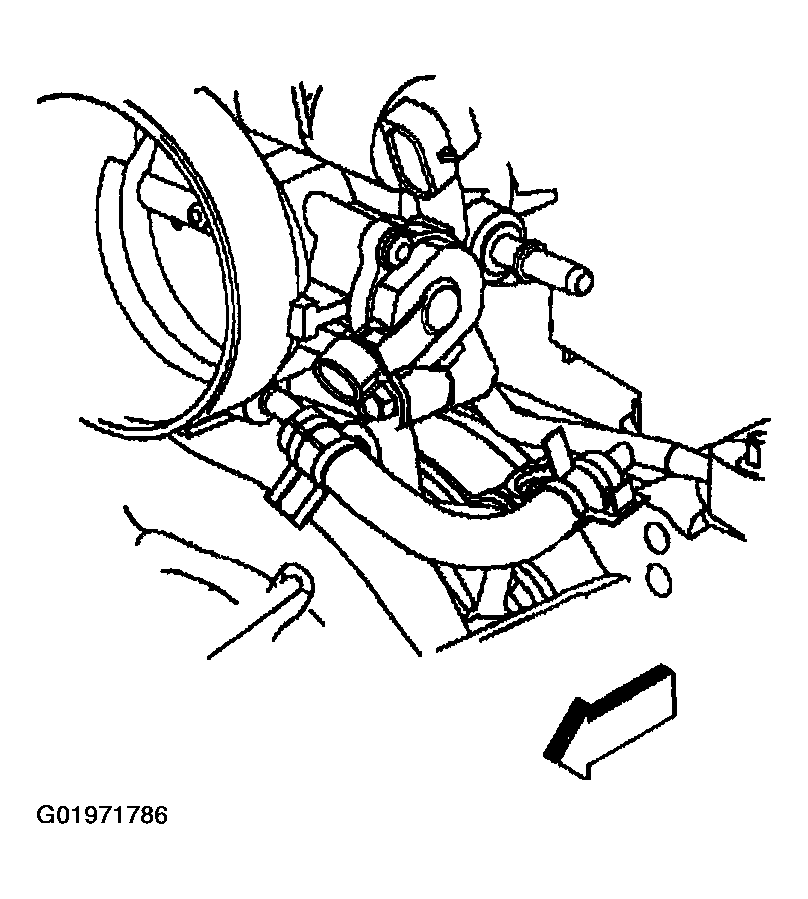

Fig 2: Installing Coolant Air Bleed Hose To Throttle Body
Courtesy of GENERAL MOTORS CORP.
