Cylinder Head-Exhaust Manifold Deck View

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

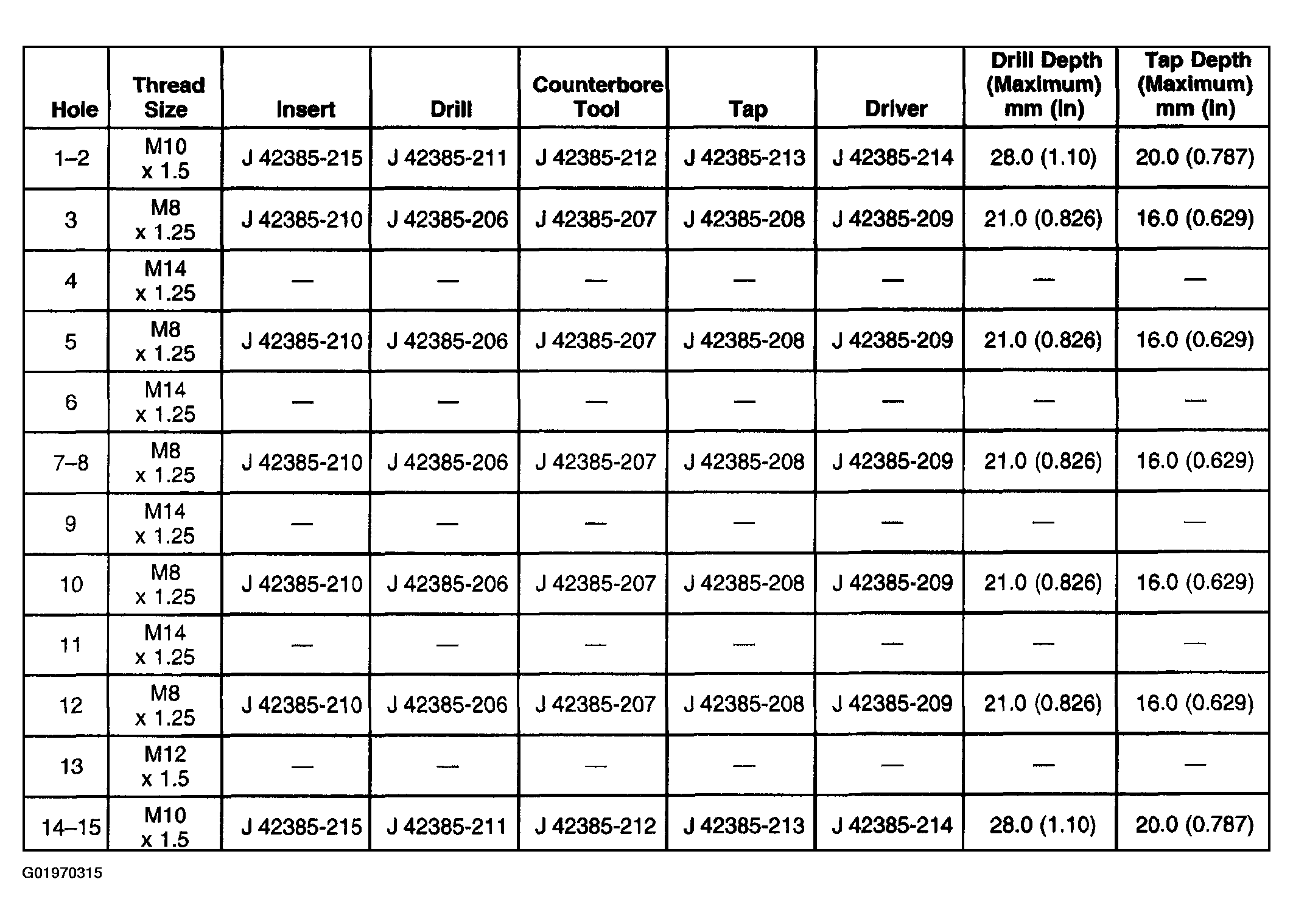

Fig 1: Component Location And Specifications - Cylinder Head-Exhaust Manifold Deck View

Courtesy of GENERAL MOTORS CORP.

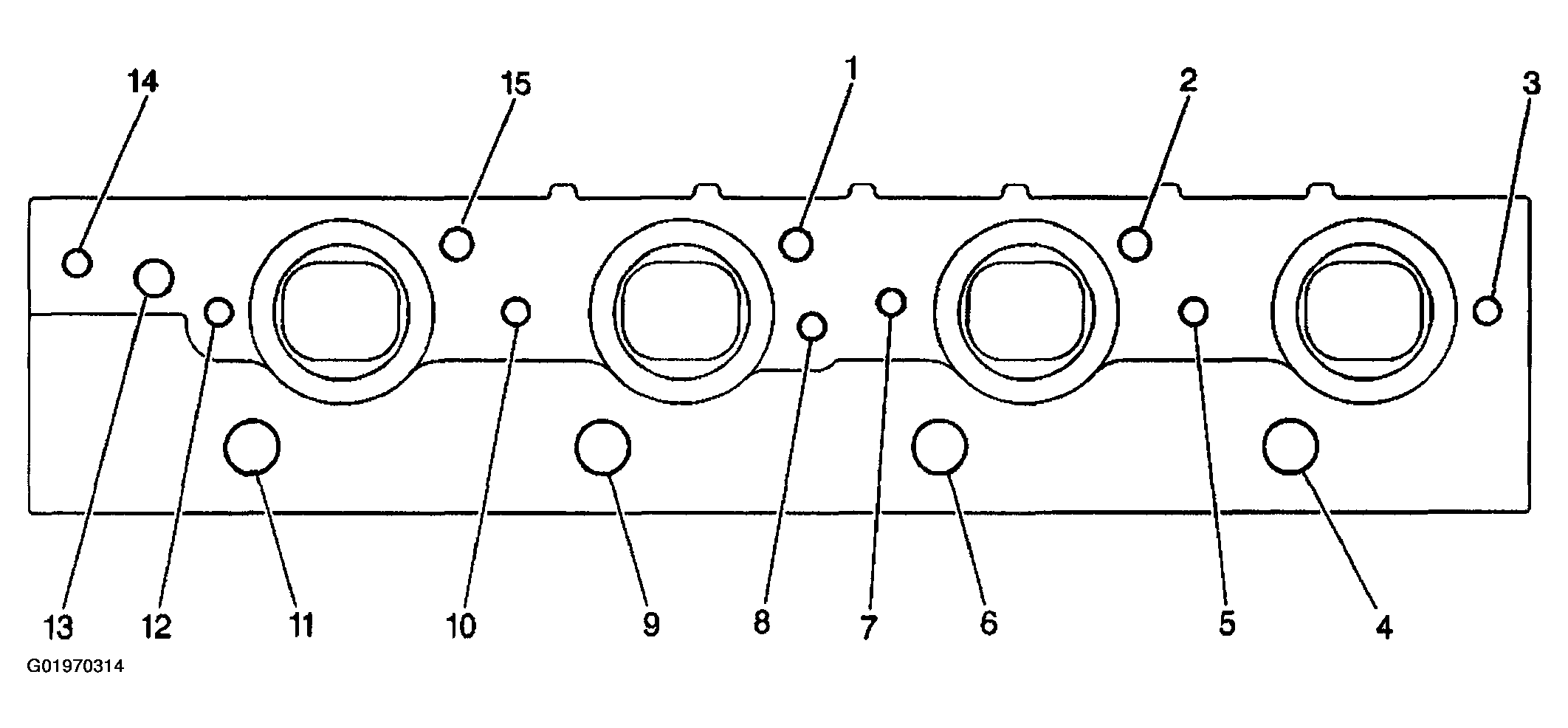

Fig 2: Component Location And Specifications - Cylinder Head-Exhaust Manifold Deck View (Callouts)

Courtesy of GENERAL MOTORS CORP.
