Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Important:

All gasket surfaces should be free of oil and other foreign material during assembly.
DO NOT reuse the valve rocker arm cover gasket.
The valve rocker arm cover bolt grommets may be reused.
If the PCV valve grommet has been removed from the rocker arm, install a NEW grommet during assembly.

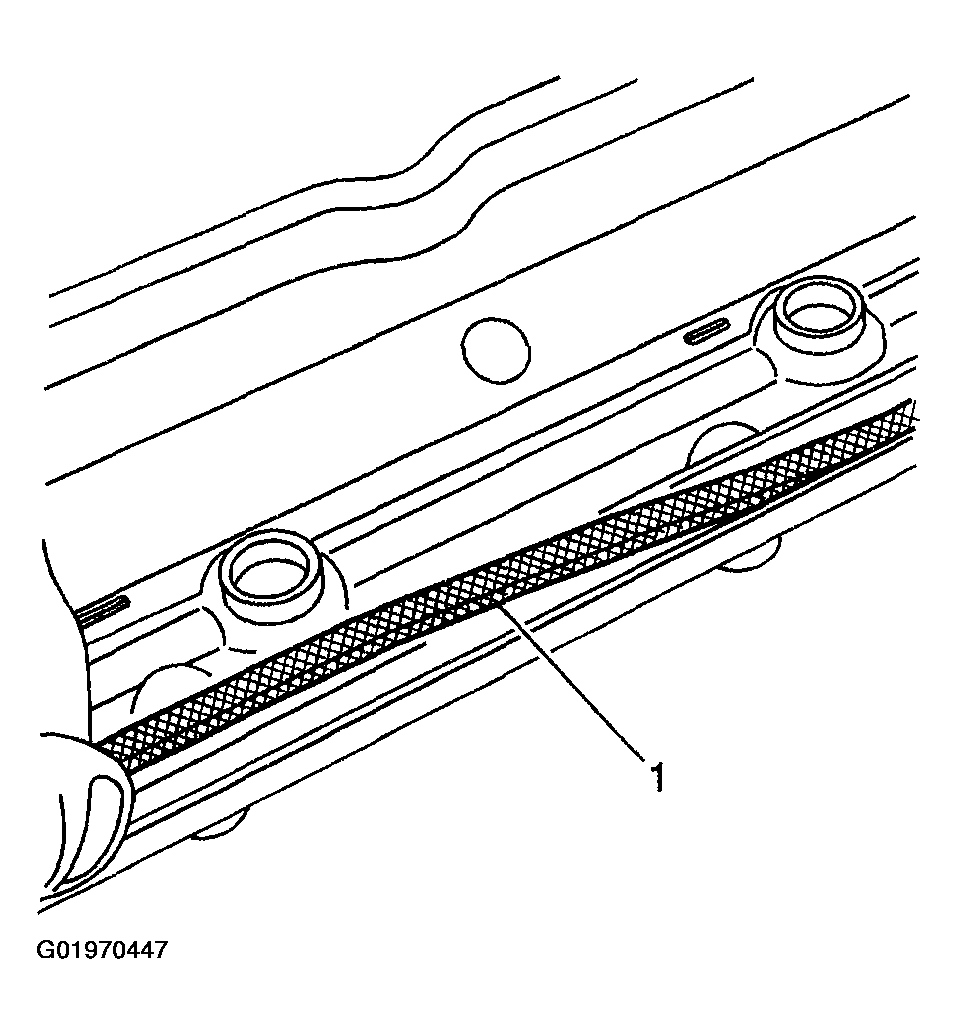

Install a NEW rocker cover gasket (1) into the valve rocker cover lip.

Fig 1: Installing A New Rocker Cover Gasket
Courtesy of GENERAL MOTORS CORP.
Install the valve rocker arm cover.

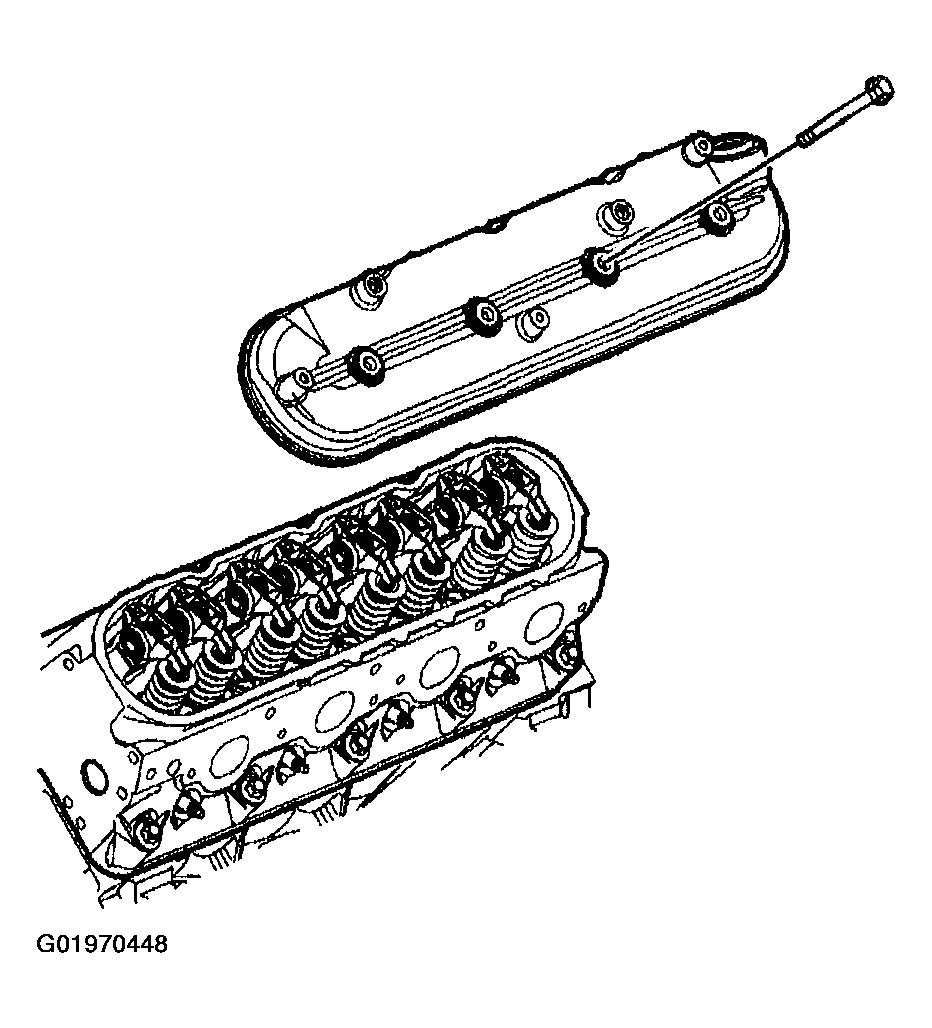

Fig 2: Installing Valve Rocker Arm Cover
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Tighten the valve rocker cover bolts.
Tighten

Tighten the valve rocker arm cover bolts to 12 N.m (106 lb in).
Install the ignition coil bracket.

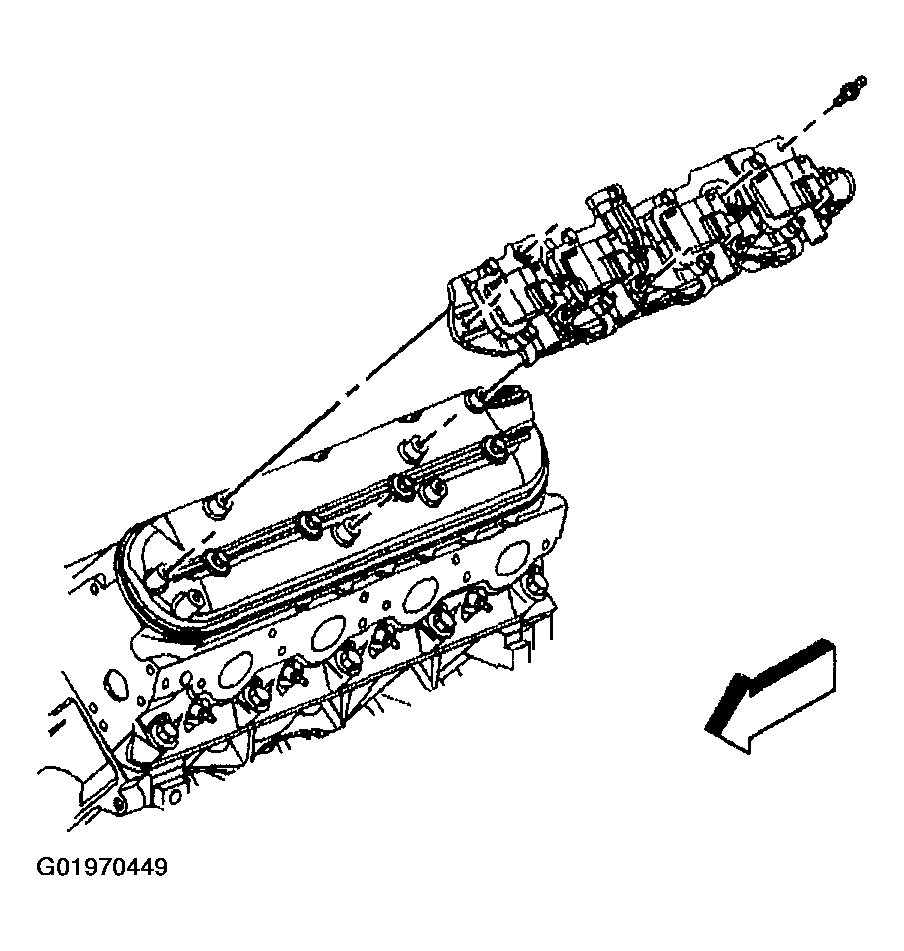

Fig 3: Installing Ignition Coil Bracket
Courtesy of GENERAL MOTORS CORP.
Apply threadlock GM U.S. P/N 12345382, Canada P/N 10953489, or equivalent to the threads of the ignition coil bracket studs.
Install the ignition coil bracket studs.
Tighten

Tighten the ignition coil bracket studs to 12 N.m (106 lb in).
Install the EVAP canister purge solenoid valve to the bracket.

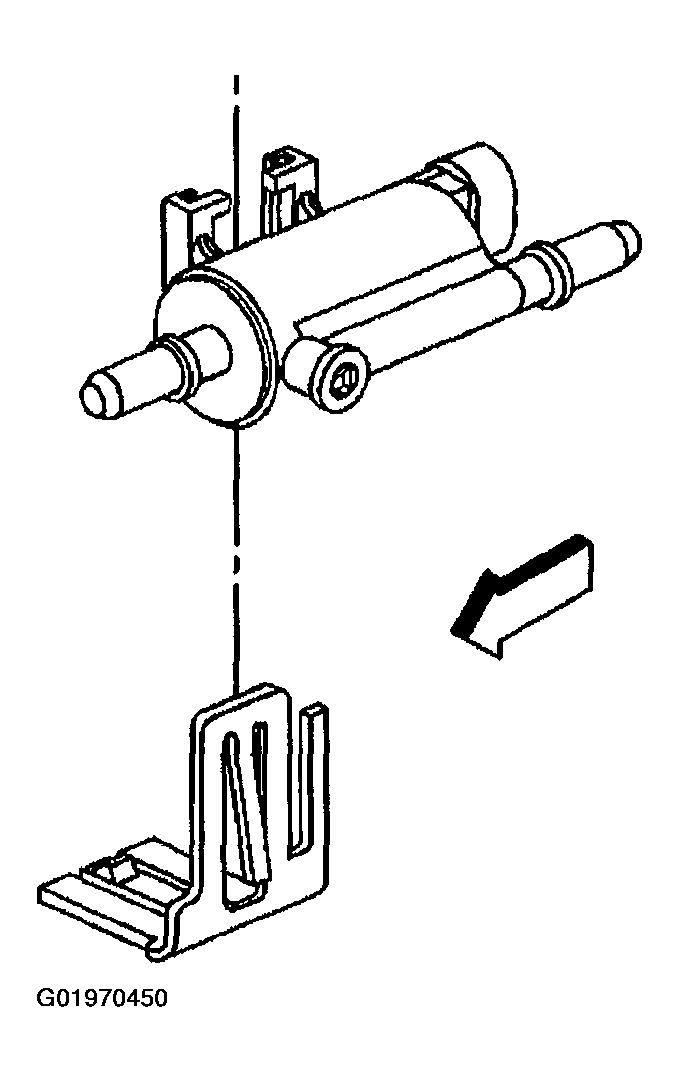

Fig 4: Installing EVAP Canister Purge Solenoid Valve
Courtesy of GENERAL MOTORS CORP.
Connect the EVAP canister purge solenoid valve electrical connector (2).

Fig 5: Connecting EVAP Canister Purge Solenoid Valve Electrical Connector
Courtesy of GENERAL MOTORS CORP.
Install the EVAP canister purge tube.

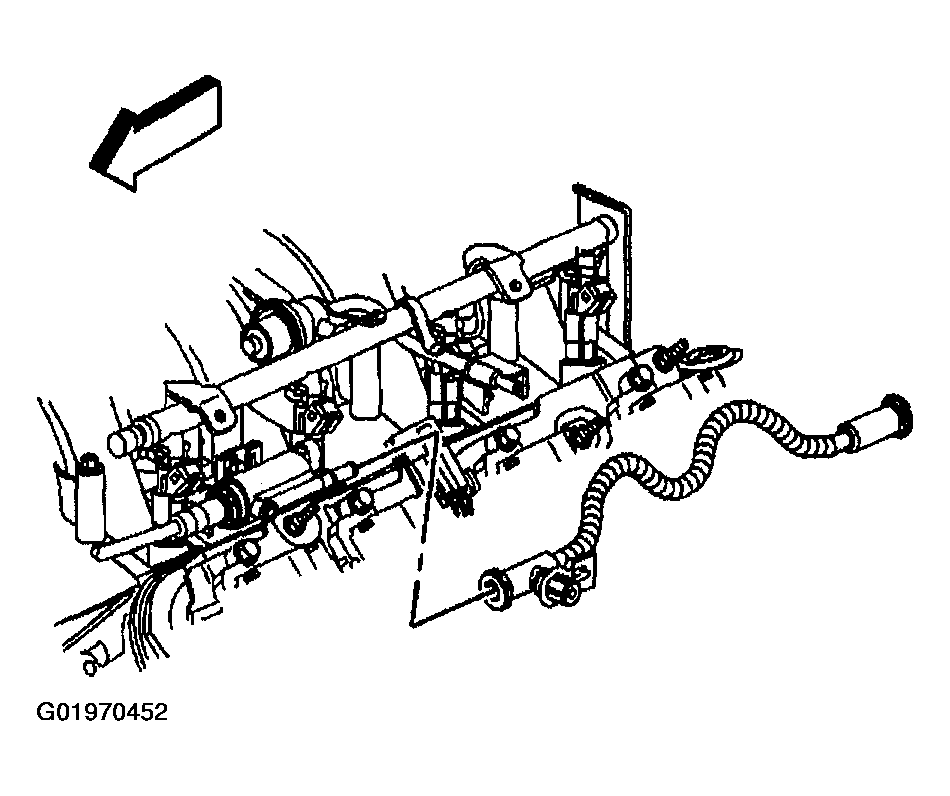

Fig 6: Connecting EVAP Canister Purge Tube
Courtesy of GENERAL MOTORS CORP.
Connect the EVAP canister purge tube to the fuel feed pipe.
Connect the EVAP canister purge tube to the EVAP canister purge solenoid valve.
Install the EVAP canister purge tube.

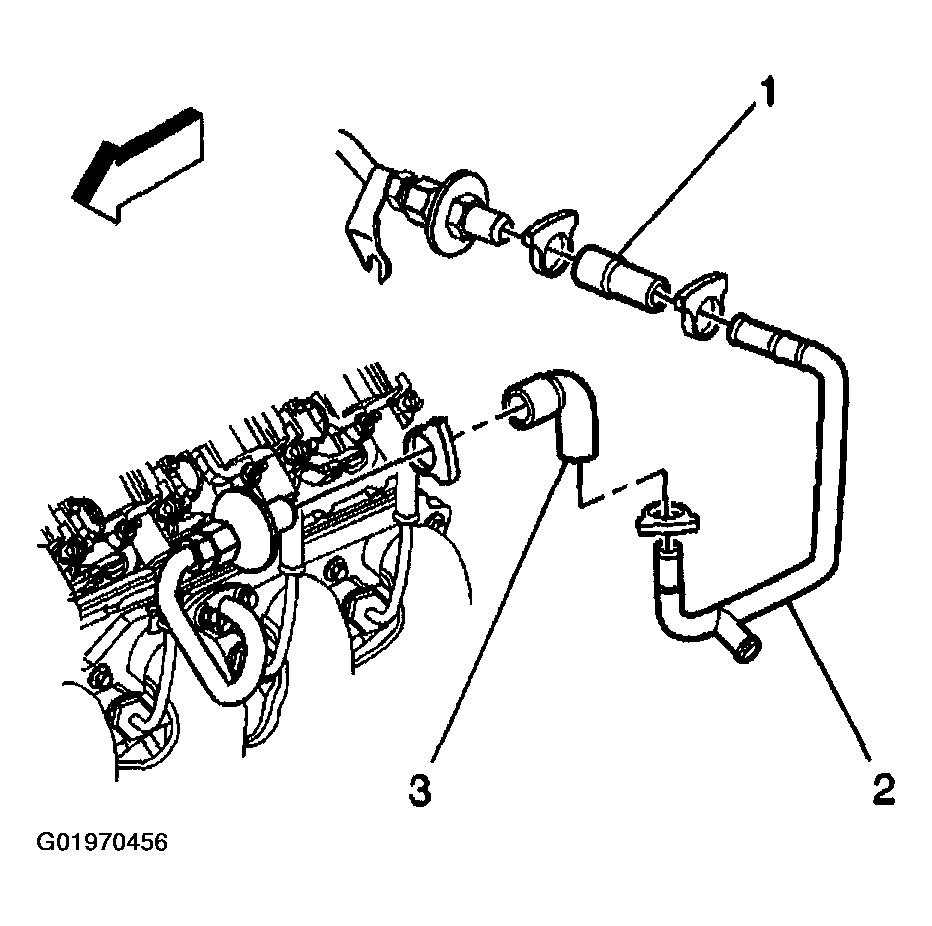

Fig 7: Installing Evaporative Emission (EVAP) Canister Purge Tube
Courtesy of GENERAL MOTORS CORP.
Install the EVAP canister purge tube to the EVAP canister purge solenoid valve.
Install the evaporative emission (EVAP) canister purge tube to the intake manifold.
Connect the ignition coil wire harness main electrical connector.

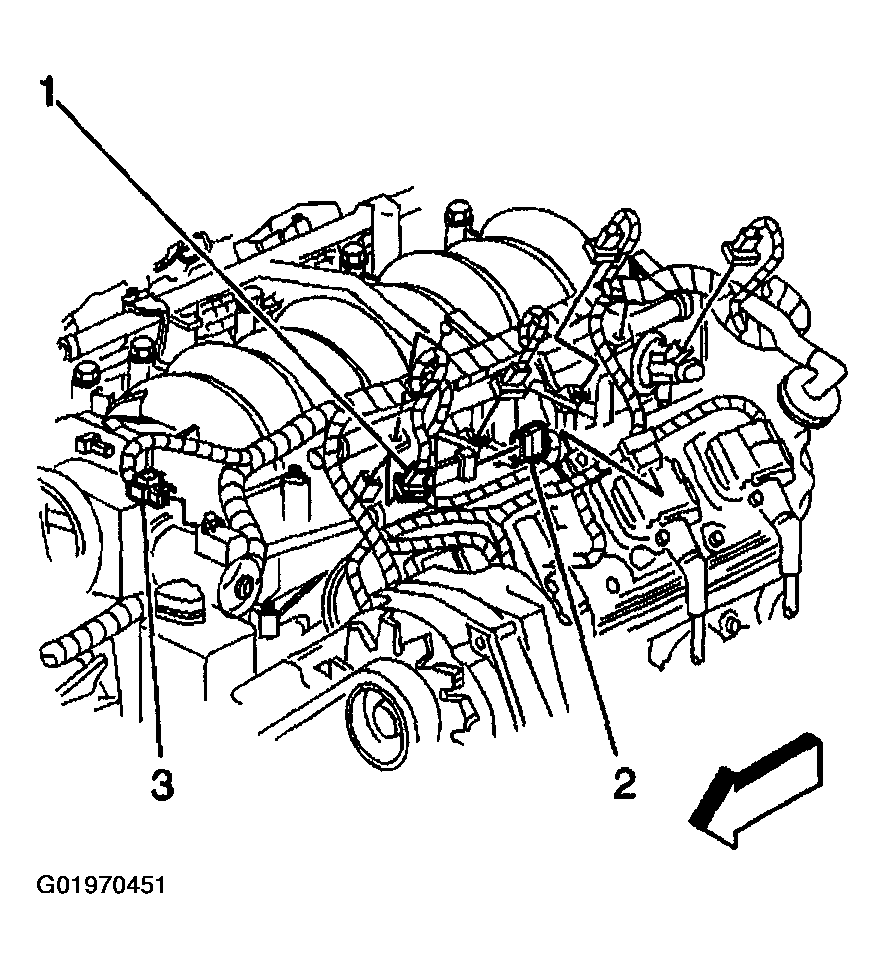

Fig 8: Connecting Ignition Coil Wire Harness Main Electrical Connector
Courtesy of GENERAL MOTORS CORP.

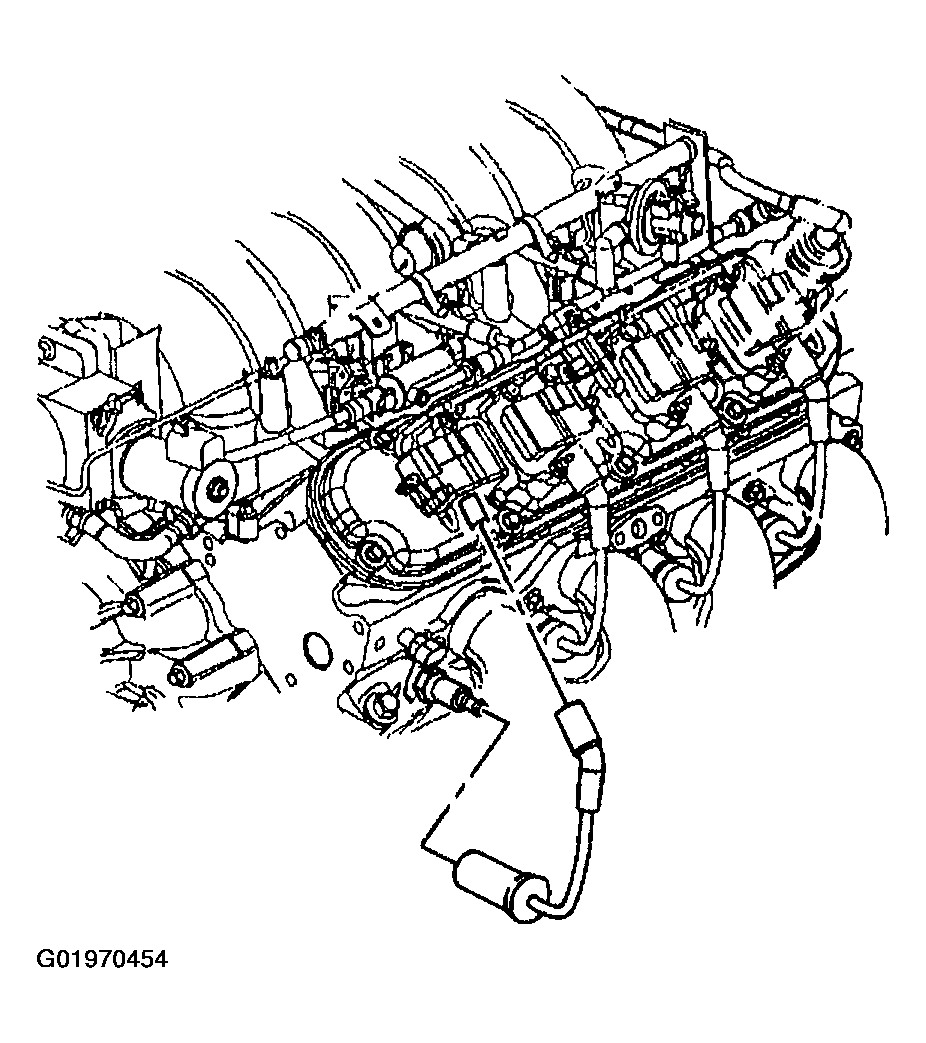

Install the spark plug wires to the ignition coils.
If equipped with the RPO LS1 engine, install the PCV valve pipe to the left rocker cover.

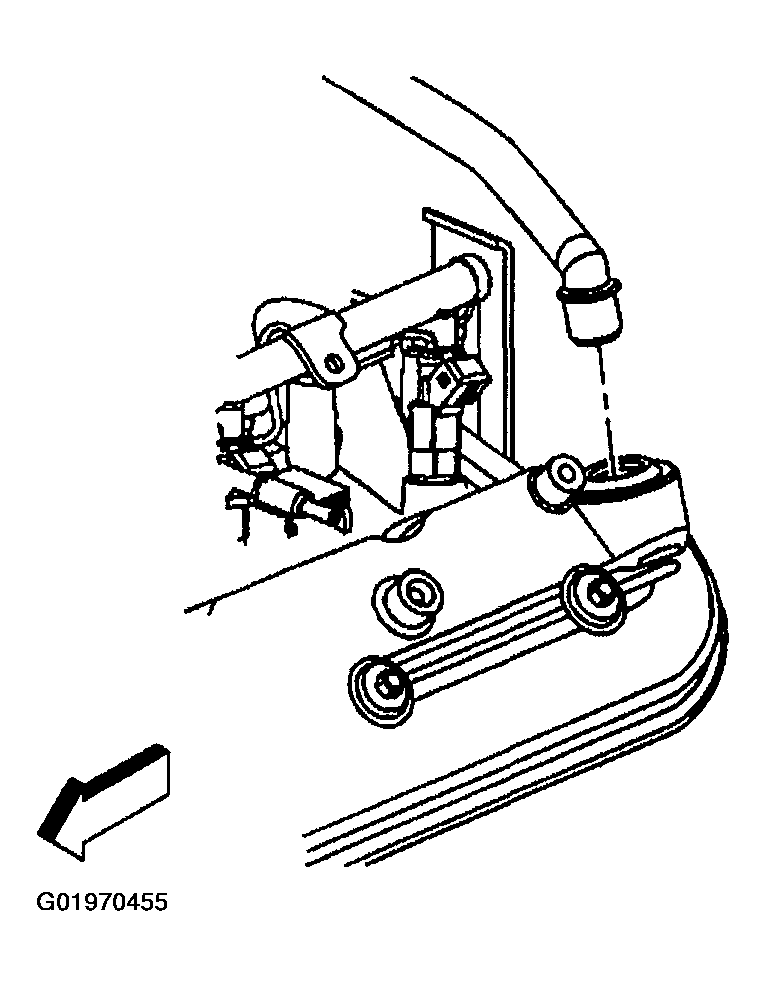

Fig 9: Installing PCV Valve Pipe To Left Rocker Cover
Courtesy of GENERAL MOTORS CORP.
Connect the AIR hose (3) to the check valve.
Install the AIR hose clamp.

Fig 10: Connecting AIR Hose To Check Valve
Courtesy of GENERAL MOTORS CORP.

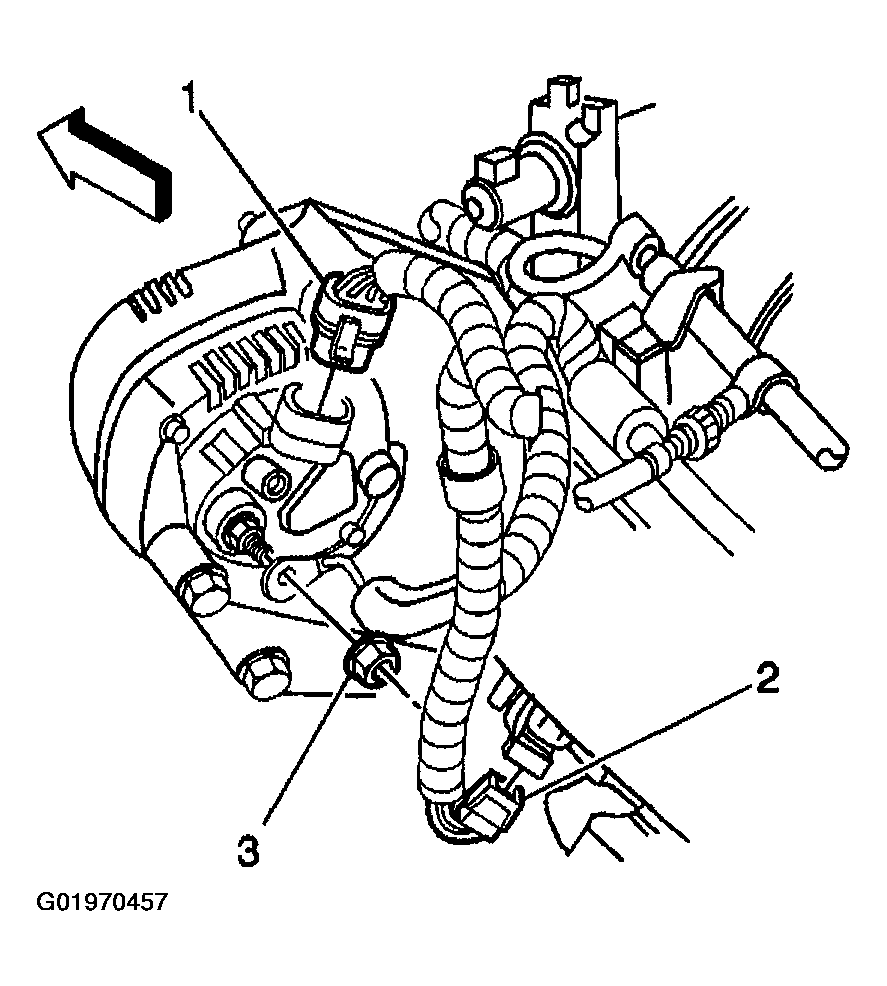

Connect the generator electrical connector (1).

Fig 11: Connecting Generator Electrical Connector
Courtesy of GENERAL MOTORS CORP.
Install the engine wiring harness generator lead and nut (3).
Tighten

Tighten the engine wiring harness generator lead nut to 13 N.m (115 lb in).

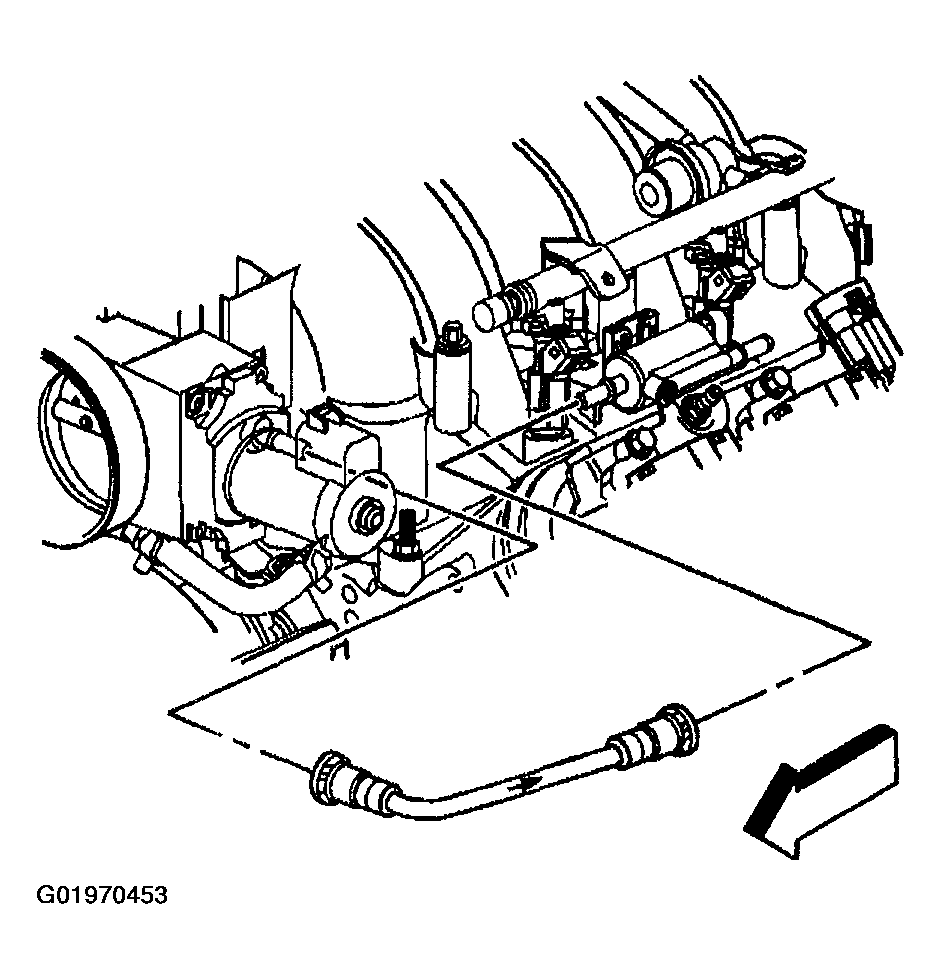

Install the fuel feed hose. Refer to FUEL LINE DISCONNECT FITTINGS .
