Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE .
  1. Install a new gasket, the cover, and bolts.

    Tighten

    Tighten the oil pan cover bolts to 12 N.m (106 lb in).

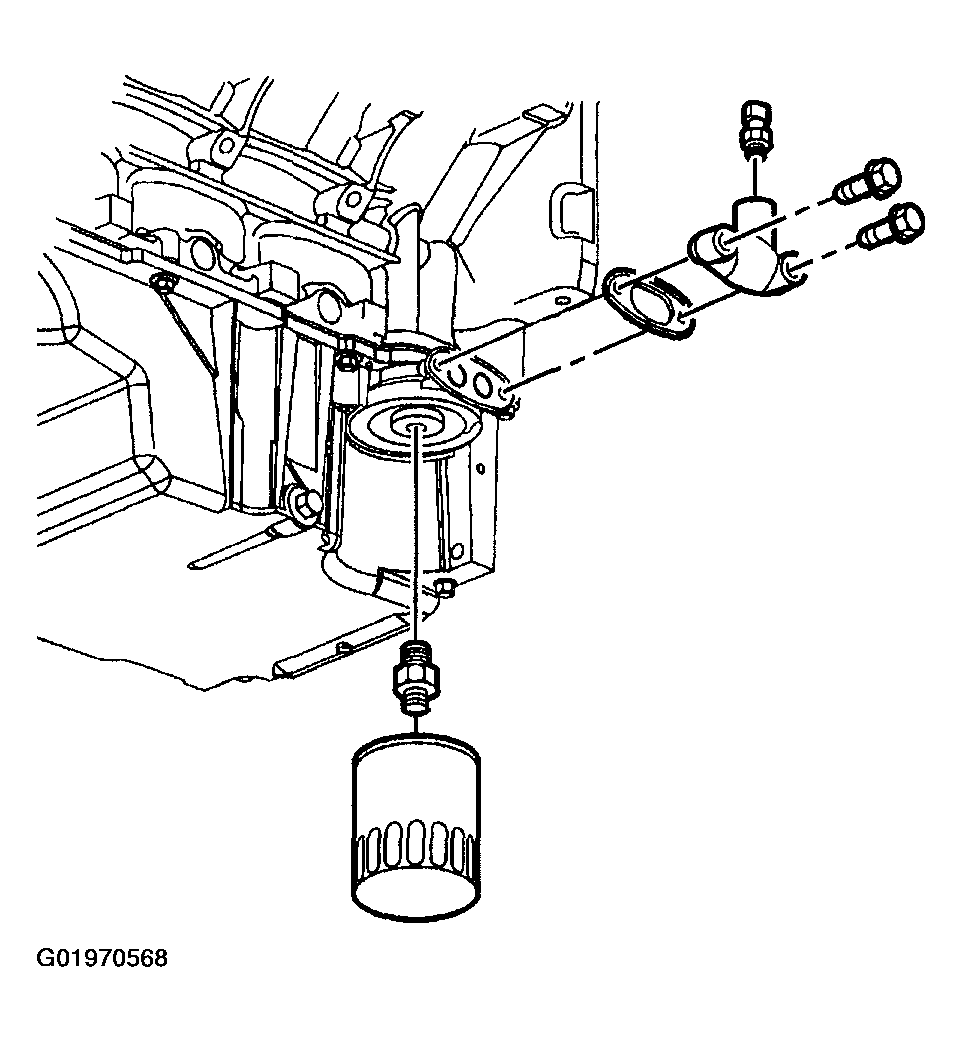

    Fig 1: Installing Oil Pan Cover
    G01970568Courtesy of GENERAL MOTORS CORP.
  2. Install the oil filter.

    Tighten

    Tighten the oil filter to 30 N.m (22 lb ft).

  3. Refill the engine oil.

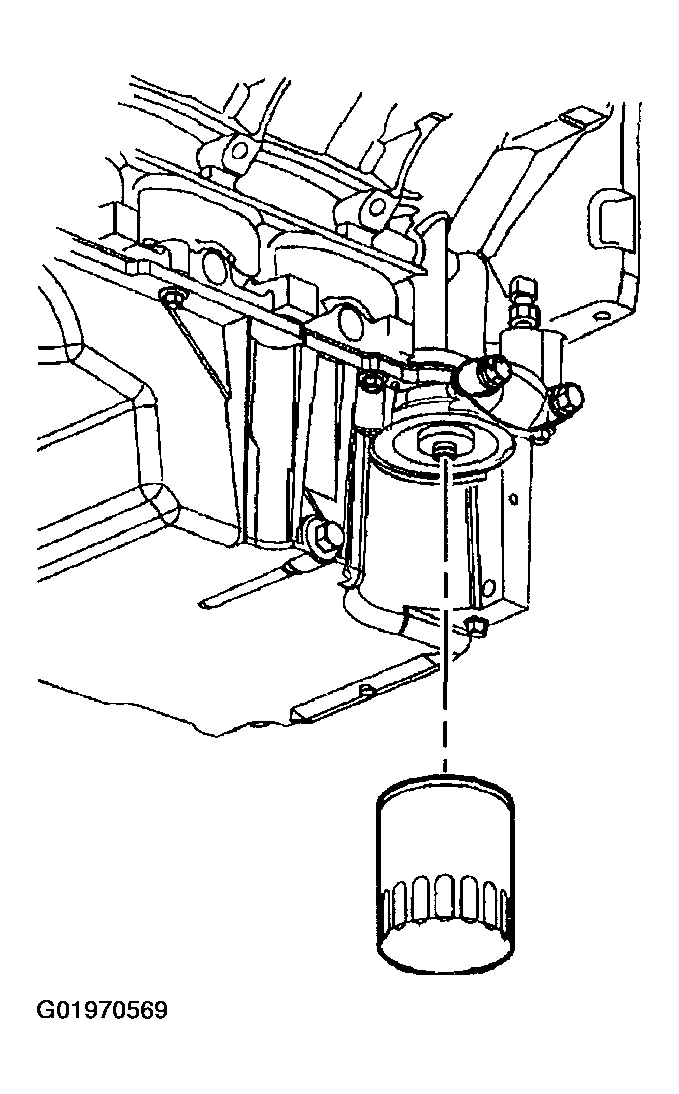

    Fig 2: Installing Oil Filter
    G01970569Courtesy of GENERAL MOTORS CORP.
