Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil level indicator.

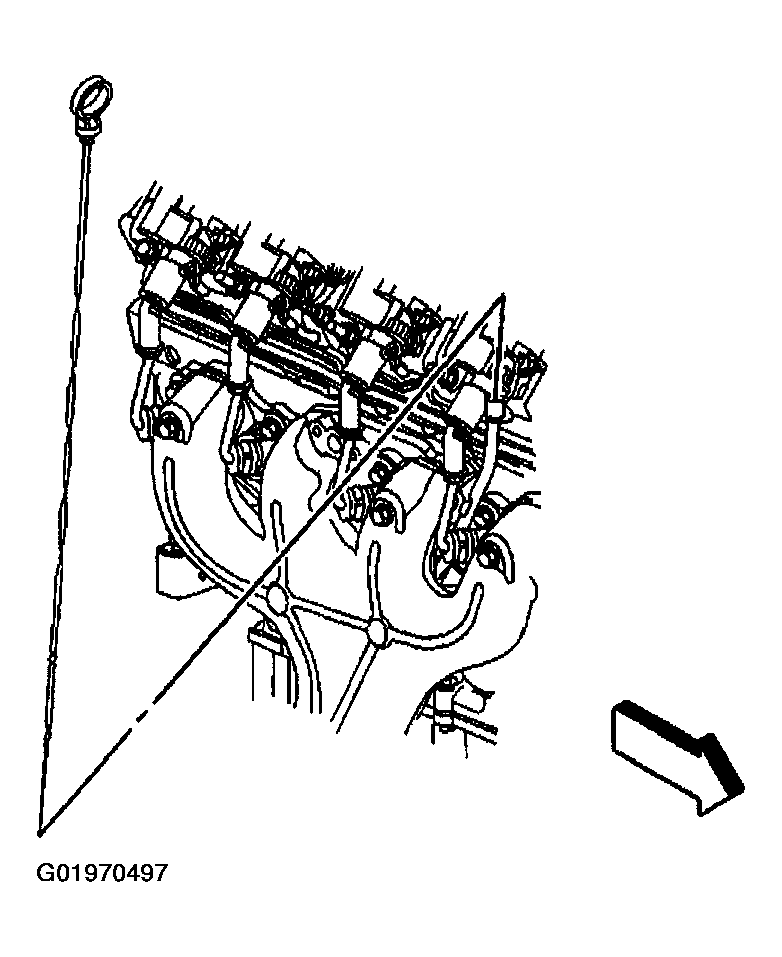

    Fig 1: Removing Oil Level Indicator
    G01970497Courtesy of GENERAL MOTORS CORP.
  2. Remove the oil level indicator tube bolt.
  3. Remove the oil level indicator tube.

    Important:  Inspect the O-ring seal for cuts or damage. The O-ring seal may be reused if not cut or damaged.

  4. Remove the O-ring from the oil level indicator tube, if required.

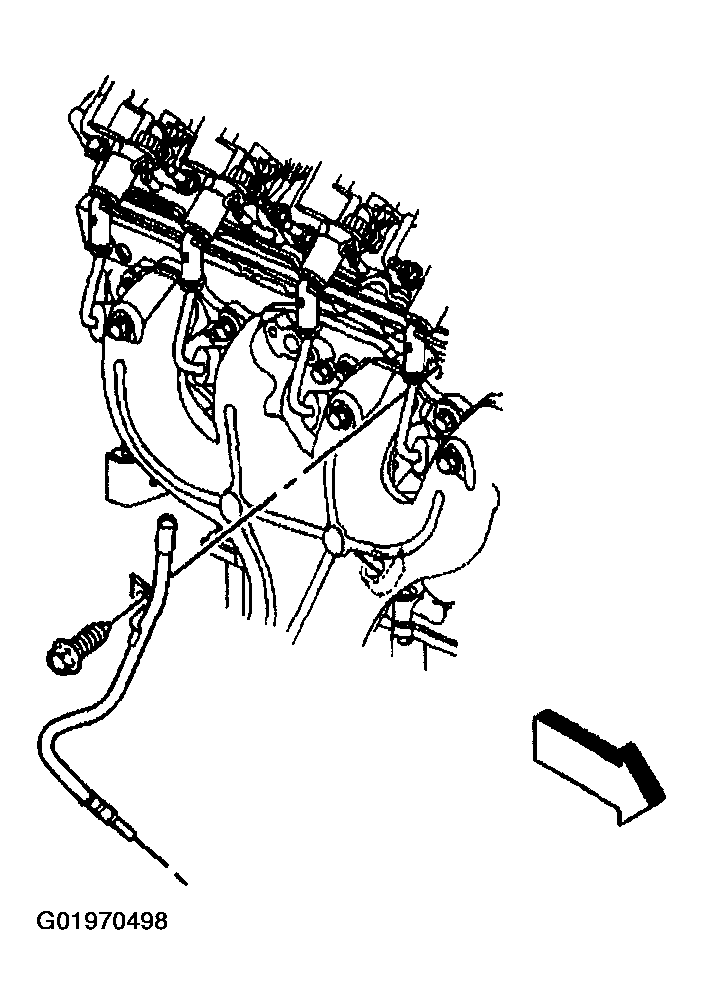

    Fig 2: Removing Oil Level Indicator Tube
    G01970498Courtesy of GENERAL MOTORS CORP.
