Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the O-ring seal with clean engine oil.
  2. Install the oil level indicator tube into position.

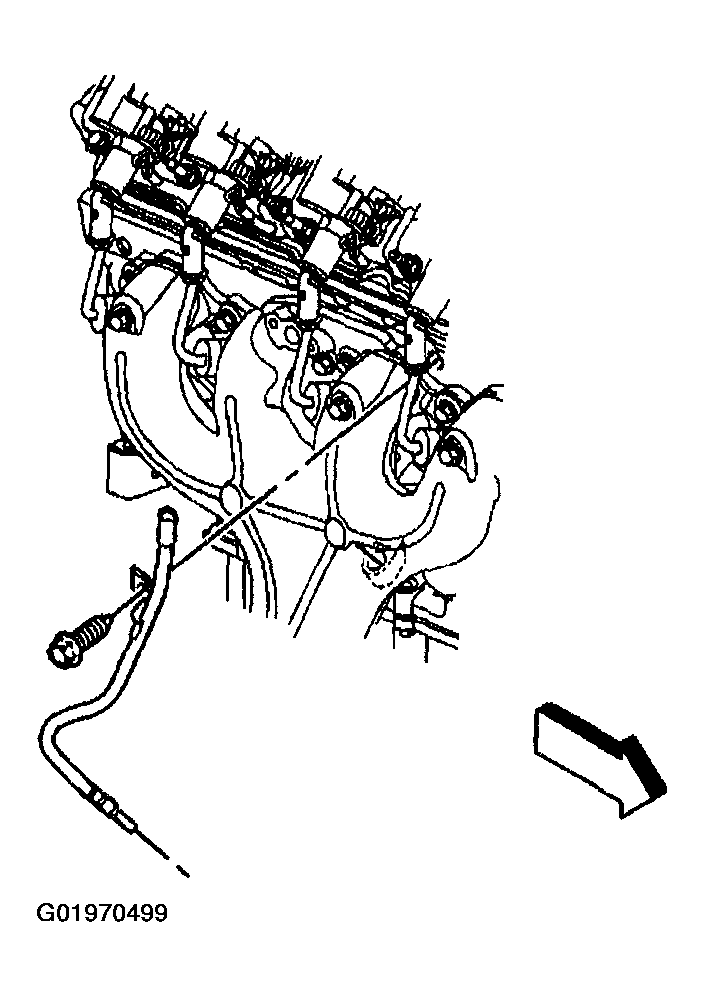

    Fig 1: Installing Oil Level Indicator Tube
    G01970499Courtesy of GENERAL MOTORS CORP.
  3. Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  4. Insert the oil level indicator tube into the engine block until the collar is flush with the block.
  5. Lower the vehicle.
    NOTE: Refer to FASTENER NOTICE .
  6. Install the oil level indicator tube bolt.

    Tighten

    Tighten the oil level indicator tube bolt to 25 N.m (18 lb ft).

  7. Install the oil level indicator.
  8. Check the oil level and add if necessary.

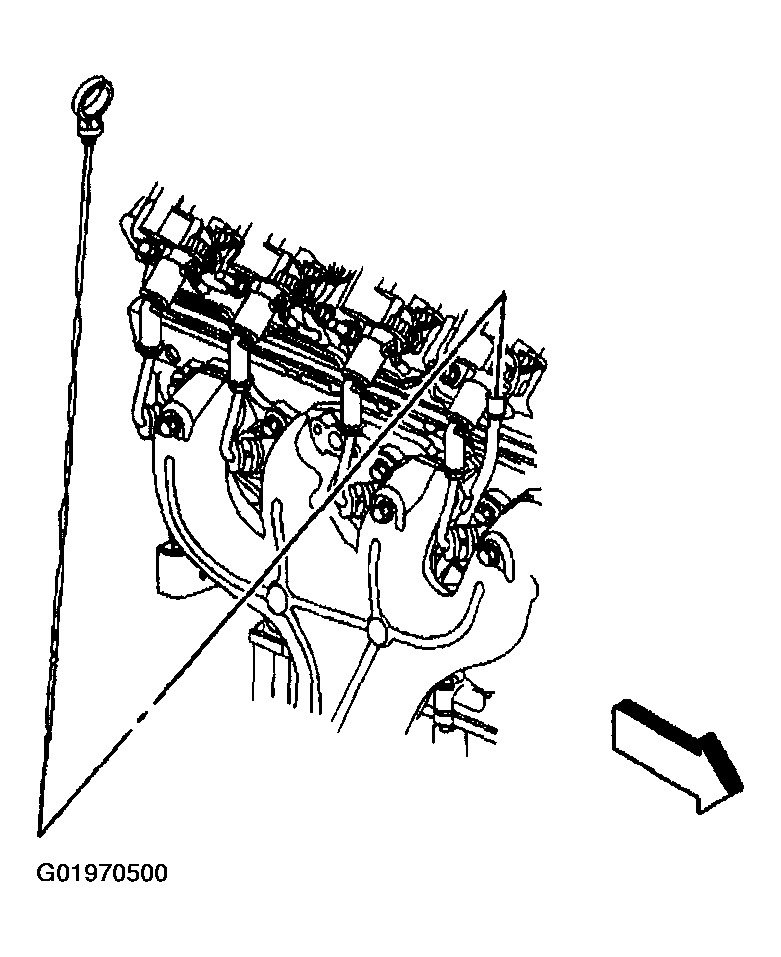

    Fig 2: Installing Oil Level Indicator
    G01970500Courtesy of GENERAL MOTORS CORP.
