Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Remove the engine oil temperature gage sensor.

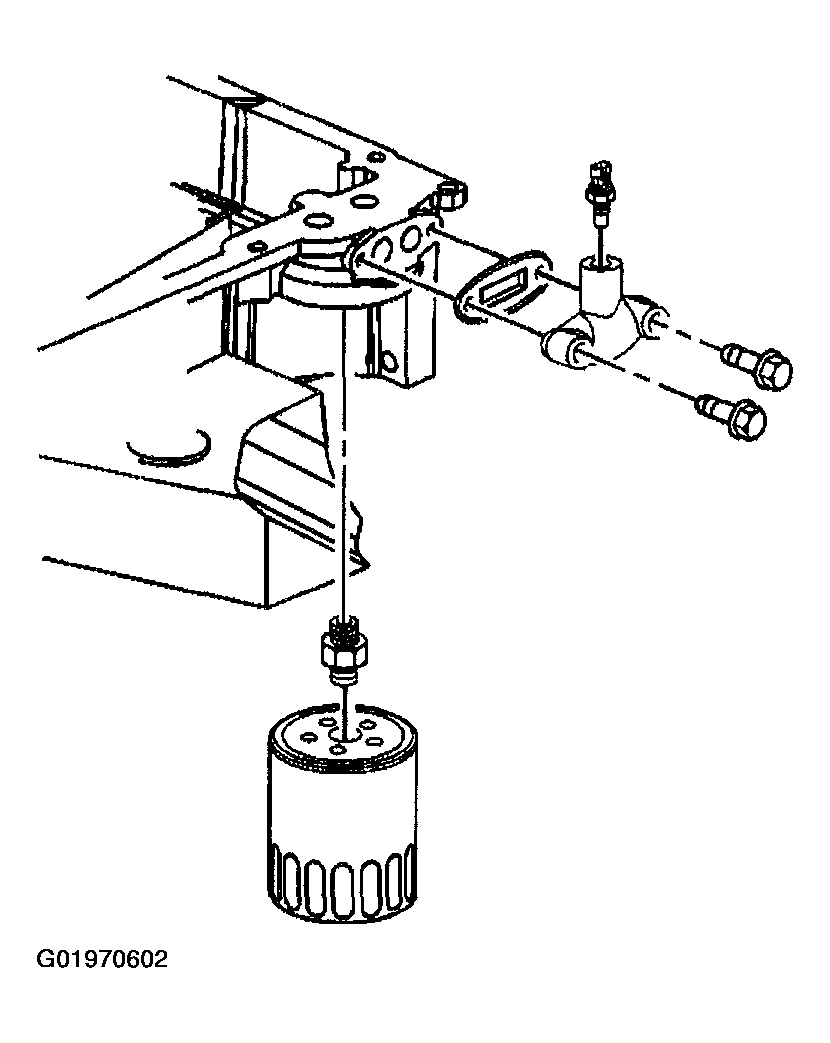

    Fig 1: Removing Engine Oil Temperature Gage Sensor
    G01970602Courtesy of GENERAL MOTORS CORP.
