Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE .
  1. Install the engine oil temperature gage sensor.

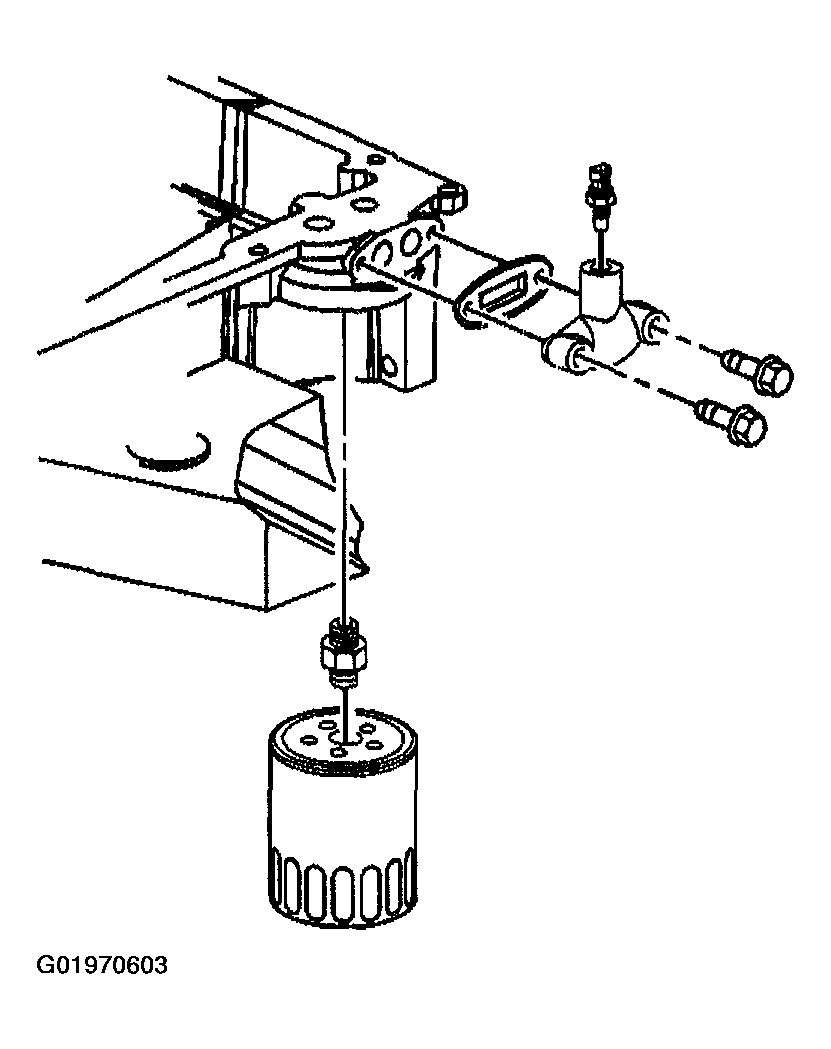

    Fig 1: Installing Engine Oil Temperature Gage Sensor
    G01970603Courtesy of GENERAL MOTORS CORP.

    Tighten

    Tighten the engine oil temperature gage sensor to 20 N.m (15 lb ft).

  2. Lower the vehicle.
